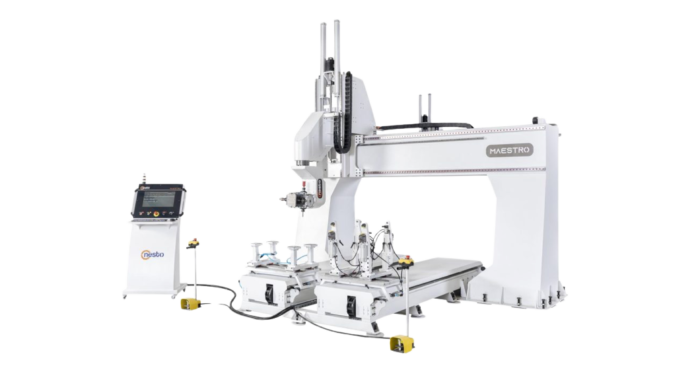

CNC MACHINE NESTO MAESTRO
CNC MACHINE NESTO MAESTRO - Image 2
CNC MACHINE NESTO MAESTRO - Image 3

CNC MACHINE NESTO MAESTRO

Categories: ,

Brand: Nesto

5-axis machining center for tall elements.

Technical features and options

  • Machine Dimensions:
  1. Length: 3944 mm
  2. Width: 2890 mm
  3. Height:  3887 mm

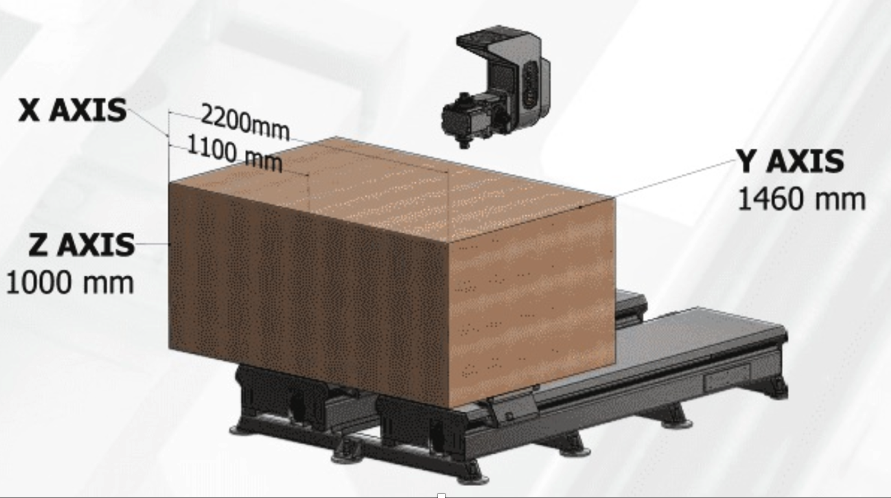

  • Working dimensions:
  1. X:  2200 mm (1100 – pendulum work)
  2. Y: 1460 mm
  3. Z: 1000 mm
  • Control unit TPA
  • Axi motor Y1/Y2: 1.5 kW – rack and pinion
  • Axi motor X: 1.5 kW – rack and pinion
  • Axi motor Z: 1.5 kW – rack and pinion
  • Reducer: liming FE series

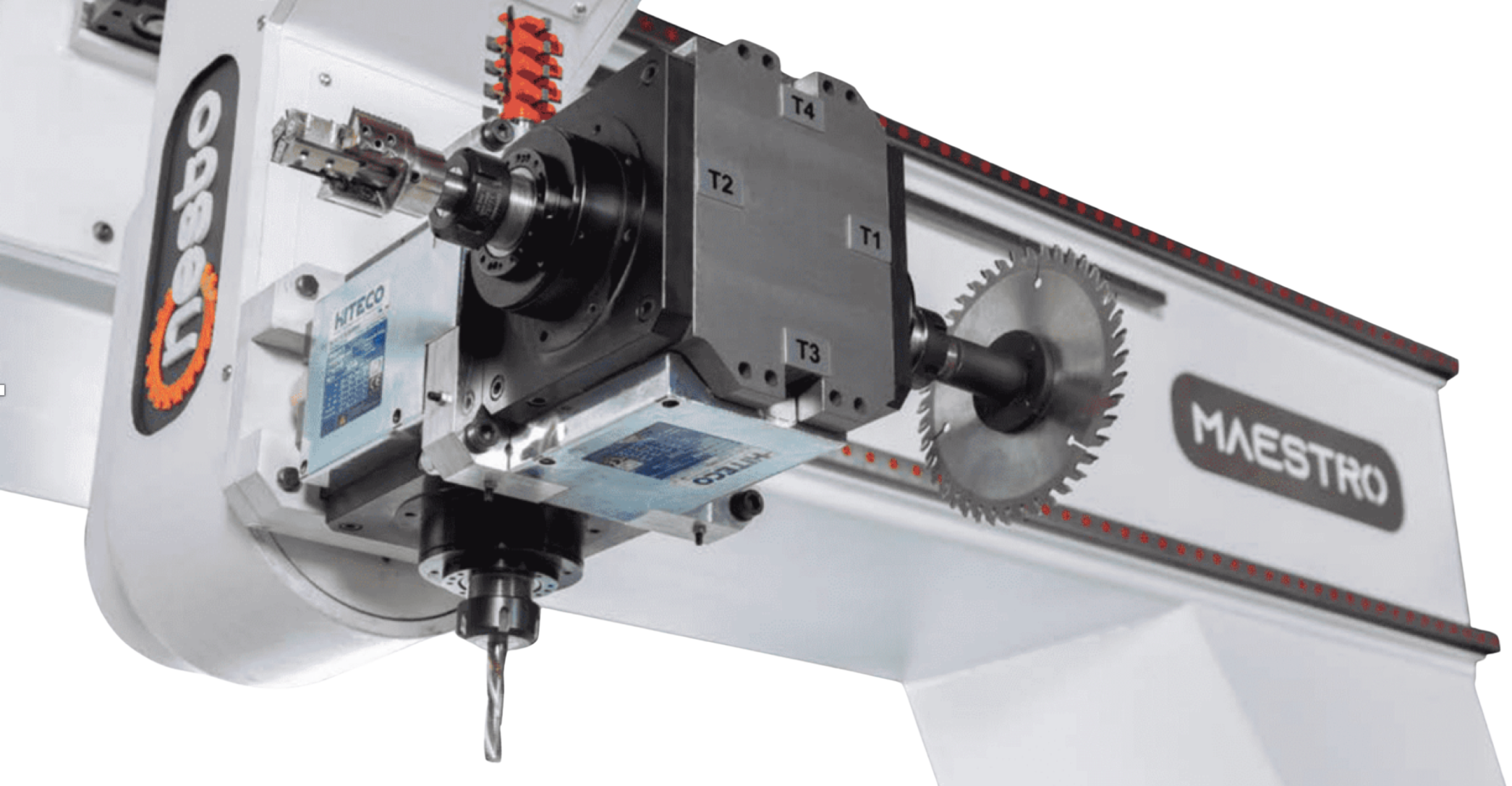

  • Spindle motor: ML-1C 7.5/12 24 ER32 CROSS 2+2 ends
  • Vacuum system: VPS Vacuum 250 m³
  • Lubrication system: ILC Self-lubricating system
  • Power: 31 kW
  • CAD-CAM Software: Pegasus CAD CAM for woodworking Ultimate (Licensed)
  • Optimizer: Pegasus SMC (Smart Machine Control) Wood Optimizer (Licensed)
  • Guides: Schneeberger (Germany)
