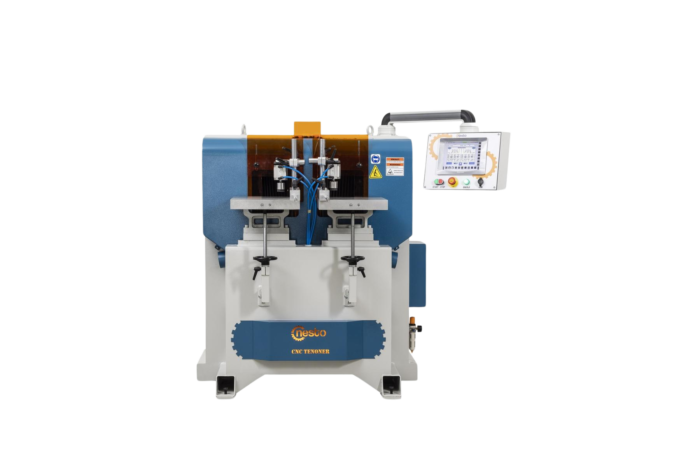

TENONING MACHINE NESTO TENONER
Brand: Nesto
There is an easy-to-use interface so dimension settings are very easy. also it has library and user can save the working plan on the memory of the machine. it can perform different type of tenons at two different working bench so it is providing high amount of output.
Technical features and options
- Maximum length (perpendicular milling): 130 x 100 mm,
- Maximum tenon length (horizontal): 130 mm,
- Maximum tenon length (vertical): 90 mm,
- Tenon height: 0 mm – 50 mm,
- Angle: 0-90 degrees,
- Average production: 700 tenons/h,
- Overall dimensions: 1230 x 1220 mm x 1520 mm,
- Weight: 700 kg,
- Installed power: 5 kW,
- Compressed air: 6 bar.
