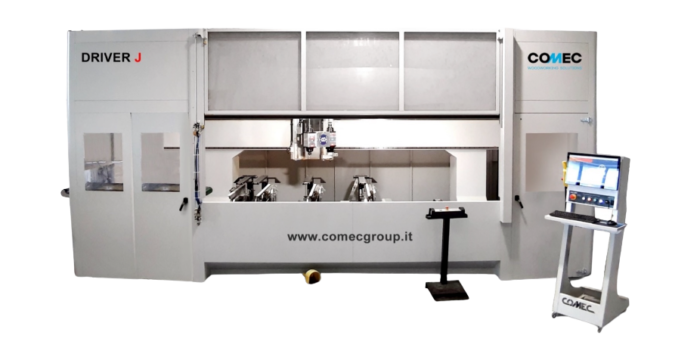

CNC MACHINE COMEC DRIVER J 5-AXIS
Brand: Comec
DRIVER J is the innovative CNC working centre with 5 interpolated axes and a portal structure with a multi-spindle operating head, dedicated to the processing of door jambs. The solution designed to perform cutting, milling and drilling operations on simple or complex shaped jambs in a single positioning.
Technical features and options
- Working lengths of axes:
- Axis X = 3100 mm,
- Axis Z = 500 mm,
- Axis Y = 425 mm,
- Max head movement speed: 70 m/min,
- 1 piece + 1 piece electric spindle with H configuration system,
- Tool positions 1 and 2,
- Electric spindle for milling with dual output,
- Motor 7.0 kW,
- 12,000-18,000 rpm (frequency inverter adjustment),
- Counter-rotating tools,
- Tool connection with ER 32 clamping holder,
- Two-shaft electric spindle for cutting/drilling with dual output,
- Tool positions: 3, 4, and 5,
- 4,000-6,000 rpm (frequency inverter adjustment),
- Cutting disc: Ø 250 mm,
- Drill spindle: Tool connection Ø 10 mm,
- Drilling head with 2 outputs at a 180° angle,
- Tool connection Ø 10 mm,
- Engraving mill Ø 60 mm.
