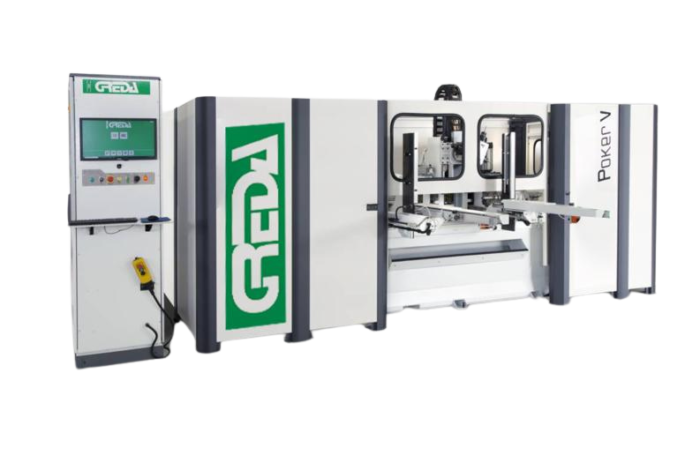

TURNING CENTER GREDA POKER V5
Brand: Greda
POKER V5 is a CNC-machining center with 5 interpolating axes engineered especially to process routing and turning operations of solid wood elements. Besides turning, POKER V5 executes milling, shaping, sanding and carving operation on a work piece at reduced working times, thanks to the jointly processing of the cutting and the sanding units. Automatic- piece loading and unloading system
Technical features and options
1. General Data:
- X-Axis Travel: 2200 mm,
- Y/V-Axis Travel: 350 mm,
- Z-Axis Travel: 550 mm,
- Linear Speed: 100 m/min,
- Compressed Air Consumption: 30 NI/min,
- Installed Power: 48 kW,
- Air Pressure: 6 bar,
- Voltage: 380 Volt, 3/50 Hz,
- Net Weight: 3500 kg,
- Machine Dimensions: 4000×3500 mm,
- Cabin Dimensions (Optional): 4700×3700 mm.
2. Main CNC Functions:
- Simultaneous management of 6 axes + spindle with linear, circular, and helical interpolation,
- Simultaneous programming with the working process,
- Tool range control through graphical visualization on the monitor,
- Radius compensation and tool length adjustment in the working area,
- Rotational function (profile rotation),
- Automatic speed adjustment at the edge,
- Mirror function (symmetrical execution),
- Scale factor function.
