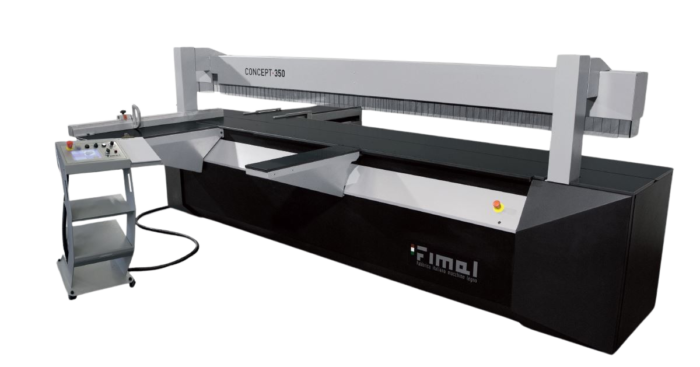

ELECTRONIC CIRCURAL SAW FIMAL CONCEPT 350

• Supporting table amongst the coluums mm 2650-3250-3850-770
• Squaring length mm 2500-3200-3800
• Blade diameter mm 300/350
• Blade hole mm 30
• Blade projection D.350(300) to 90 ° mm 100 (75)
• Blade projection D350 (300) to 45 ° mm 67(45)
• Speed blade rotation g/min 4000
• Speed blade carriage feed m/min 4-40
• Power blade motor Hp (Kw) 7,5 (5,5)
• Diameter suction inlet inferior and superior mm 120/100

Standard equipment :

• CE norms
• Pressor full lenght with straps anti instrusion front and rear to the blade
• Fixed front table 1000×510 mm with phenolic coating complete with squaring guide till 2500 mm with sliding stop
• Fixed rear table 1000×400 mm with phenolic coating with guide with double rolling electronic stop with width till 1300mm . Distance between the rear stops 400mm
• Sliding table 1000×500 mm with phenolic coating positioned both front and rear
• Photocell to read the length of the panel automatic adjustment of the blade carriage stroke
• Mechanical adjustment of the scoring’s depth with mechanical readout
• Control Panel on a mobile cart which includes:
  – Programmer with manual, semi-automatic and automatic mode
  – 250 Programs preset for management of the rear guide and of the tilt blade
  – Digital readout for the visualization of the measurement of the rear guide
  – Digital readout for the visualization of the measurement of the tilting blade
  – Digital readout for the visualization of the blade height (Optional)
  – Numerical membrane keyboard fro programming.
  – Direct starting button blade motor
  – Three positions selector for cut with scoring, cut without scoring and only scoring
  – Axis positioning button
  – Start work cycle button
  – Potentiometer for speed adjustment of blade carriage speed regulation

Structure of the 2.0 machine body, including:

• Reinforced fixed front table and squaring fence with new locking system and micrometric adjustment
• Fixed front table with 2 reference supports with locking through 2 stud bolts
• Dust evacuation slot between fixed front table and squaring fence
• Back extension of the squaring fence, increased to 190 mm
• Hinged opening door on top of the machine for inspection and cleaning
