BAND SAW SOCOMEC SN900

Categories: ,

Brand: Socomec

Socomec band saw for wood cutting. Machine with 560 mm cutting height.

Technical features and options

  • Engine power 7.5 (5.5) HP (KW)
  • Cast iron flywheels 900 mm Ø
  • Flywheel width 50 mm
  • Cutting width 885 mm
  • Maximum cutting height 560 mm
  • Blade width 10 ÷ 55 mm
  • Blade speed 25 m/sec
  • Overall dimensions of the cast iron table 1130 X 800 mm
  • Net weight 730 kg

Standard equipment meeting the requirements and ce standards:

  • 3-phase motor

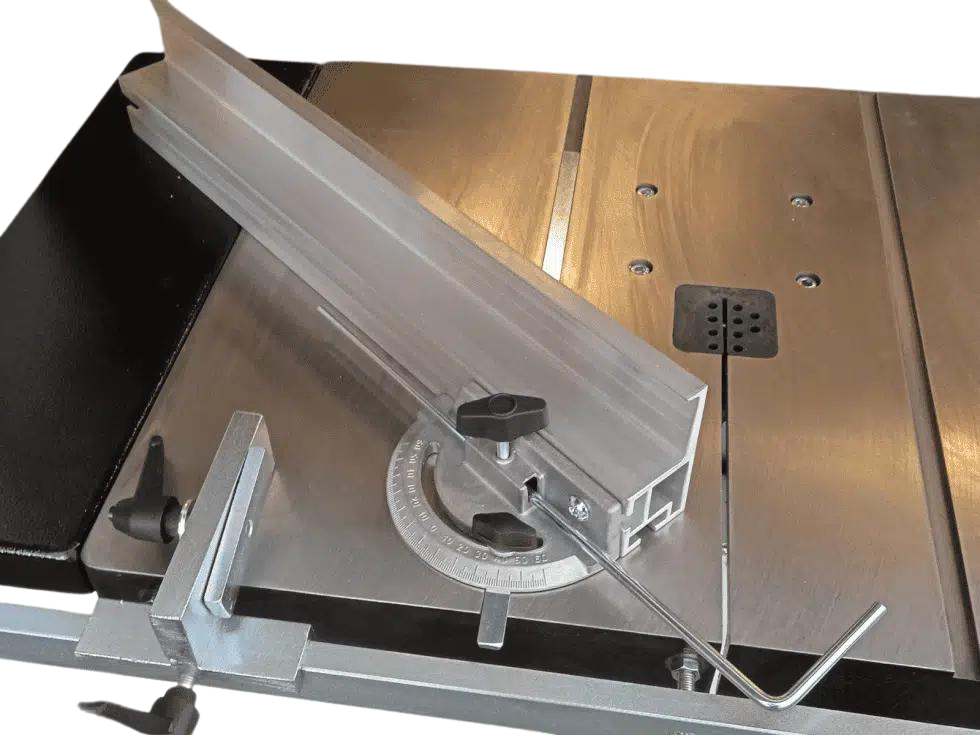

  • Cast iron tilting table 0° ÷ 20°
  • Saw blade
  • Adjustment of the upper guide
  • Electrical system with overload protection
  • Operating instructions with keys
  • Electrical installation and safety devices in accordance with applicable standards
  • Self-braking electronics
  • Rack and pinion upper blade guide
  • 2 suction hoods Ø 120 mm
  • Manual delta/star switch
