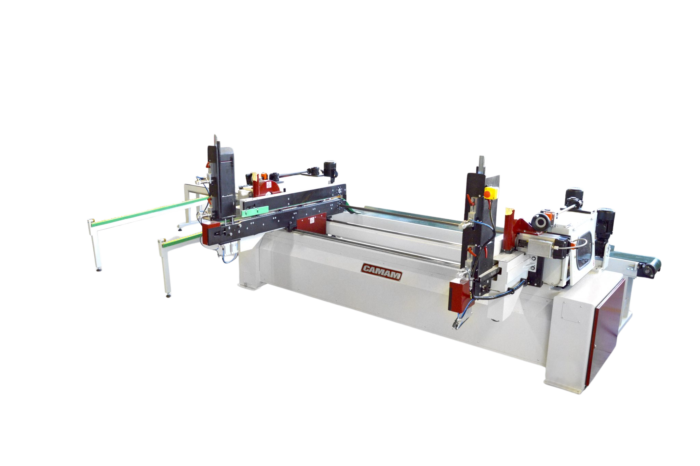

DOUBLE MOULDER/CHAMFERING MACHINE CAMAM FIS 4C 2UT 1500 CA

Shoulder and Adjustable Components:

• N°1 fixed shoulder
• N°1 mobile shoulder, adjustable on linear bearing slides
• Pneumatic locking/unlocking mechanism controlled by a button
• Measurement indication via digital display

Vertical Storage Unit:

• Adjustable vertical storage unit for pieces
• Pneumatic device for piece loading

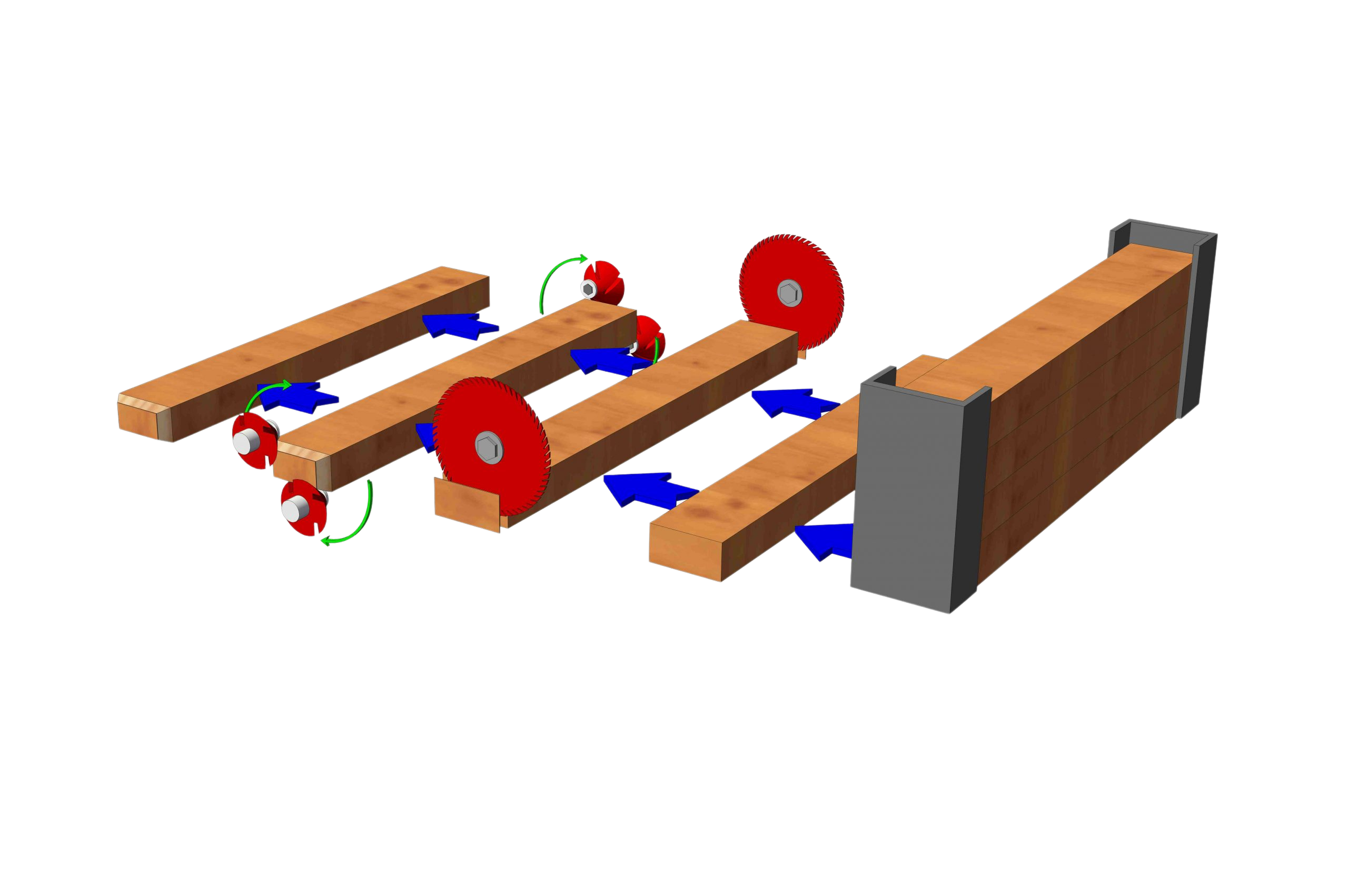

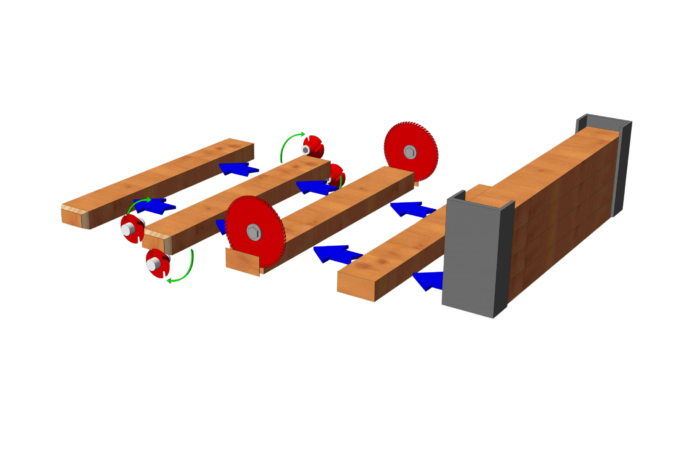

Piece Advancement System:

• N°1 + N°1 lower motorized chains with fixed pushing devices.
• N°1 + N°1 upper motorized belts with pressing devices.
• Both upper and lower systems synchronized to the machine cycle.

Speed Control:

• Speed adjustable via inverter
• Motors: 0.37 kW

Cutting Units:

• N°1 + N°1 cutting units with blades (Ø 300 mm)
• Motor power: 2.6 kW / 2800 rpm

Milling System:

• N°1 + N°1 electro-spindles on each side
• Motor power: 0.33 kW / 12,000 rpm
• Milling groups equipped with Teflon copying rings
• Holding shaft diameter: Ø 16 mm

Piece Processing Capabilities:

• Length: Min. 250 mm / Max. 1500 mm
• Width: Min. 20 mm / Max. 100 mm
• Thickness: Min. 10 mm / Max. 70 mm

Electrical Specifications:

• Voltage: 400 V
• Frequency: 50 Hz
