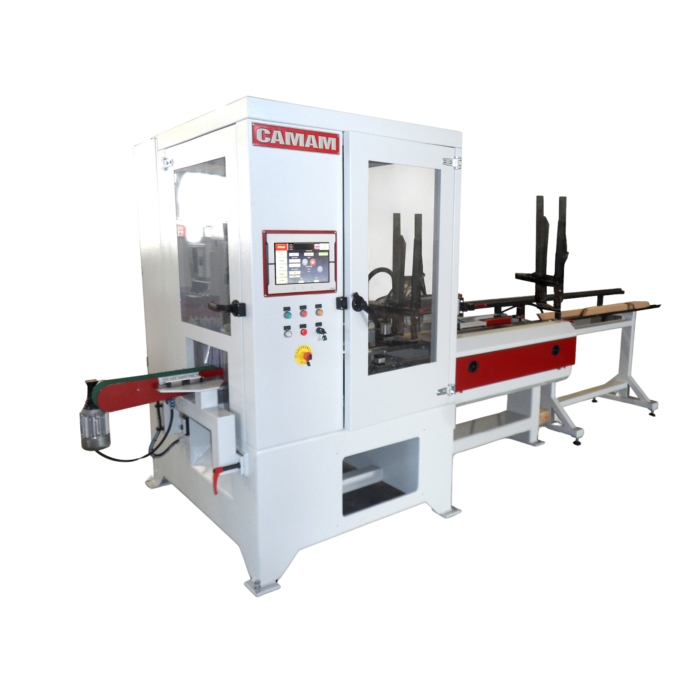

ANGULAR CUTTING SAW CAMAM TAC CNX SPECIAL VERSION “PARQUET”

• Length min max mm 1 – 1050 (can be increased by programming movement in more steps)
• Width min/max at 90°mm 10 – 250 min/max at 45° mm 10 – 240
• Thickness min/max mm 4 (stacked)– 60
• Productivity: 1 cut each 3/5 seconds
• In compliance with CE safety rules
• Volt 400/50 Hz

Main structure:

• Heavy duty mono-bloc frame of electro-welded steel

Automatic loader:

• Automatic loading system with vertical rods magazine, max loadable rods length 1300
• Loading with self-centering pliers
• Automatic step by step advancement movement of the rods controlled by NC on X axis
• NC programmable run of loading carriage from 1 to 1050 mm (for higher lengths the automatic selfcentering plier carries out “pick up” movements of the pieces)
• Pieces discharging motorized belt L=600×75 motor Kw 0,33

Vertical cutting unit:

• 1 vertical cutting unit on square rail bearings, activated by pneumatic cylinder
• Blade Ø 500, motor kW 3.0 / 2.900 rpm
• Automatic rotation of the cutting unit on vertical plane controlled by NC, cutting range -60°/+60°
• Each cut is programmable on independent angle
• Pneumatic piece locking device on each side of the blade
• Protection and suction cowling with nr. 2 dust intake openings Ø 80mm

Control unit:

•  12’’ touch screen control panel
• Software dedicated to NC with easy and intuitive operator interface
• CAD programming and rod visual, integrated to the Software

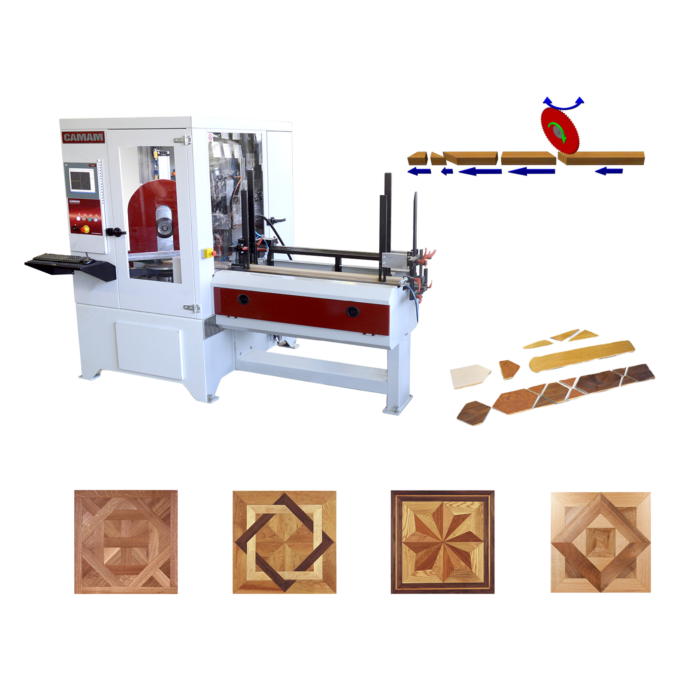

• Special “Parquet” working macros with possibility of “arrow shaped double cut”

Safety devices:

• Total protection of the working area with cabin, interlocked doors with security microswitches and inspection windows
• 1 suction opening in the lower area Ø 120mm

Optionals:

• Rods vertical magazine with length capacity increased up to mm 3.000
• Discharge device with mobile arm and suction cup for very small elements
