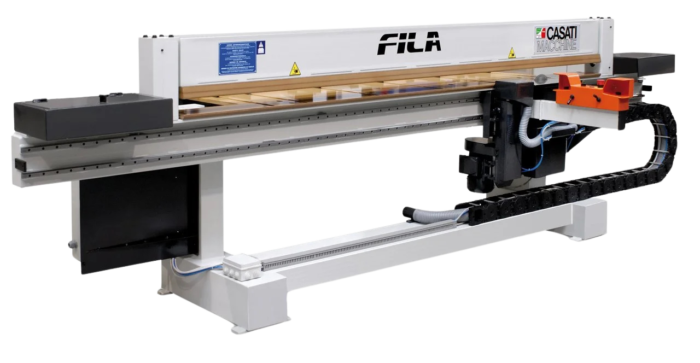

CIRCULAR SAW CASATI FILA 31
Brand: Casati
Cutting and trimming machine for veneer packs, sturdy electro-welded structure, high rigidity under bending and torsion stress, reduced overall wide dimensions thanks to location inside the lower frame of the motors of the mobile units, safety controls.
Technical features and options
- Usable cutting length: 3100 mm
- Pressure beam opening: 65 mm
- Electrical power: Saw motor 2.2 kW
- Max cutting height: 45 mm
- Compressed air pressure: 6-8 bar
Machine equipment:
- Circular saw unit 2.2 kW (3 HP), pneumatic height adjustment, mechanical axial adjustment (0-3mm)
- Double-hardened and ground rails with linear guides on ball bearings, ensuring precise linear movement of all carriages
- Control panel with switches for selecting main operating modes
- Pressure beam with two pneumatic cylinders
- Chain for securing cables
- Dust extraction system
- HM circular saw blade, diameter 180 mm
- Filter with pressure regulator and lubricator on the compressed air supply
- Service tools
- Safety devices
