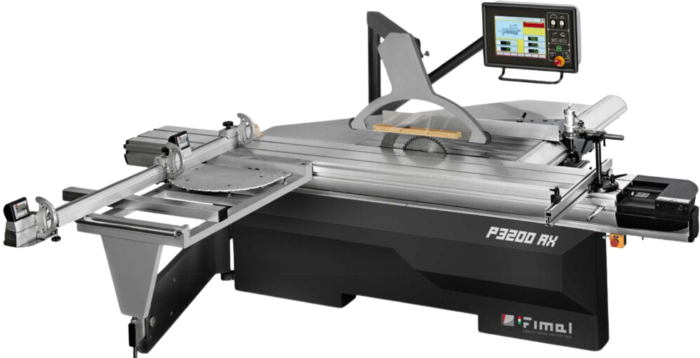

SLIDING TABLE SAW FIMAL P3200-08AX
Brand: Fimal
Fimal P3200-08AX Italian sliding table circular saw. Machine fully controlled automatically: saw extension and inclination and parallel guide setting. Saw controlled from a touch screen control panel.
Technical features and options
• Work table dimensions/height 1030×380/870 mm
• Carriage dimensions 3200×400 mm
• Max. working range of the scoring unit 3420 mm
• Cutting along the width on the parallel guide 1300 mm
• Blade tilt range 0º – 45º
• Max. cutting height with saw ø500 mm 177 mm
• Max. cutting height with saw at 45 º (ø500mm) 133 mm
• Saw speeds 3000/3600/4200 rpm
• Dust extraction connection in the base of the machine ø 120 mm
• Main motor power 7.5 kW. 50hz
• Scoring motor power 0.55 kW
• Sound level according to EN 27960 84.4-86.3 db(a)
Equipment:
- Anodized aluminum alloy carriage running on precision adjustable guides made of hardened steel

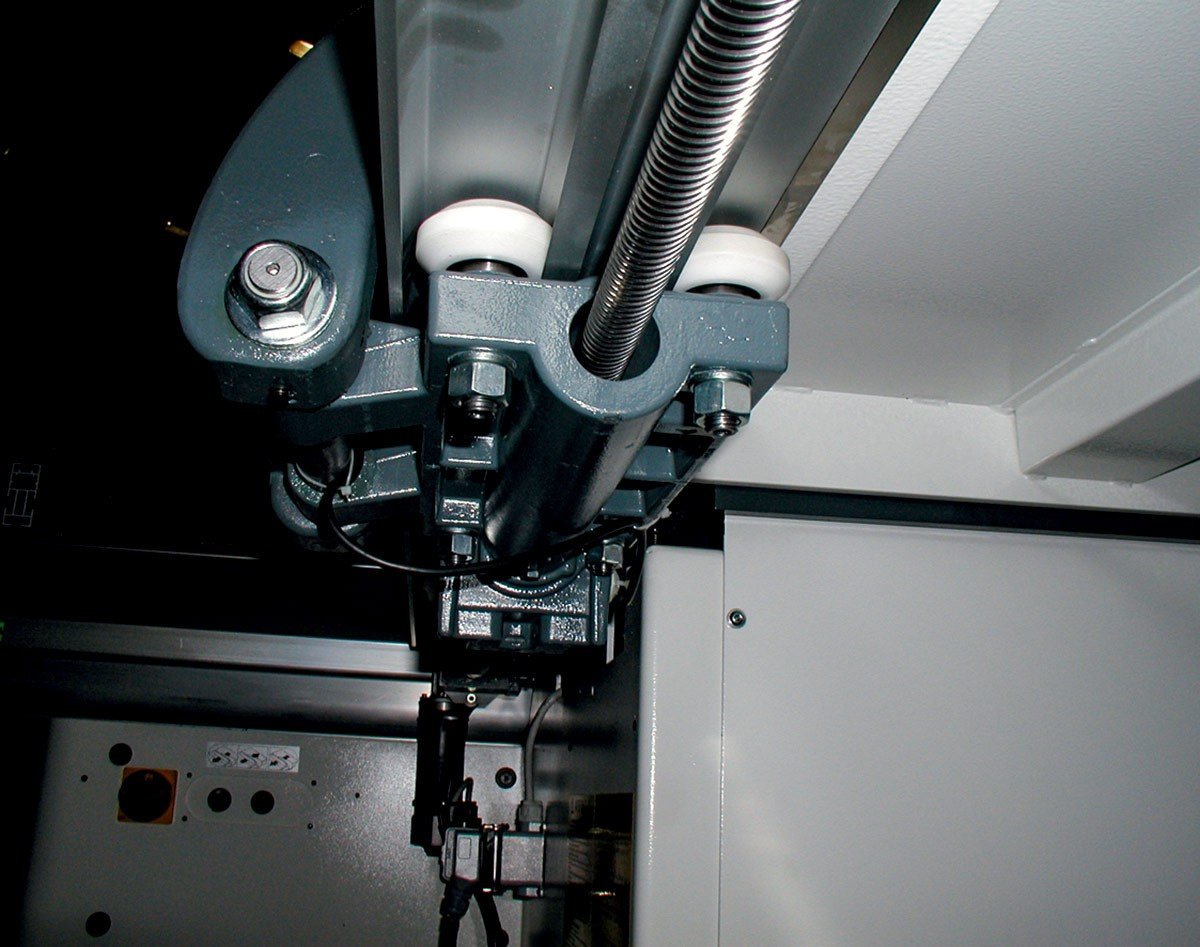

- Drive for raising and lowering the saw + for tilting the saw + guide rail controlled by the PA-100 programming unit with 240×128 pixel LCD display (up to 800 cycles can be stored for each axis)
- Electric, horizontal pulse adjustment of the scorer with display of offset to the saw blade
- Electrical, vertical adjustment of the scorer, display of the value of the scorer’s protrusion relative to the work table
- Locking the carriage in any position
- Anodized aluminum profiles
- Suspended control panel
- Removable guard on the main and scoring saw blades

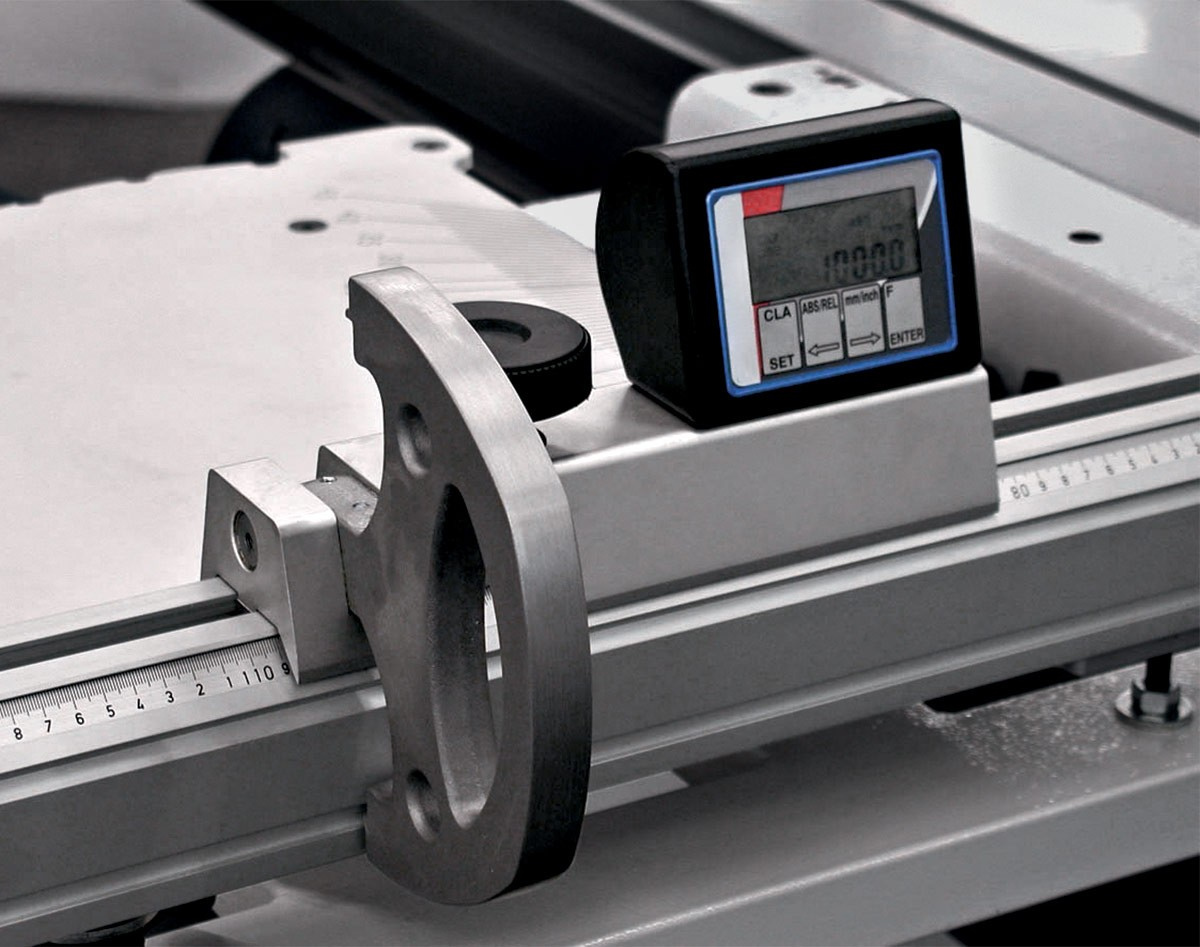

- Miter stop on additional table with 2 stops and digital indicator + 1 standard stop
- Quick lock at 90º and tilt in 5º and 22.5º increments
- Quick positioning of the guide at 90º every 5º and 22.5º, the position of the stops remains unchanged relative to the saw
- Angle stop with profile and stop
- Eccentric clamping of elements
- Micrometric adjustment of the guide stop
- Side extension of the work table
- Overload protection
- Safety button
- Speed change, access from the workbench
- Handle to push the trolley
Characteristics in compliance with CE:
- Safety micro-switch on the door
- Key lockable main switch
- Electro-magnetic brake
- Saw speed reading
Additionally included:
P02
Touch screen, programming in 3 axes:
- Saw guide, cross cut guide, saw lift and tilt controlled by 3 axis electronic programmer
- Control panel with 15” color touchscreen monitor, Windows operating system
- Ability to record 2500 cycles for each axis
- 2 USB ports, 1 serial port and Ethernet
