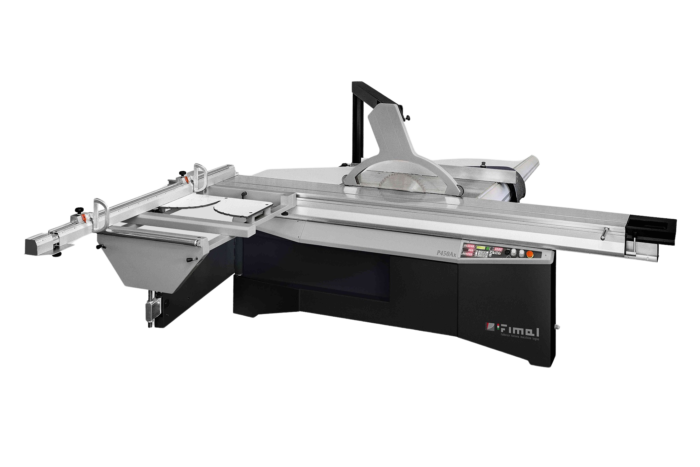

SLIDING TABLE SAW FIMAL P450NX
Brand: Fimal
The P450 series format saw from Italian manufacturer Fimal is characterised by its high stability and lack of vibration. The P450NX model is partly automatically controlled: saw extension and inclination. The guide is adjusted manually.
Technical features and options
- Worktable Dimensions 1030X680 Mm
- Carriage Dimensions 3200X350 Mm
- Max Squaring Capacity With Scoring Unit 3350 Mm
- Cutting Width On Parallel Fence 1300 Mm
- Tilting Blade Range 0°-45°
- Max Cutting Height With Blade D.450 Mm 155 Mm
- Max Cutting Height W. Blade At 45° (D.450 Mm) 110 Mm
- Max Saw Blade Diameter/Hole 450/30 Mm
- Saw Rotation Speeds 3000/3600/4200 Rpm
- Dust Extraction Outlet On Machine Bed D.120 Mm
- Main Motor Power 5.5Kw (7.5Hp) 50Hz
- Noise Level Acc. En27960 Standards 84.4-86.3 Db(A)
- Scoring Motor Power 0.55Kw (0.75Hp)
- Max Squaring Opening With Stops 3600 Mm Standard Equipment
- Carriage In Anodized Aluminium Alloy Sliding On High
- Precision Adjustable Guides In Hardened And Ground Steel
- Excluded Blade Saw Guard
- Mitre Gauge On Added Table With 90° Quick
- Degree Tilting Scale Plus Reference At 10° 15° 22.5° 30° 45°
- Quick Fence Positioning At 90° 10° 15° 22,5° 30° 45°
- Keeping Unchanged The Stops Position In Reference To The Blade
- Anodised Aluminium Profiles
- Carriage Locking In Any Position
- Speed Change Accessed From Working Tabl
- Carriage Push Handle -Eccentric Workpiece Clamp
- Motorised Saw Blade Rise
- Motorised Saw Blade Tilting And Electronic Readout
- Electric Scoring Saw Vertical Adjustment With Automatic Activation/Exclusion When Blade Is Switched On/Off
- Electrical Adjustment For Scoring Saw Deviation
