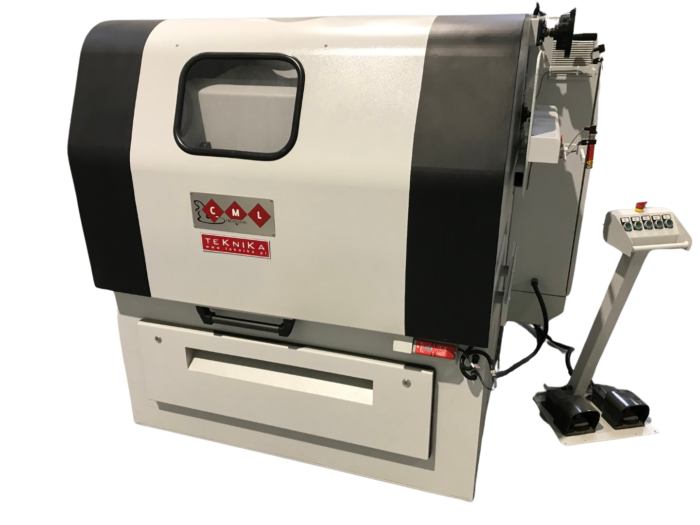

MULTI-RIP SAW CML E350

MULTI-RIP SAW CML E350

Categories: , ,

Brand: CML

A single-spindle multi-saw, a standalone device or for use in a line.

Technical features and options

  • Max cutting thickness: 80mm (for blade diameter 350mm)
  • Max cutting width: 320 mm
  • Max width of board passage: 650 mm
  • Min length of workpieces: 600 mm (400 mm with optional short pieces device)
  • Diameter of fixed saw blades: min/max 300/350 mm, hole diameter 70, 2 pcs. Keyway 20 x 6
  • 4 independent pressure rollers
  • Anti kickback device
  • Feed speed adjustable by inverter: 0-36 m/min
  • Feed belt motor: 1.5 kW
  • Feed belt width: 350 mm
  • Upper dust extraction port: Ø 250 mm, 30 m/s, 5300 m³/h
  • Main motor versions: 22 kW; 30 kW; 37kW
  • Manual oil pump
  • Weight: 2100 kg

Machine dimensions:

  • Length: 173 cm
  • Width: 175 cm
  • Height: 175 cm
