ELECTRONIC CIRCURAL SAW FIMAL CONCEPT 350 PLUS
Brand: Fimal

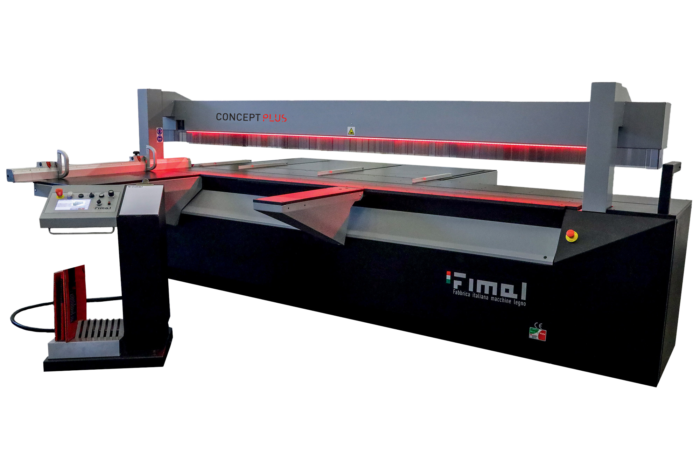

The Concept 350 Plus automatic saw for cutting furniture boards or wood. The machine features intuitive control via a touch panel. It allows for laminate cutting with a scoring knife.
Technical features and options
- Table dimensions: 2650/3250/3850 x 770 mm
- Cutting length: 3200 mm
- Saw blade diameter: 300/350 mm
- Mounting hole diameter: 30 mm
- Cutting height at 90° with 350 (300) blade: 100 (75) mm
- Cutting height at 45° with 350 (300) blade: 67 (45) mm
- Blade rotation speed: 4000 rpm
- Feed speed (with trolley): 4 – 40 m/min
- Motor power: 5.5 kW / 7.5 HP
- Dust extraction pipe diameter (bottom/top): 120/100
Standard equipment:
- CE standards
- Full-length element clamp to prevent chipping of the plate
- Front table 1000×510 mm with phenolic coating, along with a 2500 mm ruler and stopper
- Rear table 1000×400 mm with phenolic coating, bumpers, and a working width up to 1300 mm, electronically adjustable
- Equipped with 2 bumpers spaced 400 mm apart
- Auxiliary sliding table 1000×500 mm with phenolic coating, placed both at the front and rear
- Photoelectric cell reading the panel length, enabling automatic adjustment of the cutting unit’s travel
- Mechanical cutting height adjustment with a mechanical readout

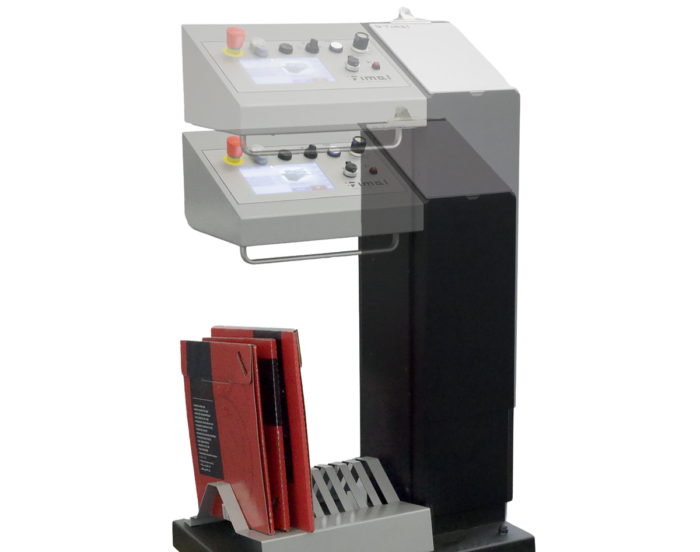

- Control panel on a movable trolley
- “2.0” machine construction
