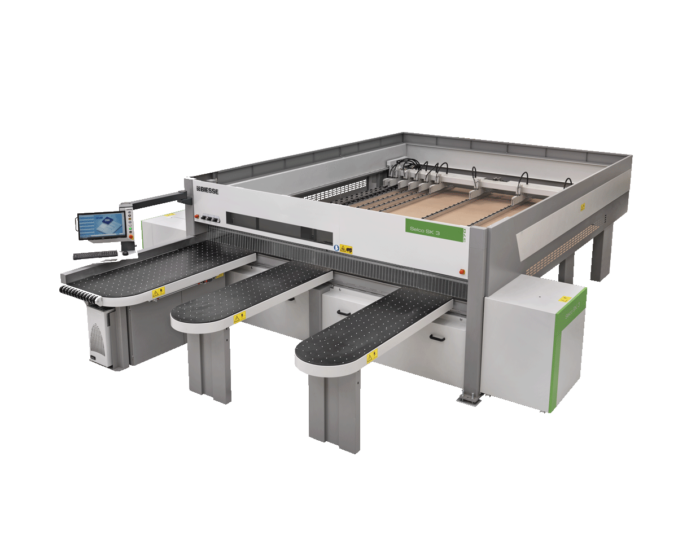

PANEL SAW BIESSE SELCO SEKTOR 350 3200 X 3200

PANEL SAW BIESSE SELCO SEKTOR 350 3200 X 3200

Categories: ,

Brand: Biesse

SELCO SK 3 is the range of panel sizing centre able to satisfy the small and medium companies needs, because this has been specifially designed for single parts production or small series

Technical features and options

  • Maximum length of cut 3200 mm,
  • Maximum pusher stroke 3200 mm,
  • Maximum saw blade projection 75 mm,
  • Maximum gripper opening 65 mm,
  • Height of work table 985 mm,
  • Main saw motor power 7.5 kW (10 HP),
  • Scoring saw motor power 2.2 kW (3 HP),
  • N. 1 Rounded air table 2050 x 620 mm with square support – left hand side,
  • N. 6 Pneumatic grippers (at 50 – 150 – 360 – 1530 – 2280 – 3030 mm),
  • Additional pneumatic gripper in position 570 mm,
  • Air conditioning device for the electrical cabinet,
  • N. 2 Rounded air cushion unloading table, size 2050 x 620 mm.
