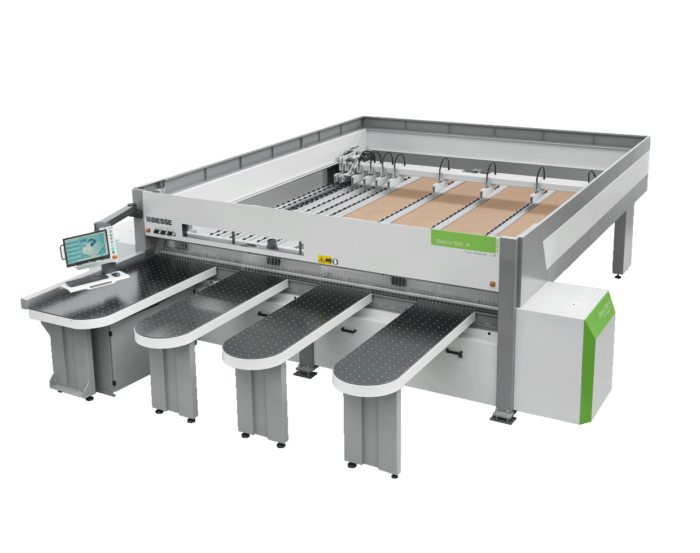

PANEL SAW BIESSE SELCO SEKTOR 470 3800 X 3800
Brand: Biesse
SELCO SK 4 is the range of cutting centres designed to satisfy the needs of small to medium-sized enterprises. It is easy to use, has advanced technical solutions and features great standard equipment The SELCO SK 4 has become the reference point in its sector
Technical features and options
- Maximum length of cut 3800 mm,
- Maximum pusher stroke 3800 mm,
- Maximum saw blade projection 90 mm,
- Maximum gripper opening 85 mm,
- Height of work table 985 mm,
- Main saw motor power 11 kW (10 HP),
- Scoring saw motor power 2.2 kW (3 HP),
- N. 1 Rounded air table 2050 x 620 mm with square support – left hand side,
- N. 7 Pneumatic grippers (at 50 – 150 – 360 – 990 – 1740 – 2490 – 3240 mm),
- Quick Change system for both main and scoring saw blade in front squaring area,
- Integrated lift table, size 3100 x 2200 mm, with tubulars for direct loading,
- Baseboard automatic recognition system based to the thickness specified on the machine parameters,
- N. 1 Additional pneumatic gripper in position 570 mm,
- Push button for remote control start cycle, complete with emergency stop button. It can be positioned next to the second or third air table from the square fence,
- N. 2 Rounded air cushion unloading table, size 2050 x 620 mm,
- XML LINK Software to import data from files in XML format.
