PANEL SAW NANXING NPL330HG

PANEL SAW NANXING NPL330HG

Categories: ,

Brand: Nanxing

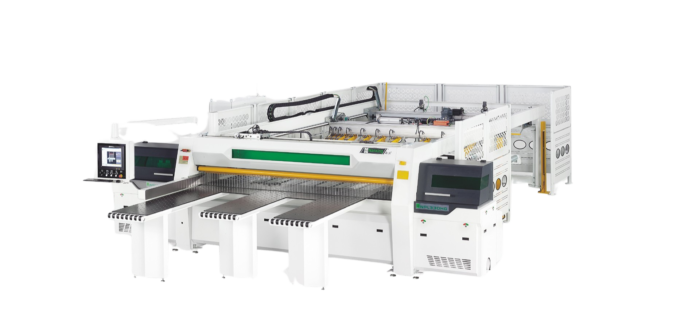

Nanxing NPL330HG is a high-performance panel dividing saw equipped with a hydraulic rear feeding lift table capable of handling up to 5 tons, facilitating efficient panel loading from multiple directions.

Technical features and options

Panel saw with rear loading NANXING NPL330HG

  • Basic technical data:
  1. Maximum cutting length: 3300 mm,
  2. Maximum cutting thickness: 120 mm,
  3. Main saw motor power: 18 kW,
  4. Main saw speed: 3910 rpm,
  5. Maximum diameter of the main saw blade: 450 mm,
  6. Undercut saw motor power: 2.2 kW,
  7. Undercut saw speed: 4150 rpm,
  8. Maximum diameter of the undercutting saw: 180 mm.



  • Saw carriage with 2 kW servo motor and rack and pinion mechanism, automatically moved to match the width of the panel, shortens the travel distance,
  • Maximum forward speed up to 90 m/min, reverse speed up to 120 m/min,
  • Both main saw and undercut saw with independent up and down movements,
  • The main saw automatically adjusts, minimizing lift height to ensure productivity and best machining quality,
  • User-friendly HMI IPC coordinated with USB interface, network card, mouse and keyboard,
  • Controlled by PLC Windows operating system and Nanxing professional software,
