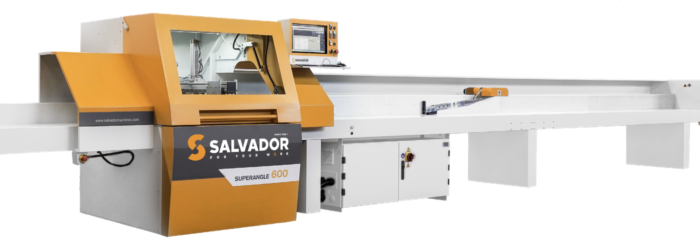

OPTIMISING SAW WITH PUSHER SALVADOR SUPERANGLE 600

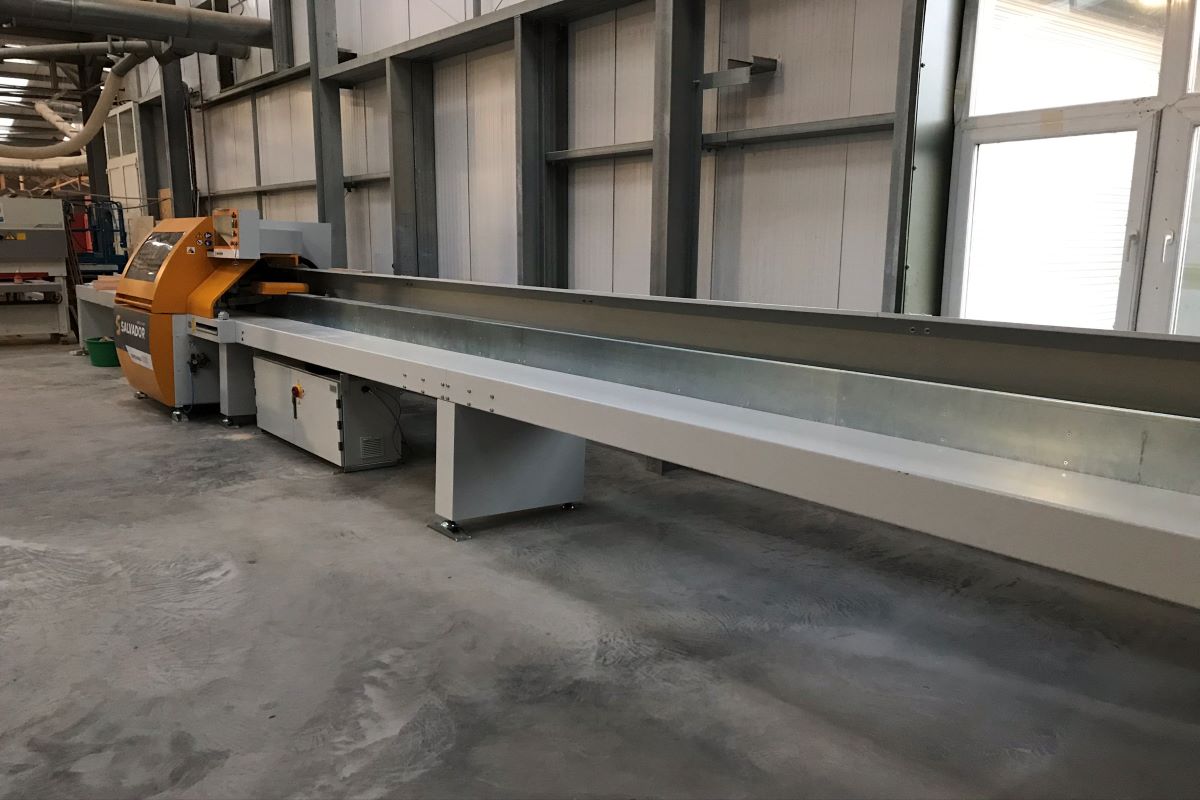

OPTIMISING SAW WITH PUSHER SALVADOR SUPERANGLE 600 - Image 2

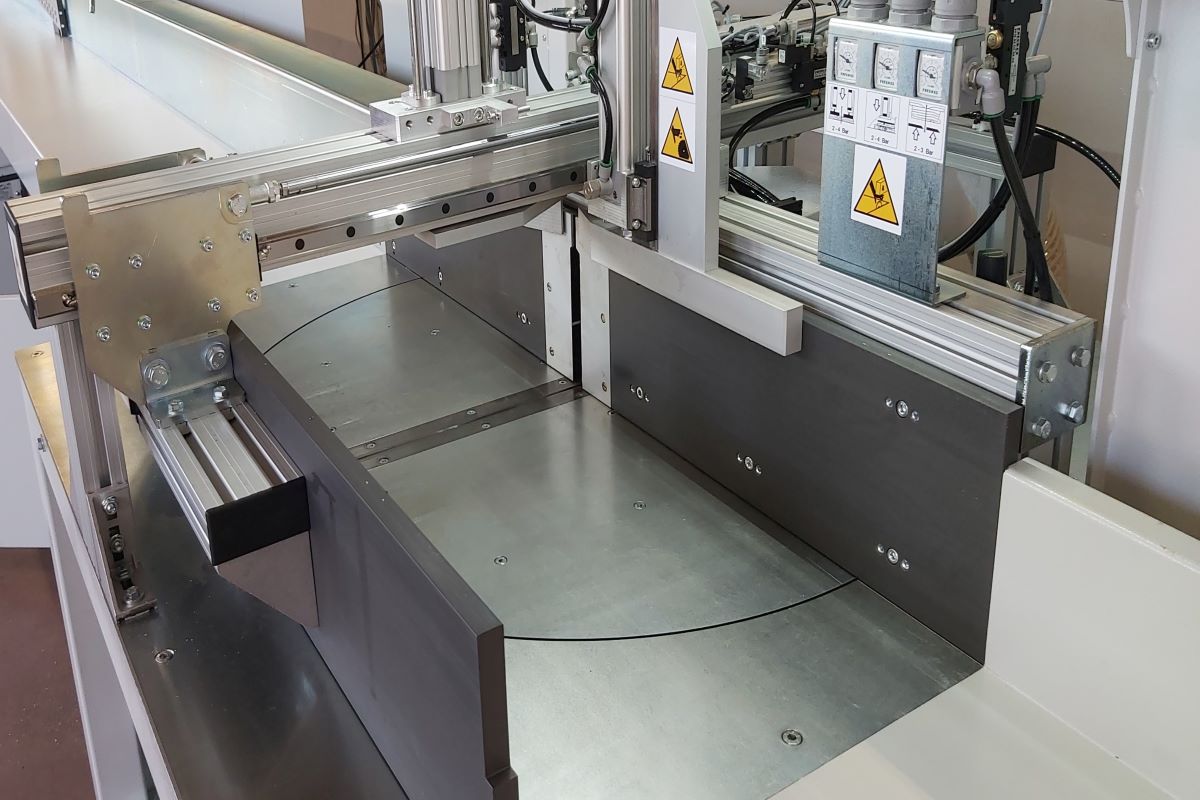

OPTIMISING SAW WITH PUSHER SALVADOR SUPERANGLE 600 - Image 3

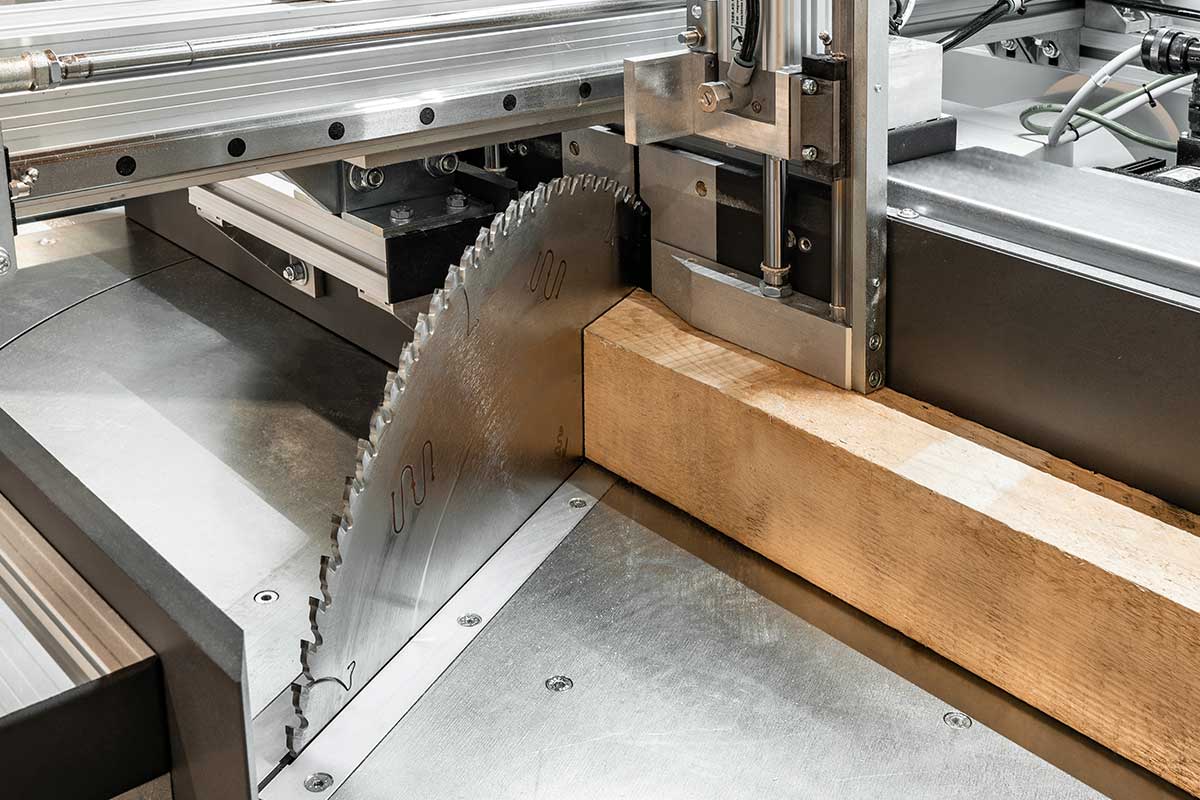

OPTIMISING SAW WITH PUSHER SALVADOR SUPERANGLE 600 - Image 4

OPTIMISING SAW WITH PUSHER SALVADOR SUPERANGLE 600

Categories: , ,

Brand: Salvador

Superangle 600 is an ideal cutting centre for angular, optimised cuts. The direct technological evolution of traditional cutting methods, Superangle 600 can boost productivity, guarantee utter precision and maintain a simple, flexible process logic.

Technical features and options

Fast and precise: the tilting table is mounted on an innovative high-precision mechanical structural system, which guarantees exact angles, and is controlled directly by a technologically cutting-edge, powerful electronic motor, even during braking. As a result of combining these two innovative, highly technological solutions, Superangle 600 can reach the highest operating speed while ensuring maximum precision.

  • Pusher speed: 60 mt/min (optionaly 120/180 mt/min)
  • Pusher positioning accuracy: +/- 0,5 mm (optionaly +/- 0,1 mm)
  • Blade rotation: +/- 70°
  • Rotation accuracy: +/- 0,1°
  • Blade motor power options: 5,5 kW – standard; 7,5 kW
  • Blade diameter: 600 mm
  • Minimum installed power: 8 kW
  • Crosscutting section on 0°: 310 x 160 mm / 380 x 100 mm
  • Crosscutting section on 45°: 220 x 160 mm / 260 x 100 mm
  • Crosscutting section on 70°: 100 x 160 mm / 120 x 100 mm
  • Compressed air consumption: 300 nl/min, 6 atm
  • Dust extraction: Ø 120, speed 30 mt/s, 1200 m3/h ; Ø 100, speed 30 mt/s, 800 m3/h
