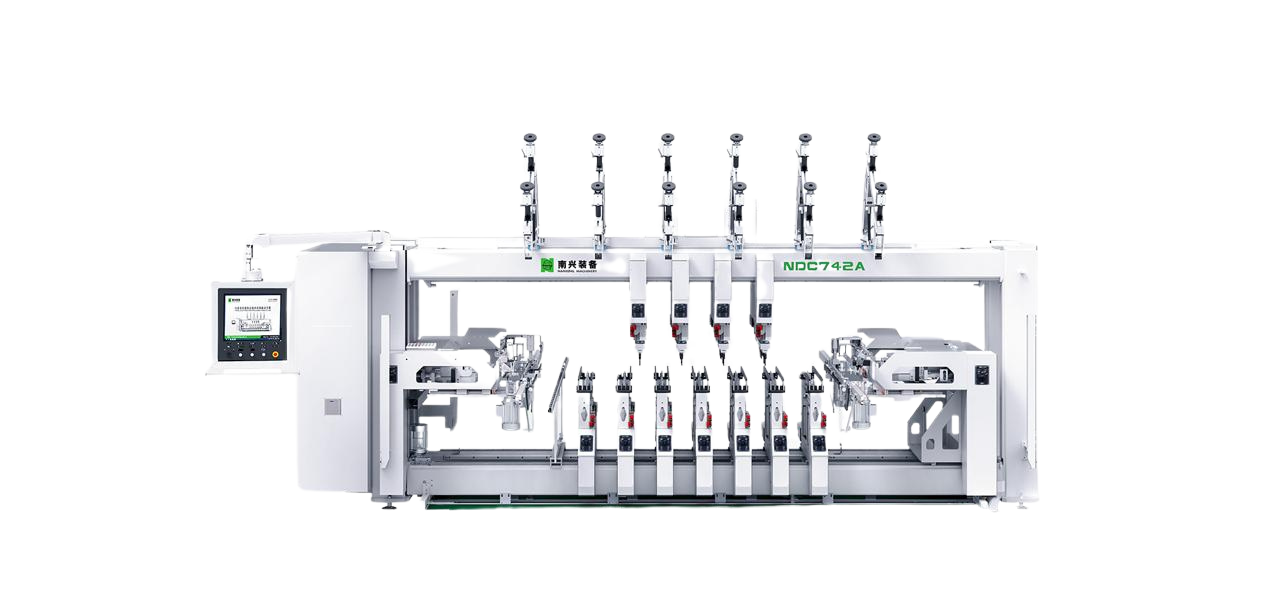

AUTO MULTI ROWS BORING MACHINE NANXING NDC742A

AUTO MULTI ROWS BORING MACHINE NANXING NDC742A

Categories: ,

Brand: Nanxing

The machine, equipped with 13 boring rows, is ideal for mass production, even when frequent adjustments to boring hole patterns are required by furniture manufacturers. It can also be integrated into a production line for seamless operation.

Technical features and options

The movement of vertical drilling rows is smooth, fast, and precise, powered by a servo motor with a rack-and-pinion system.
Vertical row lifting is also controlled by a servo motor, allowing flexible position adjustments.
Both new and previous processing data can be stored within the machine’s filing system for easy retrieval and efficiency.

  • Max panel width: 2550 mm,
  • Min. panel width: 250 mm,
  • Max. panel thickness: 50mm,
  • Upper drilling rows qty.: 4,
  • Lower drilling rows qty.: 7,
  • Horizontal drilling rows qty.: 2,
  • Boring block power: 1.5 kW 2750 rpm,
  • Spacing of drills: 32 mm,
  • Max vertical drilling depth: 50 mm,
  • Max. horizontal drilling depth: 40 mm,
  • Servo motor qty: 23,
  • Servo motor power: 0. 75 kW,
  • Total power: 55.5 kW,
  • Approx. weight: 7,100 kg,
  • Overall dimension: 5,540*3,660*2,200 mm.
