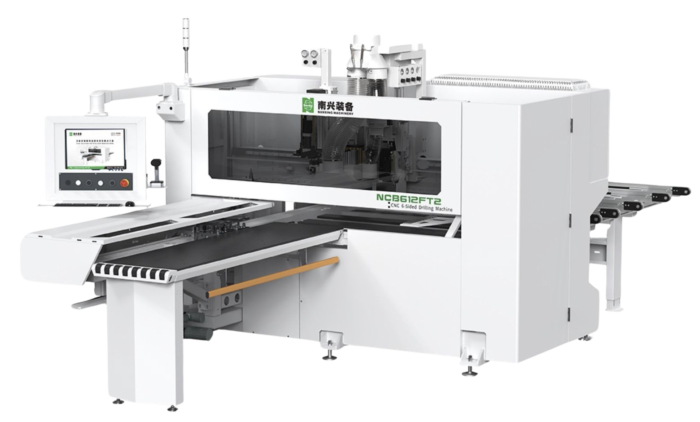

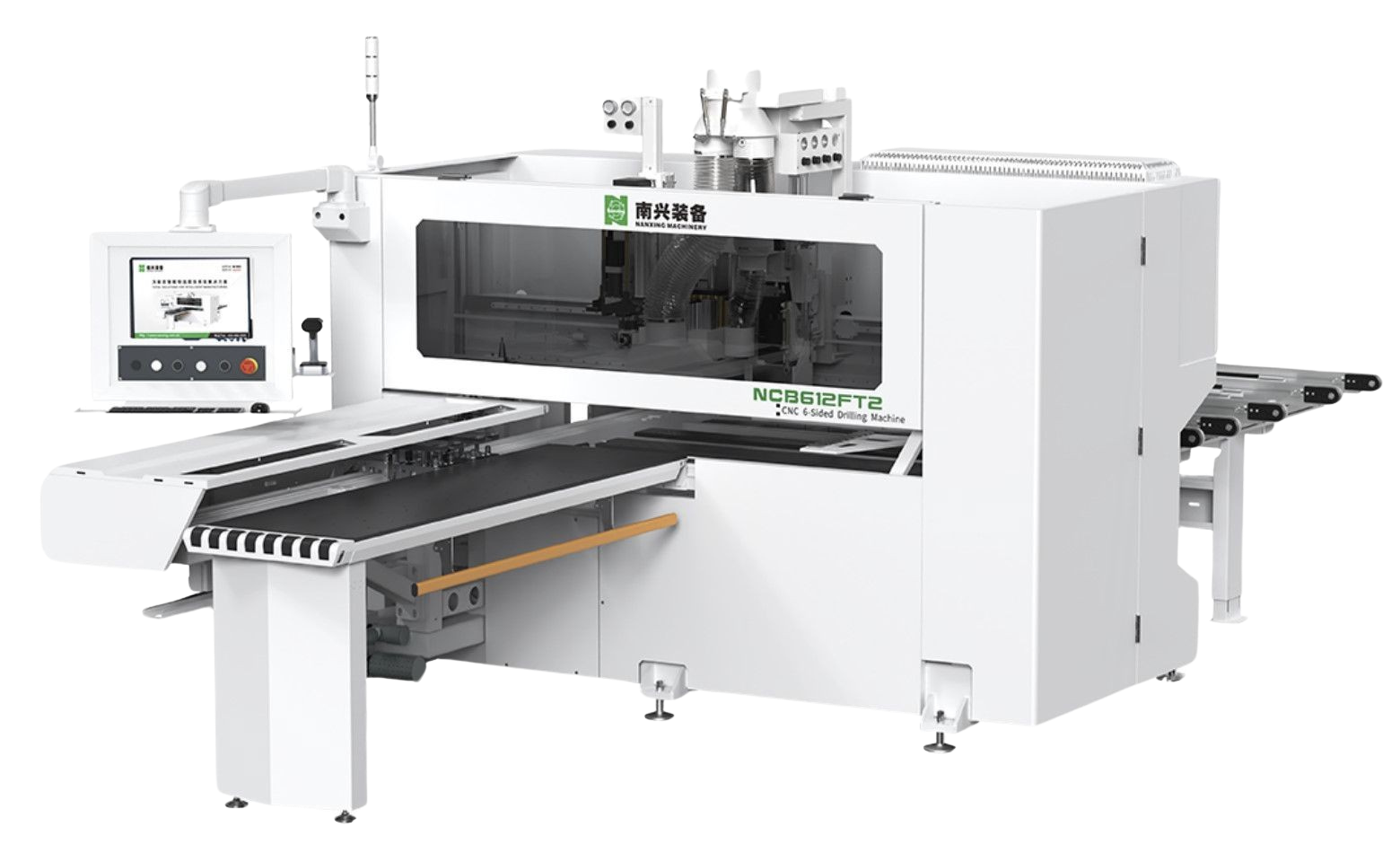

CNC 6-SIDED DRILLING MACHINE NANXING NCB612FT2

CNC 6-SIDED DRILLING MACHINE NANXING NCB612FT2

Categories: ,

Brand: Nanxing

Multi-functional CNC drilling machine is able to drill from 6 sides, simple routing meets different process requests and gives batch-size-one production max flexibility.

Technical features and options

Drilling center NANXING NCB612FT2 with electro-spindle working in 4 axes

  • Length (X): 200- 3000 mm,
  • Width (Y) 30-1200 mm,
  • Thickness (Z): 10-60 mm,
  • Maximum travel speed is 135 m/min,
  • Total power is 26.83 kW,
  • SYNTEC CNC control system and operating software guarantees high process efficiency,
  • The electrical parts and components are from renowned global manufacturers,
  • The machine tool supports files in formats: MPR, DXF, BAN, BPP, PDX, XML, XXL.
