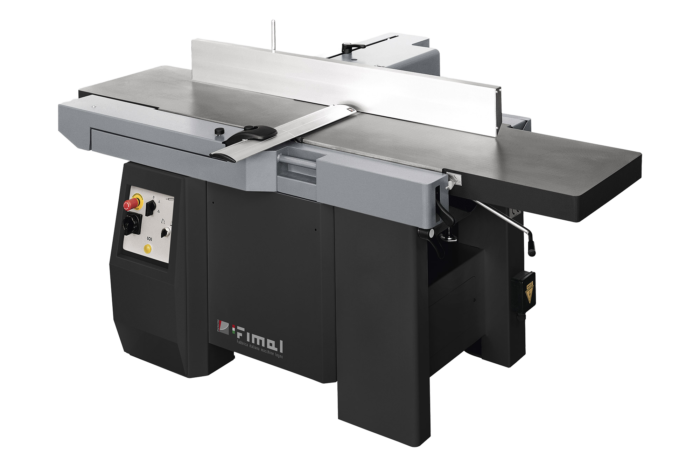

COMBINED WIRE-PLANER FIMAL DR53
Brand: Fimal
The planer fence is a large anodized aluminium extrusion. Fence tilting is fast and easy thanks to a solid and reliable handle. The tilting locking/unlocking lever is very quick. Tilting precision is guaranteed by a graduated scale and reference stops at 0° and 45°.
Technical features and options
- Cast iron table with lifting capability during work on the planer, dimensions: 2300 x 530 mm
- Planer fence with dimensions: 1500 x 530 mm
- Quick tilting of the guide in the range of 0–45 degrees (planer)
- 4 knives mounted on the planer cutter shaft
- Shaft diameter: 120 mm
- Shaft speed: 4800 rpm
- Maximum material removal capacity up to 13 mm (planer)
- Minimum/maximum material height range: 3-250 mm (thicknesser)

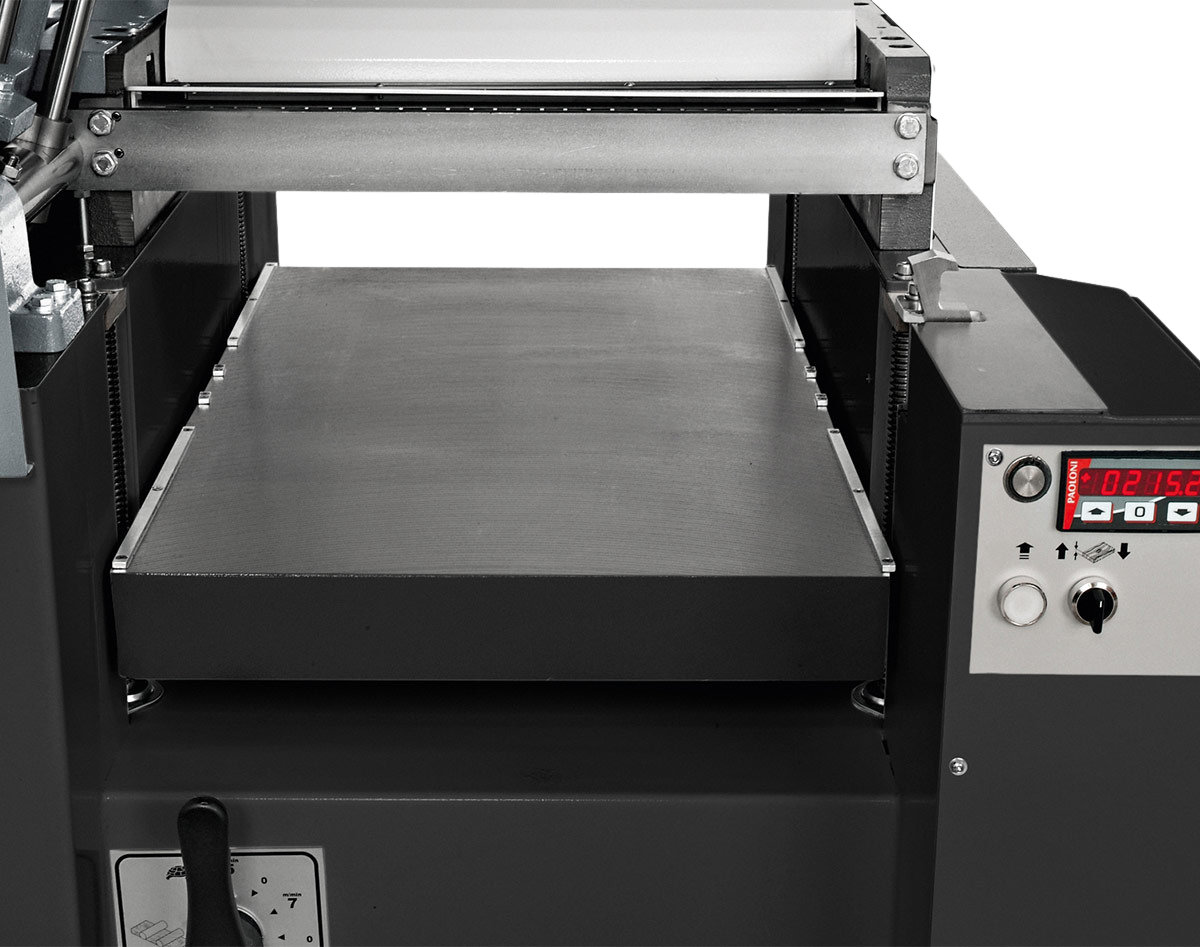

- Worktable dimensions: 930 x 530 mm (thicknesser)
- Feed speed of the processed material in the range of 5/7/9/12 m/min
- Planer motor power: 4 kW (5.5 HP) 50 Hz
- Planer noise level according to EN27960 standard – 79.6/87 dB(A)
- Thicknesser noise level according to EN27960 standard – 79.3/85.9 dB(A)
- Weight: 750 kg
