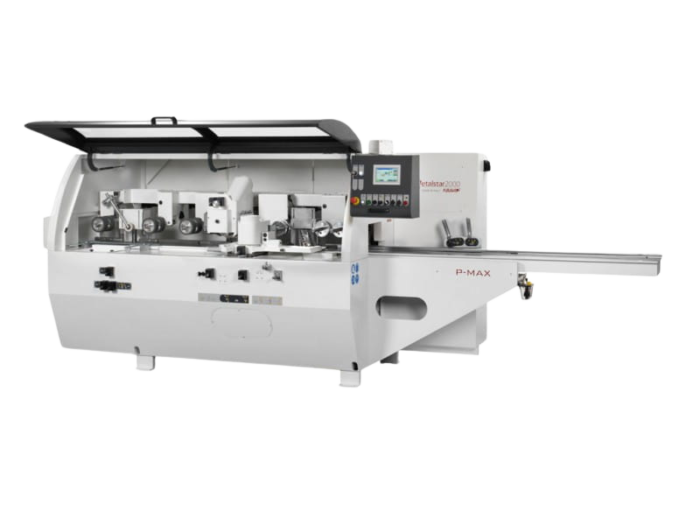

FOUR-SIDE PLANER FUTURA P.MAX

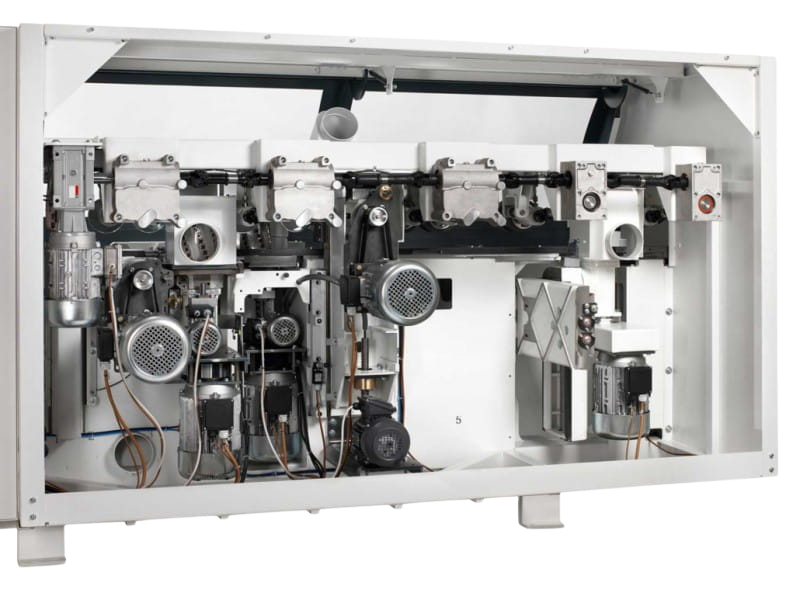

FOUR-SIDE PLANER FUTURA P.MAX - Image 2

FOUR-SIDE PLANER FUTURA P.MAX

Categories: ,

Brand: Futura

Automatic 6-head planer, a high-performance wood planer designed for industrial-scale wood profiling operations.

Technical features and options

Working range:

  • Max. working width: 260 mm
  • Min. working width: 25 mm
  • Max. working height: 180 mm
  • Min. working height: 8 mm

Speeds:

  • Feed speed: 4/30 m/min
  • Spindle speed: 6000 rpm

Tool diameters:

  • Spindle tool holder diameter: ø 40 mm
  • Diameter of tool 1st lower spindle: ø 125 mm
  • Tool diameter range for the 4th spindle: ø 110 – 125 – 140 mm
  • Max. tool diameter for 4th spindle: ø 200 mm
  • Tool diameters (except for 1st and 4th spindles): ø 110 / 200 mm

Motor power:

  • Spindles: 4 kW for most spindles (except upper spindle – 5.5 kW)
  • Feed motor: 2.2 kW
  • Motor for lifting (up/down): 0.37 kW

Dimensions and weight:

  • Overall dimensions (length x width x height): 5000 x 1600 x 1700 mm
  • Weight: 2500 kg
