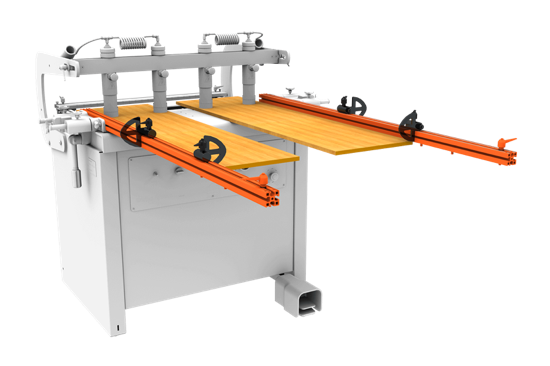

MULTISPINDLE DRILLING MACHINE MAGGI BORING SYSTEM 29
Brand: Maggi Technology
Maggi multi-spindle drill with vertical, horizontal and 45-degree drilling capabilities.
Technical features and options
- Number of spindles (left red – right black) 29 (14 left – 15 right)
- Spacing of spindles 32 mm
- Spacing between first and last spindle 896 mm
- Max tool diameter 40 mm
- Max drilling depth 65mm
- Max drilling height 55 mm
- Inner diameter of quick-change bushings 10 mm
- Max dimensions of the working element 1156 x 3000 mm
- Working table height 860 mm
- Work table dimensions 1141 x 350 mm
- Number of clamps 2 pcs.
- Number of motors 1 pc.
- Motor power 1.5 kW – 2 HP
- Engine speed 2,800 rpm (50 Hz)
- Dust collection diameter 80 mm
- Working pressure 6-8 bar
- Compressed air requirement 10 l/cycle
- Dimensions 1480x950x1300 mm
- Shipping dimensions 1250 x 950 x 1050 mm
- Ruler packaging dimensions 1500 x 120 x60 mm
- Net / gross weight 300 kg / 344 kg
EQUIPMENT:
- Aluminum fences 1500 mm + 1500 mm long with two stops
- Table fences, easily adjustable, cast iron, exact positioning with a ruler and a magnifying glass
- Number of spindles 29 pcs.
- Drill holders – 29 pcs in the set.
- Pneumatic clamps – 2 pcs
- Spacing of spindles every 32mm
- Pneumatically adjustable head
- Setting the blocking of the head in any position in the range of 0 to 90
- Patented drilling depth adjustment (spiral system)
