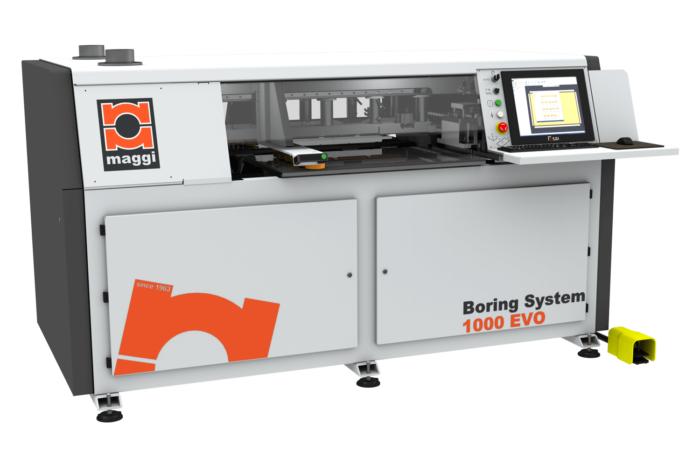

CNC MULTISPINDLE CONTINOUS DRILLING MACHINE MAGGI EVOLUTION 1000
Brand: Maggi Technology
Ideal solution for small furniture manufacturers aiming to improve the quality of the manufacturing process on a small budget. To produce kitchens and bespoken pieces of furniture.
Technical features and options
- Maximum panel dimension X-Y-Z mm ∞ x 1000 x 60 mm
- Minimum panel dimension X-Y-Z mm 300 x 75 x 8 mm
- Maximum panel weight 70 Kg
- Max. axis speed (full and no load) 25 m/min – 70 m/min
- Double horizontal spindles (X axis) n.2 (TH1, TH2)
- Double horizontal spindles (Y axis) n.2 (TH3, TH4 )
- Vertical spindles (Z axis) n.12 (7X-5Y)
- Spindle interaxis 32 mm
- Spindle speed 3200 RPM
- Integrated blade unit, fixed position (X axis) n.1
- Blade diameter 120 mm
- Blade thickness 4,3 mm
- Blade speed 4000 RPM
- Motor power (spindles and blade) 2,2 kW
- Electro spindle manual tool change (power – router holder type – collet chuck type – RPM) 3,6 kW, HSK 32, ER 25, 18.000 RPM
- Electro spindle manual tool change (power – collet chuck type – RPM) 3,6 kW, ER 25, 18.000 RPM
- Electro spindle manual tool change (power – collet chuck type – RPM) 4,5 kW, ER 32, 18.000 RPM
- Total power (full-optional) 10 kVA
- Dust-collection nozzle diam. n.2 x 120 mm n.1 x 80 mm
- Air pressure 6 bar
- Air consumption Q. = 750 m3/h
- Overall dimensions – net weight 2660 x 1560 x 1450 mm – 1715 Kg
- Package dimensions (pallet) – gross weight 2650 x 1570 x 1680 mm – 1800 Kg
