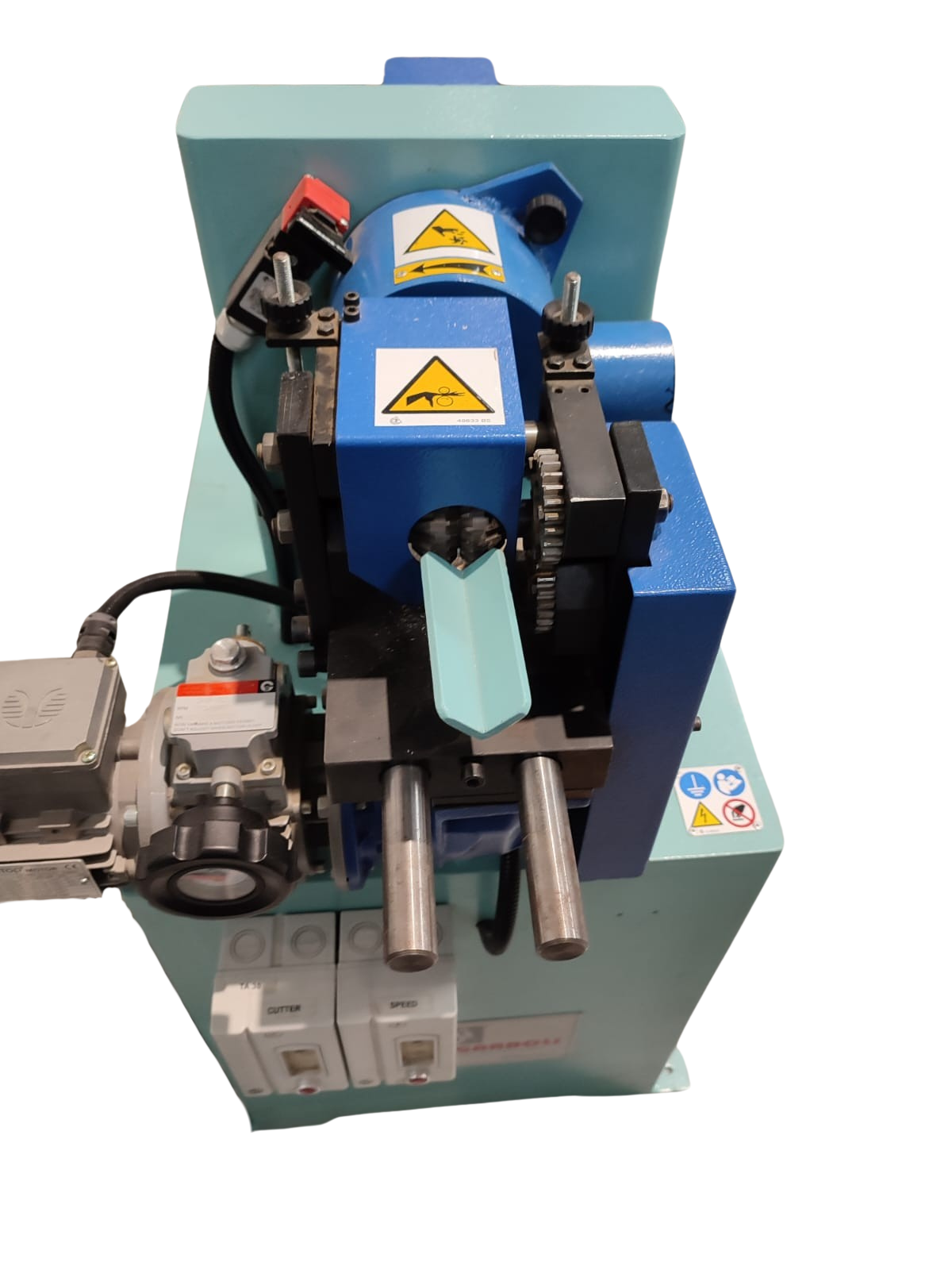

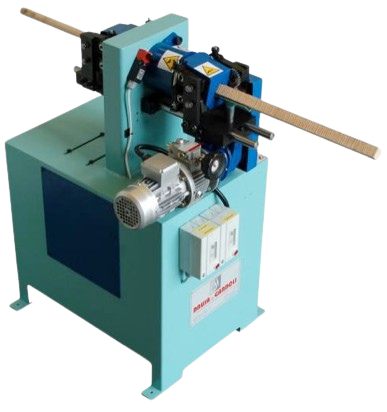

MILLING MACHINE BRUSA Di GARBOLI TA30

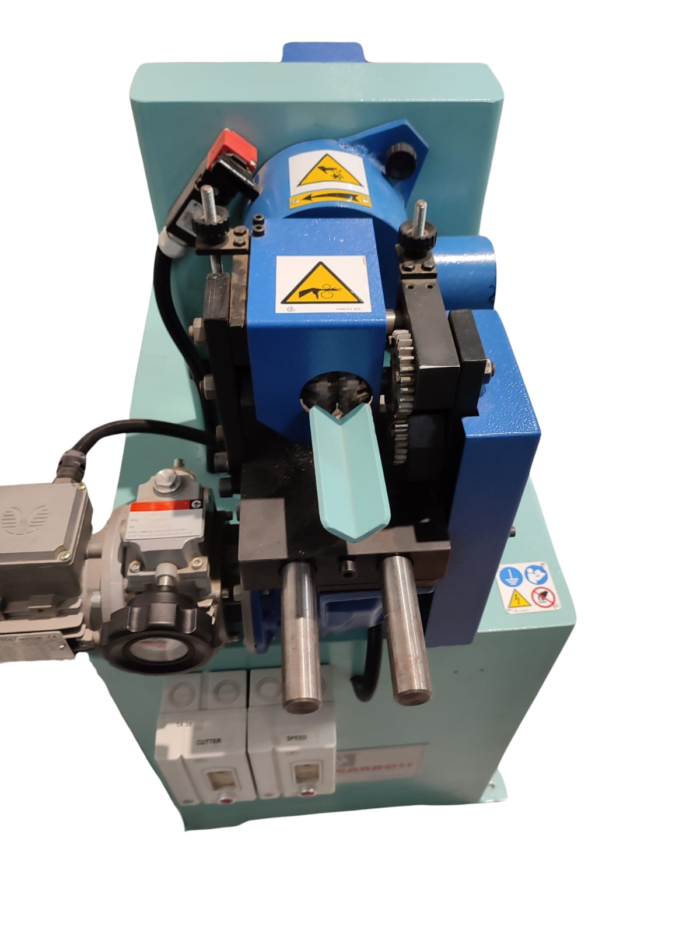

MILLING MACHINE BRUSA Di GARBOLI TA30 - Image 2

MILLING MACHINE BRUSA Di GARBOLI TA30

Categories: ,

Brand: Brusa & Garboli Srl.

The machine is designed for the production of “smooth” wooden rollers with a diameter of 6 to 30 mm, from which dowels can then be obtained.

Technical features and options

  • Minimum diameter: 6mm
  • Max diameter: 30mm
  • Minimum length: 350mm
  • Max length: Not limited
  • Efficiency: 2 – 6 m/min
  • Standard voltage: 400V/50Hz
  • Tool rotation motor: 1.5 kW
  • Adjustable speed feeding motor: 0.22 kW
  • Dimensions: 80 x 120 x H 130cm
  • Weight: 190 kg

The machine is delivered ready to work with the following equipment:

  • Motor (voltage 400V / 50Hz)
  • 4 universal feed rollers
  • 4 profiled receiving rollers (diameter to be agreed)
  • 1 set of tools (diameter to be agreed)
  • Keys
  • User manual
  • CE certificate of conformity
