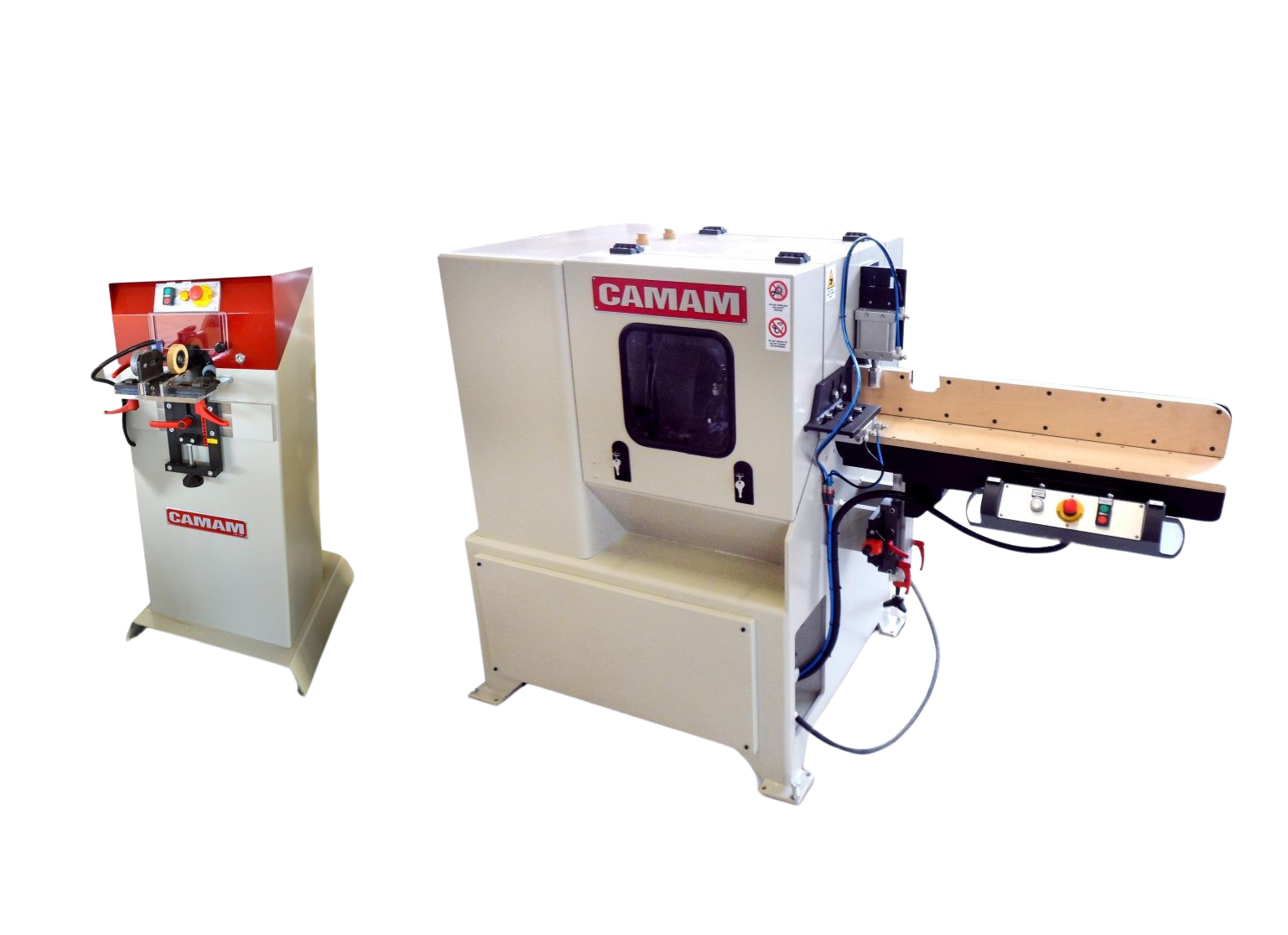

MILLING MACHINE CAMAM FIS 100
MILLING MACHINE CAMAM FIS 100 - Image 2

MILLING MACHINE CAMAM FIS 100

Categories: ,

Brand: Camam

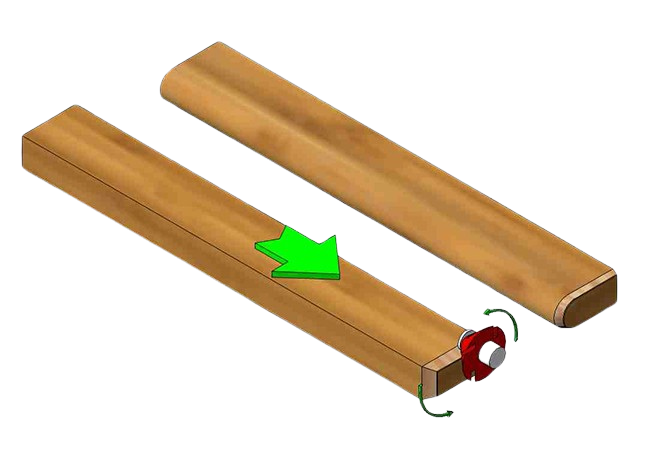

Fis 100 are the universal manual loading machines, suitable for heads chamfering / trimming on mdf or multilayer wood elements, up to 100mm diameter.

Technical features and options

• Milling unit with pneumatic spindle kW 0.37 / 20,000 rpm
• Copying device with Teflon copying ring
• Rotation of the milling unit with the motor kW 0.25
• Speed controlled by inverter, “save tenon” device
• PLC controlled duty cycle
• 1 adjustable work table complete with locking cylinder
• Working area: max. 80 x 80 mm / min. 20x20mm
• Machinable chamfer max. 3 x 45° mm or r= 3 mm
• Estimated capacity of 400 bp/h
• Dimensions: 800x800x1250H/Weight 130 kg
• Made in accordance with CE rules
• Volt 400/50 Hz
