MULTI-ROW DRILLING MACHINE SPECIALLY DESIGNED FOR DRILLING NARROW PARTS NANXING NDA022

MULTI-ROW DRILLING MACHINE SPECIALLY DESIGNED FOR DRILLING NARROW PARTS NANXING NDA022

Categories: ,

Brand: Nanxing

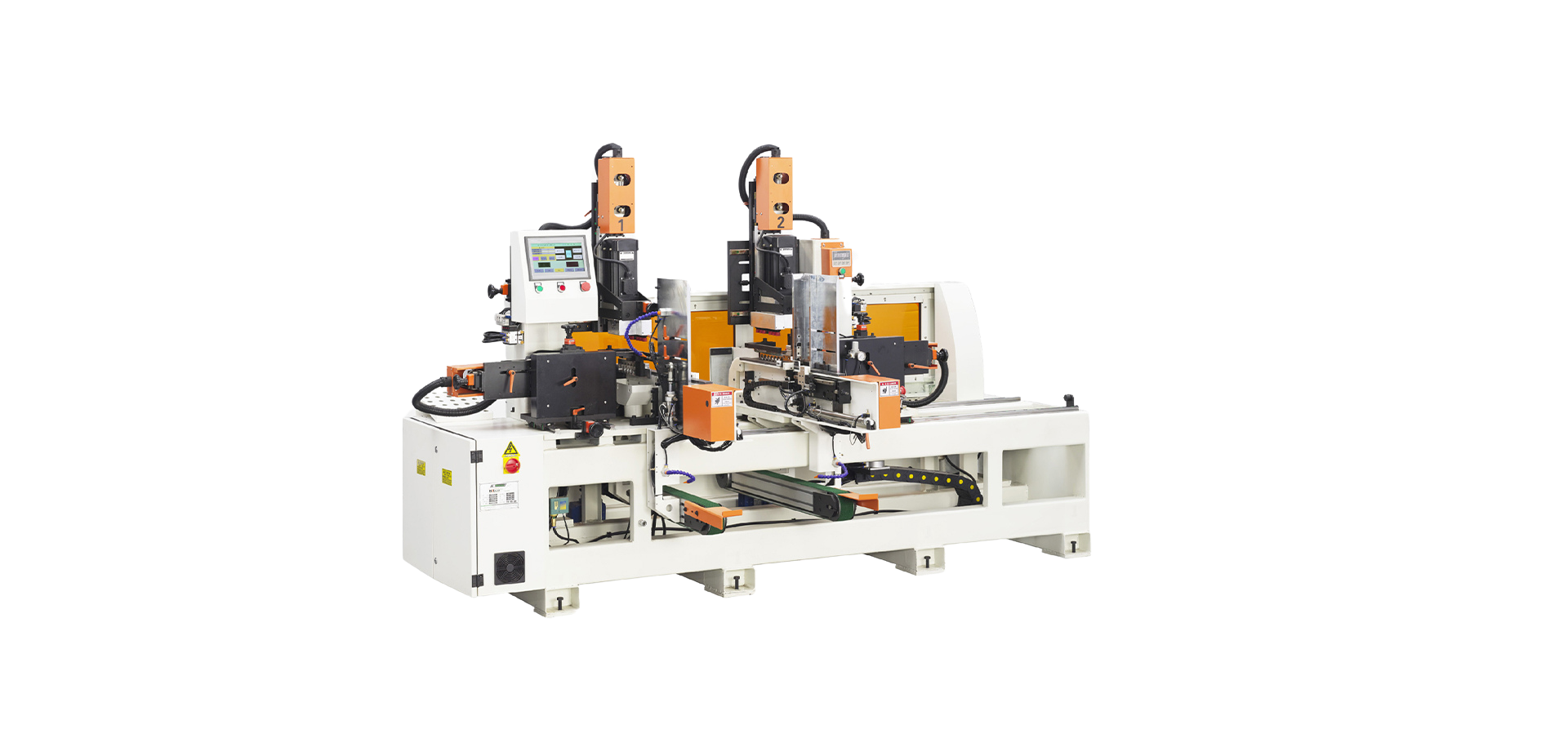

Nanxing NDA022 multi-row drilling machine specially designed for drilling narrow parts.

Technical features and options

Loading and unloading from the front – this type of feeding system and the simplified drilling process make it possible to complete the drilling in a single process. Independent board feeding effectively protects the workpieces from damage. Counting workpieces, positioning, storing, drilling are all made easy thanks to an innovative system for easy operation.

  • Dimensions:
  1. Length (X) 200 1500 mm,
  2. Width (Y) 30 200 mm,
  3. Thickness (Z) 10 25 mm,
  • Number of vertical spindles: 7*2 rows,
  • Number of horizontal spindles: 7*2 rows,
  • Drill motor power: 1.5 kW * 4,
  • Distance between drills: 32 mm,
  • Maximum vertical drilling depth: 25 mm,
  • Maximum horizontal drilling depth: 45 mm,
  • Total power: 7 kW,
  • Approximate machine weight: 1 800 kg,
  • External dimensions of the machine: 3 150 * 1 520 * 1 820 mm.
