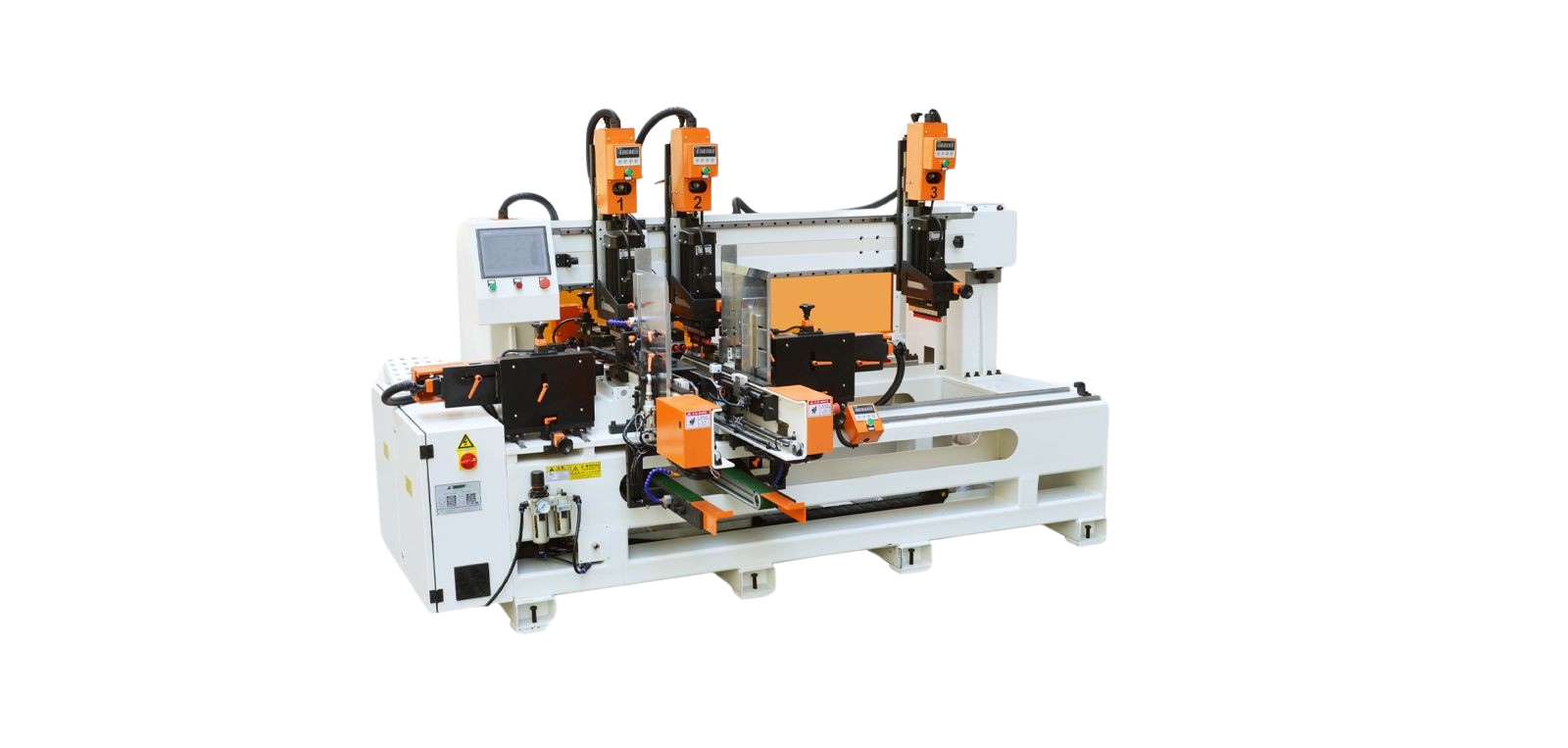

MULTI-ROW DRILLING MACHINE NANXING NDA232
Brand: Nanxing
Nanxing NDA232 multi-row drilling machine specially designed for drilling narrow parts.
Technical features and options
Nanxing NDA232 multi-row drilling machine specially designed for drilling narrow parts.
- Dimensions:
- Length (X): 200- 1500 mm,
- Width (Y): 200 mm,
- Thickness (Z): 10- 25 mm,
- Number of vertical spindles: 7*3 rows,
- Number of horizontal spindles: 7*2 rows, 5*2 rows,
- Drill motor power: 1.5 kW * 7,
- Distance between drills: 32 mm,
- Maximum vertical drilling depth: 25 mm,
- Maximum horizontal drilling depth: 45 mm,
- Total power: 11.5 kW,
- Approximate weight of the machine: 2,300 kg,
- External dimensions of the machine: 3,200 x 1,910 x 1,850 mm.
Feeding and removing workpieces from the front-this type of feeding system and simplified drilling process make it possible to finish drilling in one process. Independent feeding of workpieces effectively protects them from damage. Workpiece counting, positioning, storing and drilling are intuitive to use thanks to the innovative system.
