CNC DRILLING MACHINE BIESSE SKIPPER 130

CNC DRILLING MACHINE BIESSE SKIPPER 130

Categories: ,

Brand: Biesse

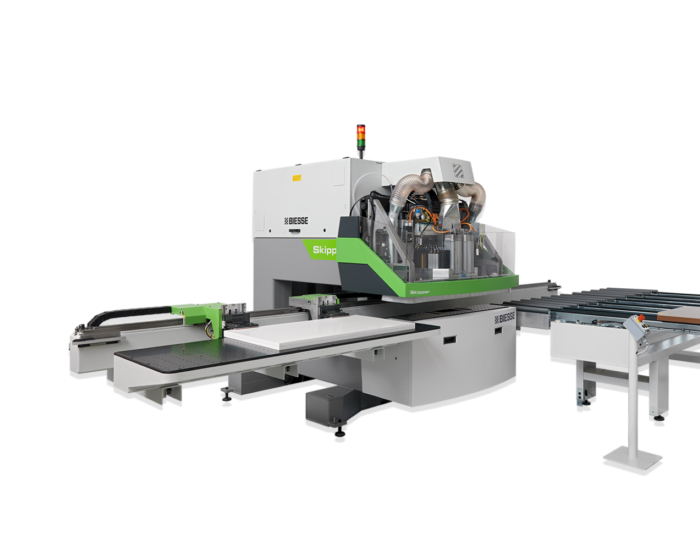

Skipper 130 is an NC processing centre that allows the processing of panels of completely different formats in sequence, and without interruptions. It's ideal for the nonstandard production of large companies, for producing small batches for third parties, and for those requiring just-in-time flexible production

Technical features and options

  • Panel dimensions:
  1. Panel Length 90 – 3000 mm,
  2. Panel Width 70 – 1300° mm,
  3. Panel Thickness 8* – 90 mm,

° For panel dimensions bigger than 2.500 x 1.000 mm the machine is able to process only in single panel mode.
* If length is more than 2.000 mm the min. thickness increases to 13 mm.

  • The machine is composed of two operating units, top and bottom, equipped with totally 82 independent spindles,
  • Manual loading system with air floating table,
  • RH automatic unloading conveyor with belts for the automatic unloading of the panels,
  • Bottom and top operating unit. Electrospindle with ISO 30 adaptor – 6.5 kW (8.7 HP),
  • Bottom and top operating unit. Grooving Saw Unit diameter 160 mm – 5 kW (6.7 Hp),
  • BiesseWorks editor to be installed in the basic machine. A high-level software interface makes particularly easy and direct the machine programming.

* Machine with the possibility of expansion to include automatic loading.
