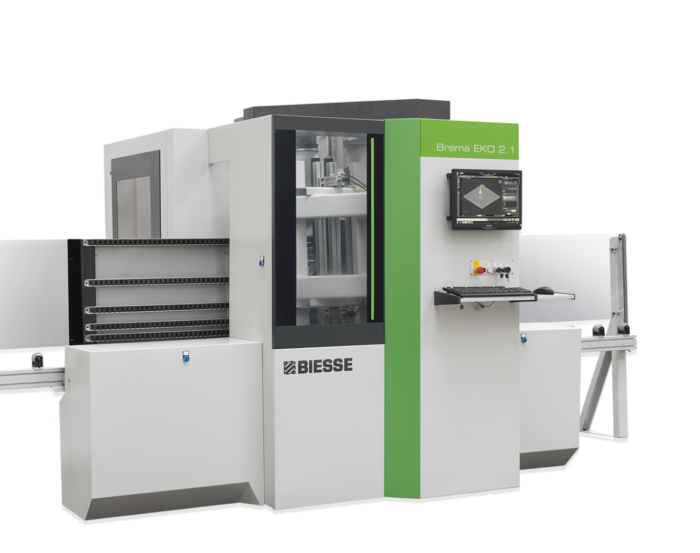

CNC DRILLING MACHINE BIESSE BREMA EKO 2.1

CNC DRILLING MACHINE BIESSE BREMA EKO 2.1

Categories: ,

Brand: Biesse

Brema Eko 2.1 is the new compact and versatile vertical boring machine that supports the machining of different thickness and size formats within a reduced footprint. It is the ideal solution for “just in time” manufacturing for artisans, small companies and special components within large companies

Technical features and options

  • Panel dimensions:
  1. Panel Length (X): 200 – 2600 mm,
  2. Panel Width (Y): 35 – 900 mm,
  3. Panel Thickness (Z): 8 – 60 mm,
  • Max. working panel weight: 50 Kg,
  • HP Kit for the expedited management of the panel-handling grippers. Allows to obtain a movement speed of up to 110 m/min with fast acceleration ramps,
  • BH23 PLUS Self-selecting drilling unit with 14 vertical + 4 horizontal spindles + 1 grooving saw d. 120 mm,
  • 5.5 kW (7.4 hp) electrospindle with ISO30 adaptor,
  • Extensions for loading and unloading tables,
  • The maximum workable panel length changes from 2600 to 3200 mm,
  • Laser Y-reading device.
