CNC DRILLING MACHINE BIESSE BREMA EKO 2.2

CNC DRILLING MACHINE BIESSE BREMA EKO 2.2

Categories: ,

Brand: Biesse

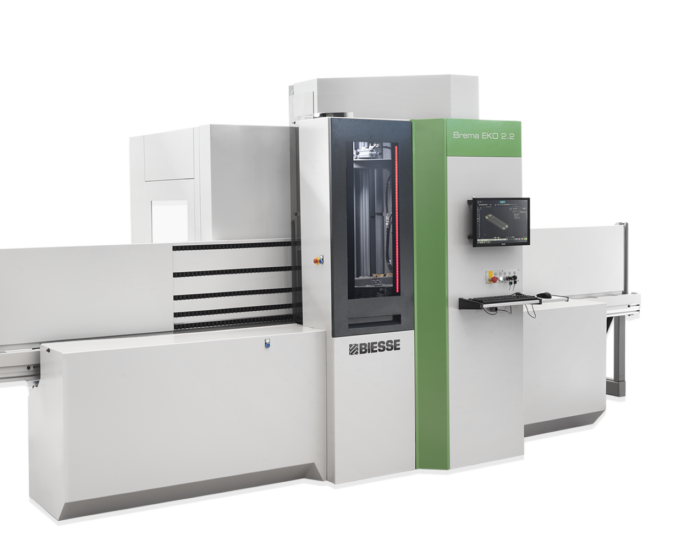

Brema Eko 2.2 is the new compact and versatile vertical boring machine with reduced footprint, for machining panels of different thickness and sizes. The ideal solution for “just in time” production, even for the most complex routing machining processes

Technical features and options

  • Panel dimensions:
  1. Panel Length (X): 200 – 3200 mm,
  2. Panel Width (Y): 35 – 1250 mm,
  3. Panel Thickness (Z): 8 – 60 mm,
  • Max. working panel weight: 50 Kg,
  • HP Kit for the expedited management of the panel-handling grippers. Allows to obtain a movement speed of up to 110 m/min with fast acceleration ramps,

Double Axes Equipment For Self-Selecting Drilling Unit, Composed of:

  • BH21 Lower Self-selecting drilling unit with 13 vertical + 4 horizontal spindles,
  • BH23 Upper Self-selecting drilling unit with 14 vertical + 4 horizontal spindles + 1 grooving saw d. 120 mm,
  • 11 kW Electrospindle with HSK-F adaptor,
  • Tool changer 8 positions,
  • Laser Y-reading device,
  • Working surface kit for delicate surfaces.
