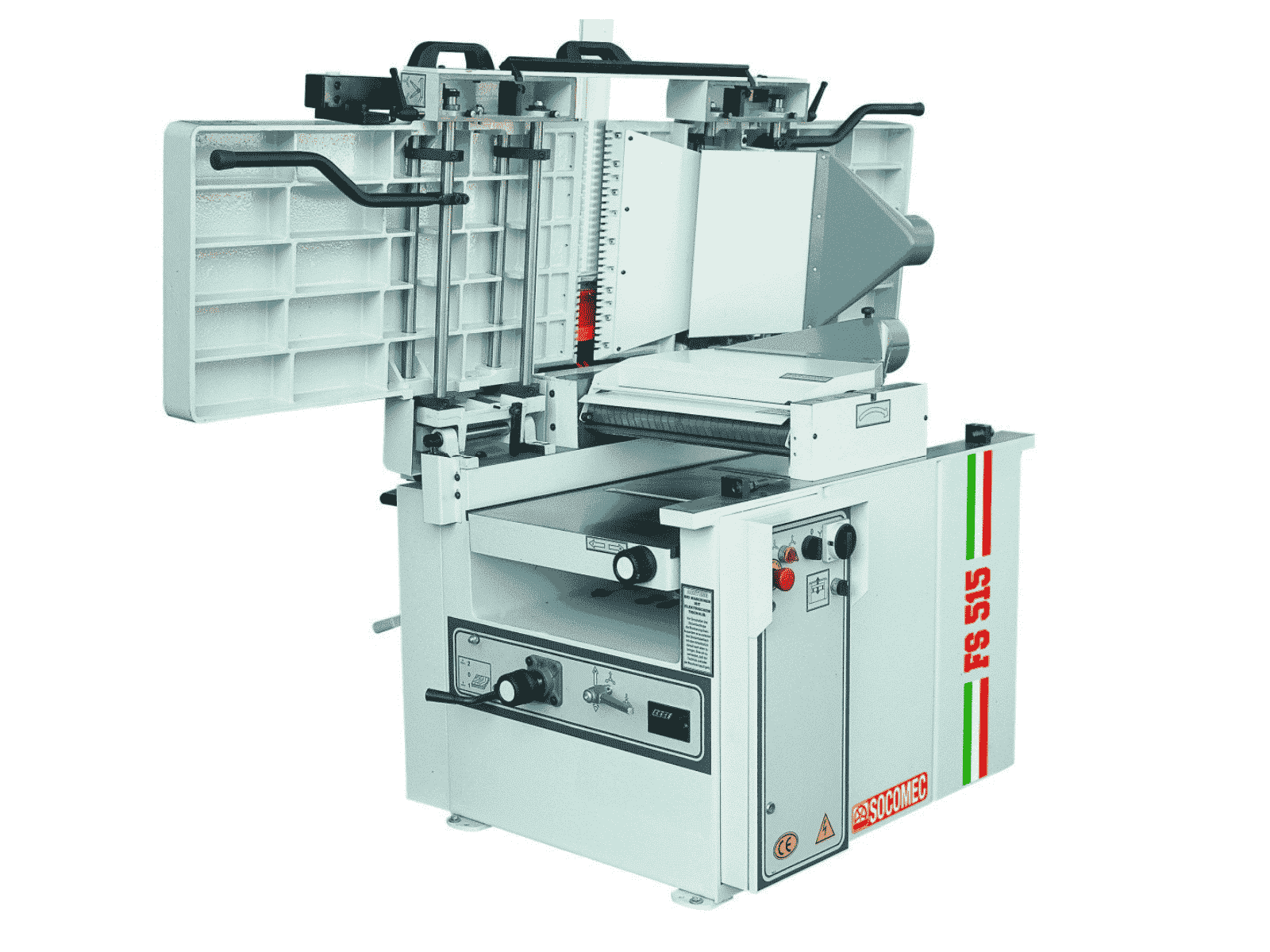

PLANER-THICKNESSER SOCOMEC FS 515
PLANER-THICKNESSER SOCOMEC FS 515 - Image 2
PLANER-THICKNESSER SOCOMEC FS 515 - Image 3
PLANER-THICKNESSER SOCOMEC FS 515 - Image 4

PLANER-THICKNESSER SOCOMEC FS 515

Categories: ,

Brand: Socomec

Socomec’s combined planer thicknesser is a woodworking machine used to make a rough surface flat and smooth or to reduce the thickness of a board to a set size as well as to bring to size a board with both surfaces perfectly straight and parallel to each other.

Technical features and options

  • Shaft motor power Kw (Hp) 4 (5,5)
  • 4-knives shaft Ø Mm 110
  • Rotation speed shaft r.p.m. 5000

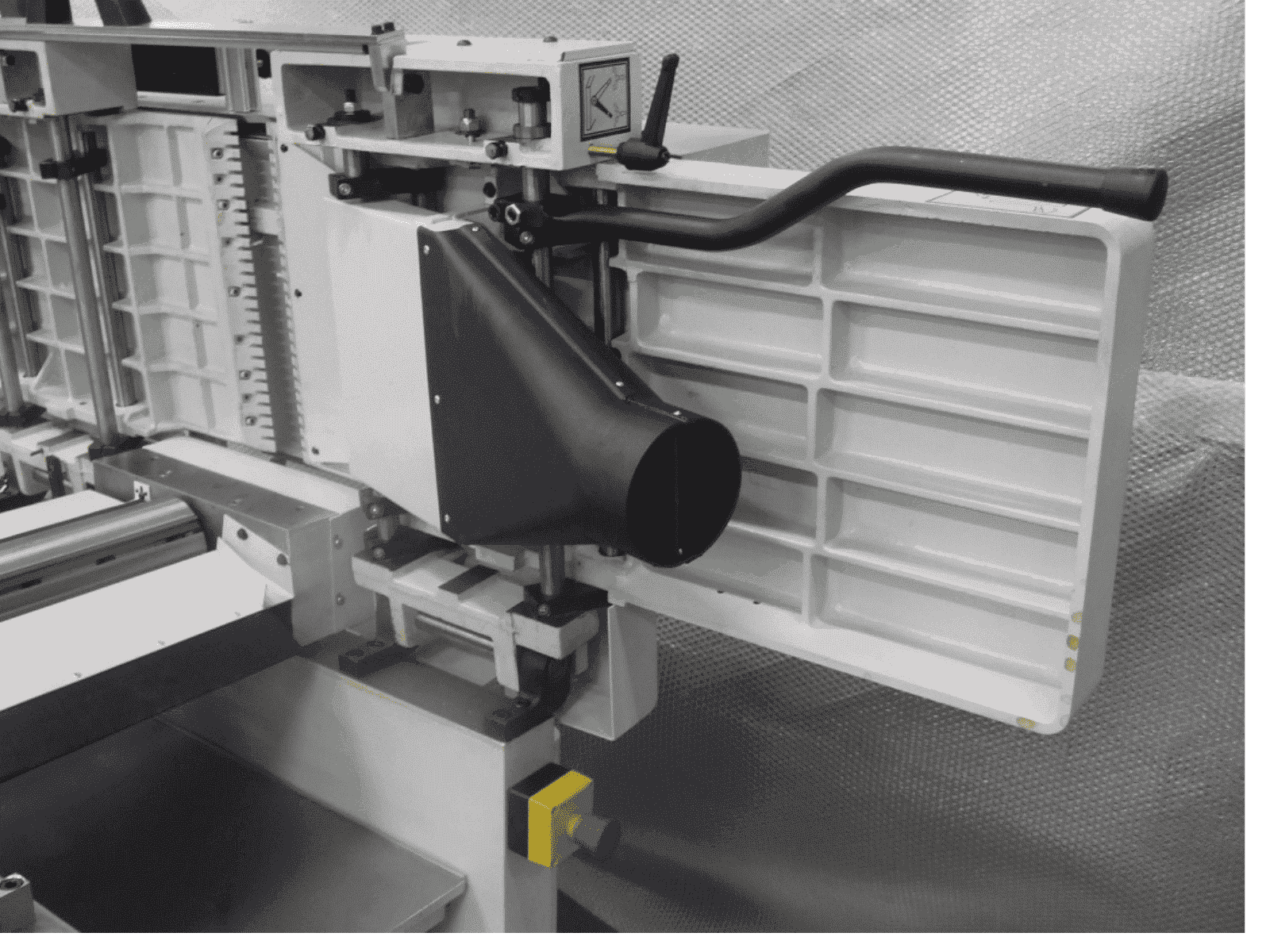

  • Dust suction hood Ø mm 120
  • Dimensions of surface working tables mm 2130×515
  • Dimensions of thickness working tables mm 960×515
  • Min / max working height mm 4/225
  • In-feeding speed m/min. 8 – 14
  • Net weight kg 800

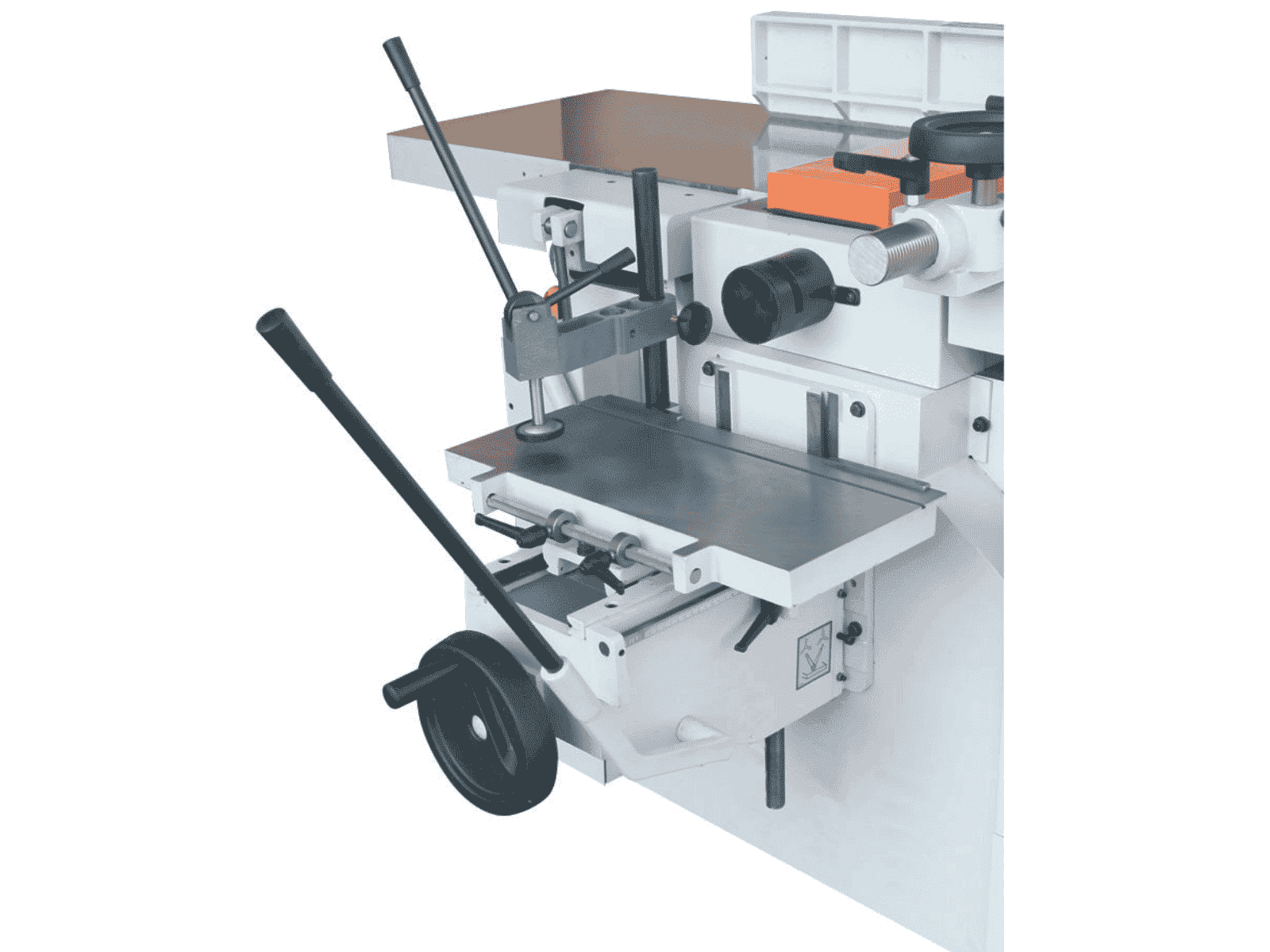

Mortising unit (on request)

  • Cast iron table / dimensions mm 560×250
  • Longitudinal/transversal/vertical stroke mm 250x160x200
  • Wescott chuck Ø mm 0 – 16
