MILLING MACHINE FIMAL T111
Brand: Fimal

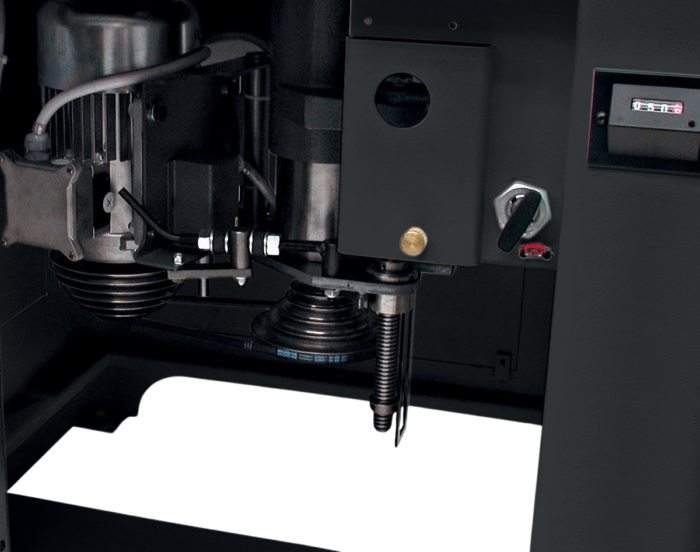

The bottom spindle moulder allows precise shaping of the edges and surfaces of wooden parts. The maximum spindle extension is 180 mm.
Technical features and options
- Fixed Worktable Size: 1200 x 700 mm
- Usable Spindle Height:
- D.35/30 mm – 140 mm
- D.40/50 mm – 180 mm
- Max Spindle Protrusion Above Worktable: 180 mm

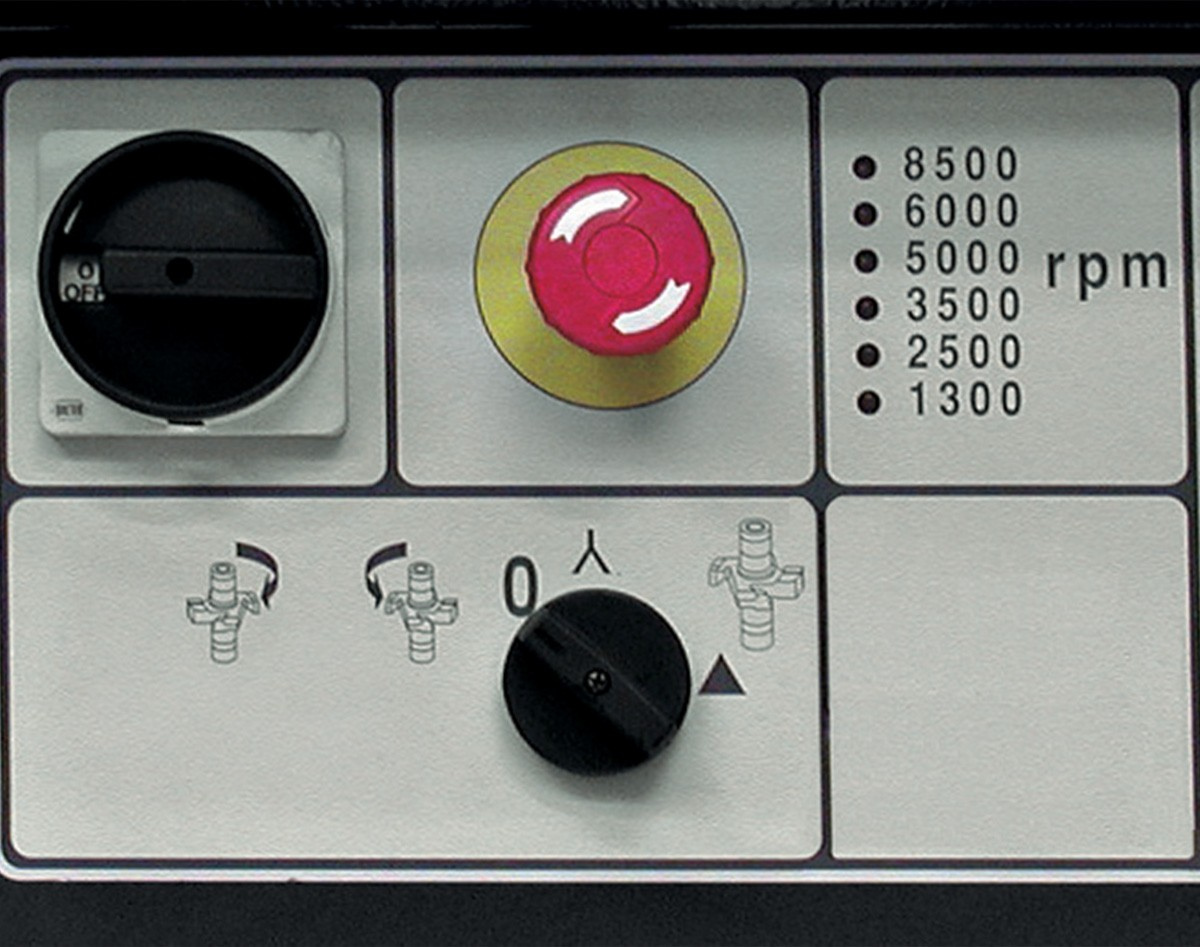

- Rotation Speeds: 1300 / 2500 / 3500 / 5000 / 6000 / 8500 RPM
- Max Size of Retractable Tool Under the Table: 320 x 50 mm
- Main Motor Power: 4 kW (5.5 HP) 50 Hz
- Noise Level (Acc. EN27960 Rule): 82.9 – 86.8 dB(A)
Standard Equipment:
- Adjustable Fence (Max Tool D.250 mm), complete with:
- Readout and hand wheel for inlet and outlet foot displacement
- Dust Extraction Hood: D.120 mm
- Dust Extraction Hood in the Lower Part of the Table: D.120 mm
- Pedal-Operated Mechanical Brake
- Spindle Rise & Fall Mechanical Display with decimal precision
- Big Front Door for simpler speed changes
