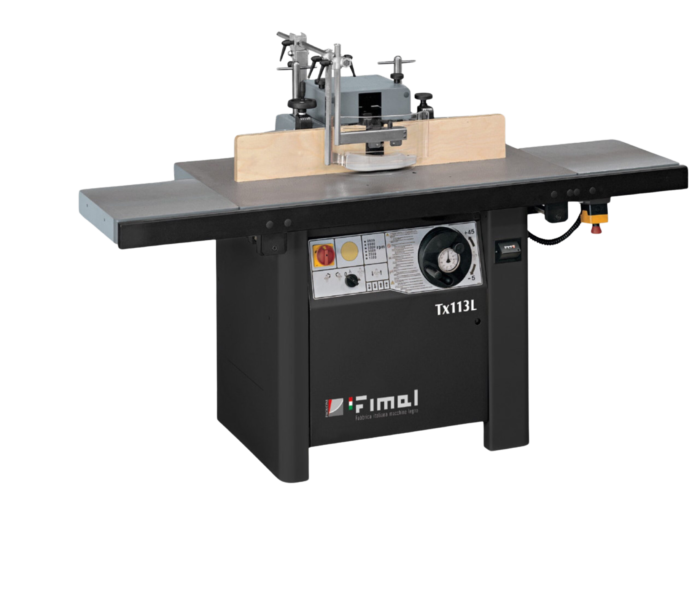

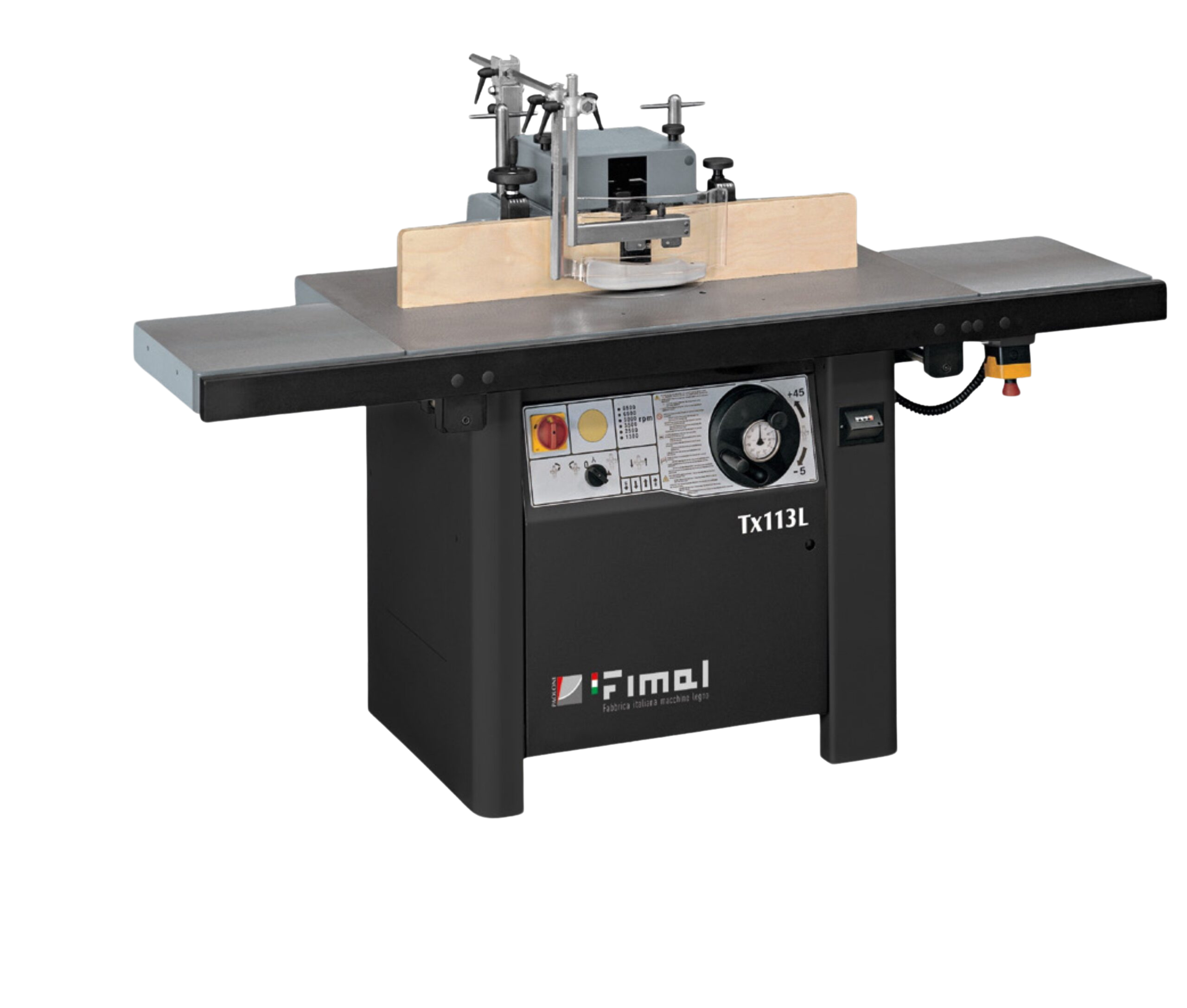

MILLING MACHINE FIMAL TX 113L
Brand: Fimal
The bottom spindle router allows precise shaping of the edges and surfaces of wooden parts. The TX113L has unlimited possibilities thanks to the spindle tilt function.
Technical features and options
- Fixed worktable size 1200×700 mm
- Usable spindle height d.35/30 – 1.25″. 140 mm
- Usable spindle height d.40/50 180 mm
- Max spindle protrusion above worktable 190 mm
- Rotation speeds 1300/2500/3500/5000/6000/8500 rpm
- Max size of retractable tool under the table 320×50 mm
- Main motor power 4kw (5.5hp) 50hz
- Noise level acc. en27960 rule 82.9-86.8 db(a)

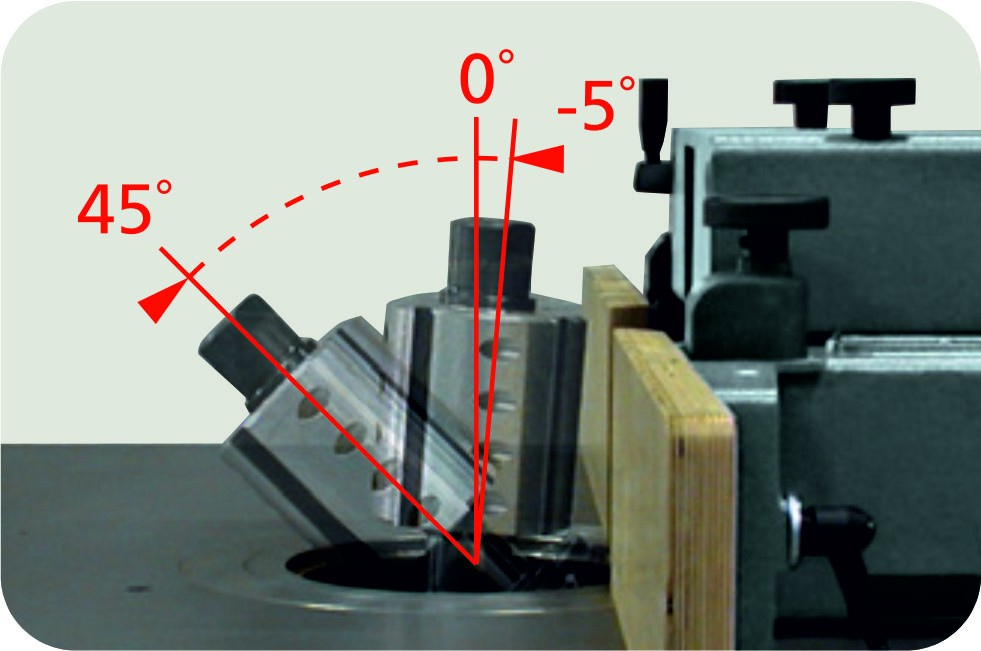

- Spindle tilting range -5° +45°
- Adjustable fence (max tool d.250 mm) complete with :
– readout and hand wheel for total fence displacement
– readout and hand wheel for inlet foot displacement
– dust extraction hood d.120mm
– automatic rise and fall with decimal pulses adjustment
– version “L” ce: ce-rules compliant spindle moulder with
– worktable dimensions 2000×700 mm
– table frontal enlargement 400 mm
