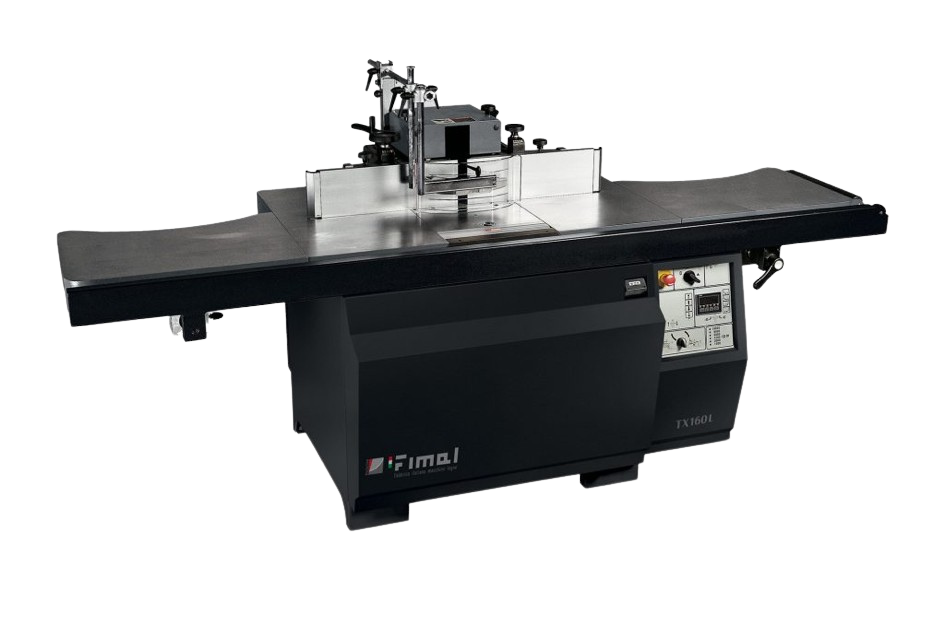

MILLING MACHINE FIMAL TX160L
Brand: Fimal
The bottom spindle moulder allows precise shaping of the edges and surfaces of wooden parts. The TX160L has unlimited possibilities thanks to its spindle tilt function and large working table surface.
Technical features and options

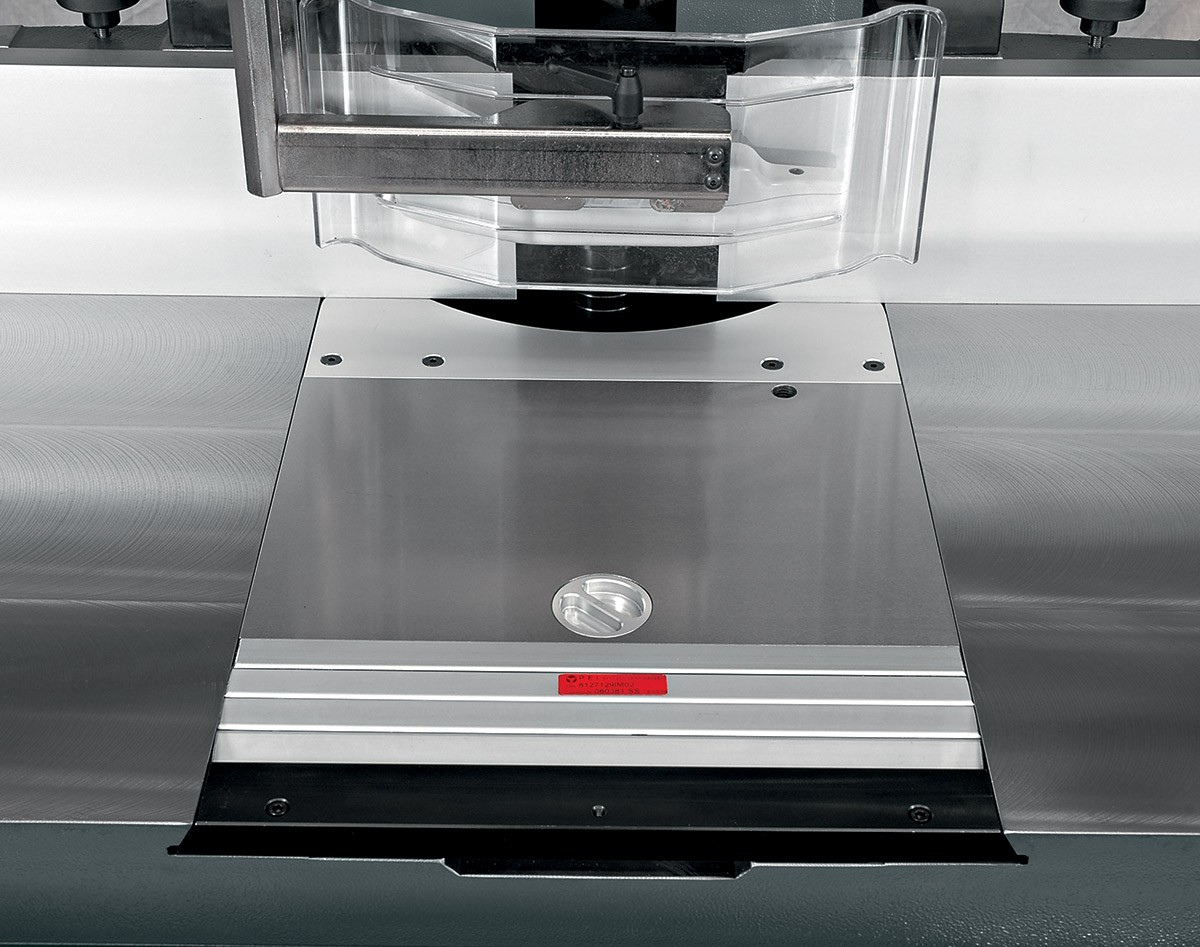

- Dimensions of the working table 1200×780 mm
- Til table spindle -45° to 45°
- Max tool height with d.35/30 140 mm
- Max tool height with d.40/50 180 mm
- The spindle runs on double bearings 3000/4500/6000/8000/10000 rpm.
- Max. size of the tool hidden under the table 320×50 mm
- Main engine power 5.5 kW (7.5HP) 50 Hz
- Noise level according to EN27960 83.9-87.3 dB (A)
Standard equipment:

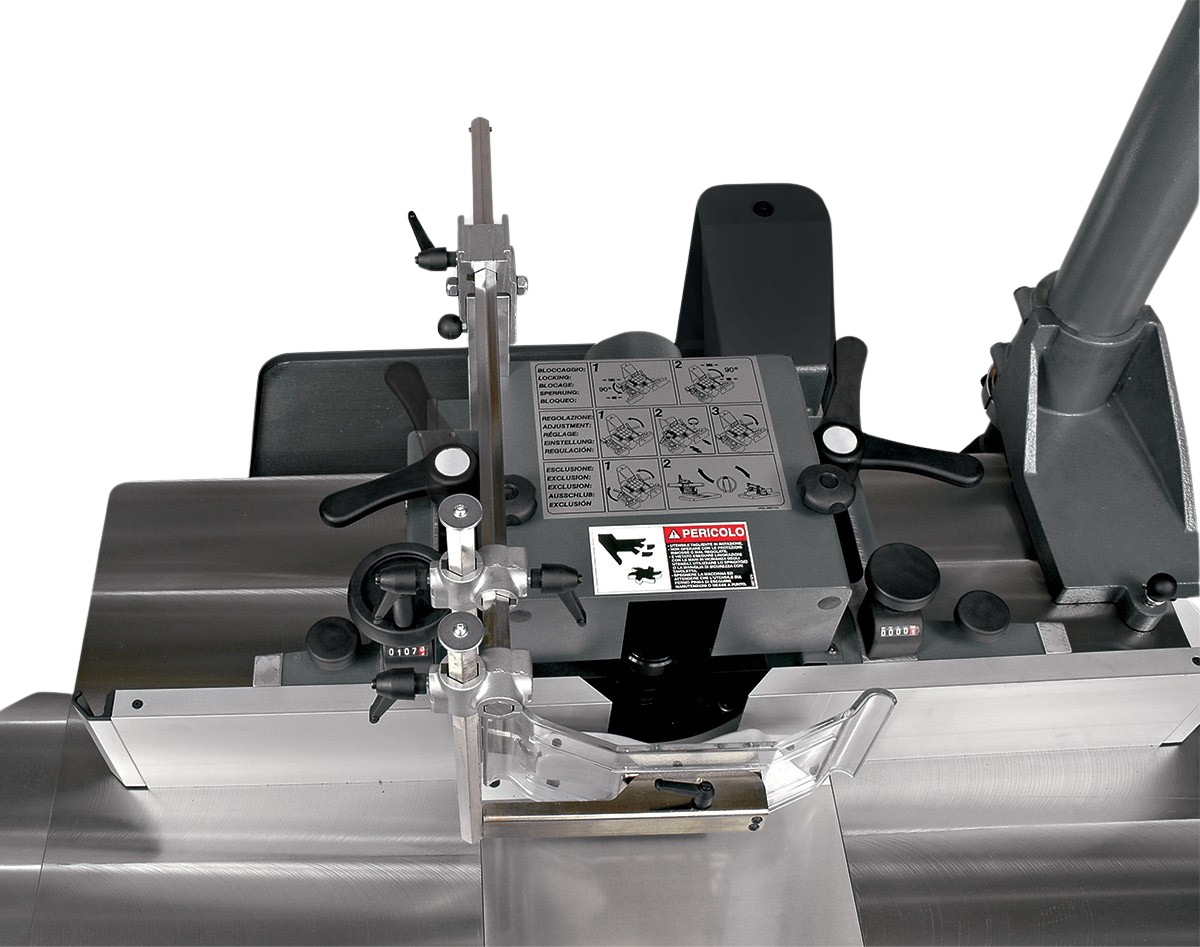

- Adjustable guard (max. tool d.250mm) in a set with a hand wheel and readout, with a motorized unfolding system thanks to which we can clean the table in a few seconds
- Quick locking system of the fence.
- Dust extraction connection on the cover d.120 mm
- Aluminum rulers
- Bottom extraction connection d.120 mm
- Raising and lowering the spindle with mechanical readout
- Electrical reading of the spindle inclination
- Mechanical brake activated by pedal
- Automatic raising and lowering of the spindle with an accuracy of 0.1 mm
- Automatic spindle tilting with an accuracy of 0.1
- Adjustable pressure for elements, set depending on the diameter of the tool
- Enlarged case front “panel” to facilitate spindle speed changes
Additional options included in the price:
- Main engine power 7.5 kW
- “L” version – CE compliant milling machine with extended tables
- Table dimensions 2500×780 mm
- Extending the table with a 400mm extendable support
- Additional roll on the right side of the table
