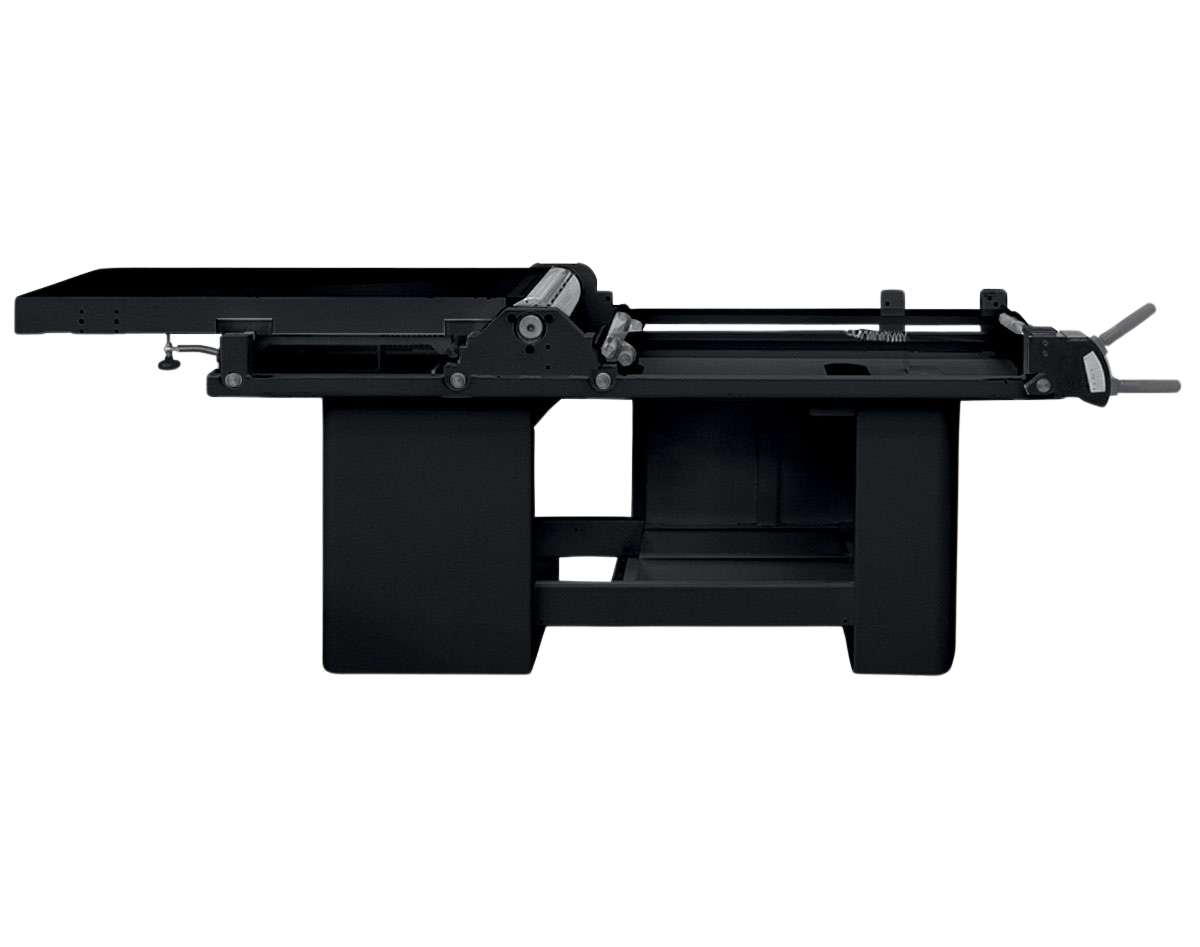

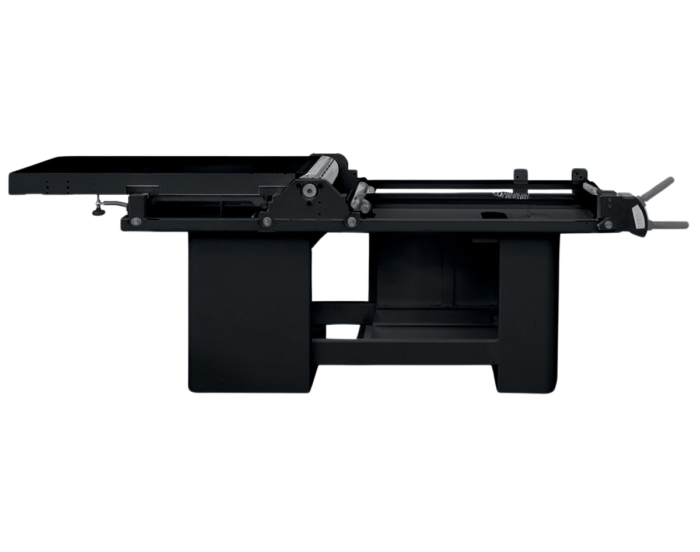

JOINTER FIMAL PF 530A
JOINTER FIMAL PF 530A - Image 2

JOINTER FIMAL PF 530A

Categories: ,

Brand: Fimal

The wire planer is a machine used in woodworking for the precise calibration of the geometry and levelling of the surface of wooden parts. The PF530A model guarantees high-precision machining thanks to its automatically adjustable infeed table.

Technical features and options

  • Usable working width: 530 mm
  • Total table length: 3000 mm
  • Feed table length: 1800 mm
  • Tilt (0-45º) guide: 1500×175 mm
  • Main motor power: 4 kW 50 Hz
  • Noise level according to EN27960 standard: 82.8-88.8 dB(A)
  • Spindle guard
  • 4 mounted knives
  • Planing depth gauge
  • Electronically controlled feed table movement
  • Maximum material removal: 8 mm
  • Electrical installation in compliance with CE standards
  • Electromagnetic brake
  • Dust extraction port ø 150 mm
  • Machine weight: 700 kg
