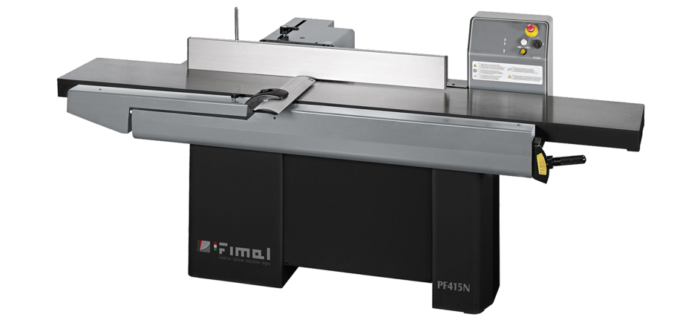

JOINTER FIMAL PF415N

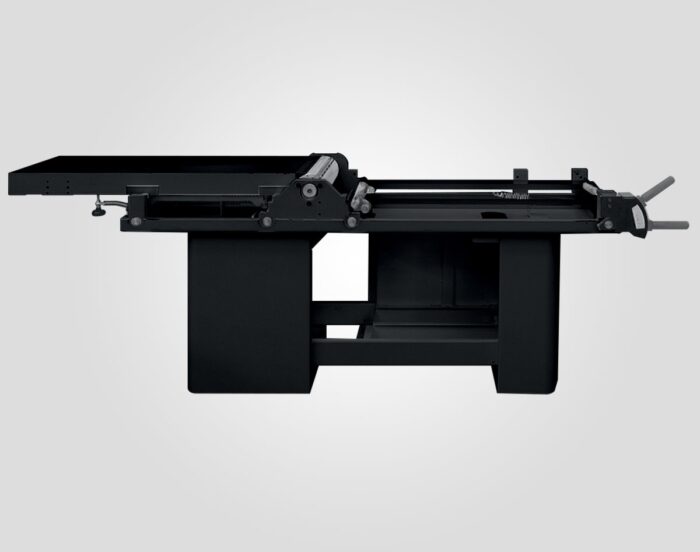

JOINTER FIMAL PF415N - Image 2

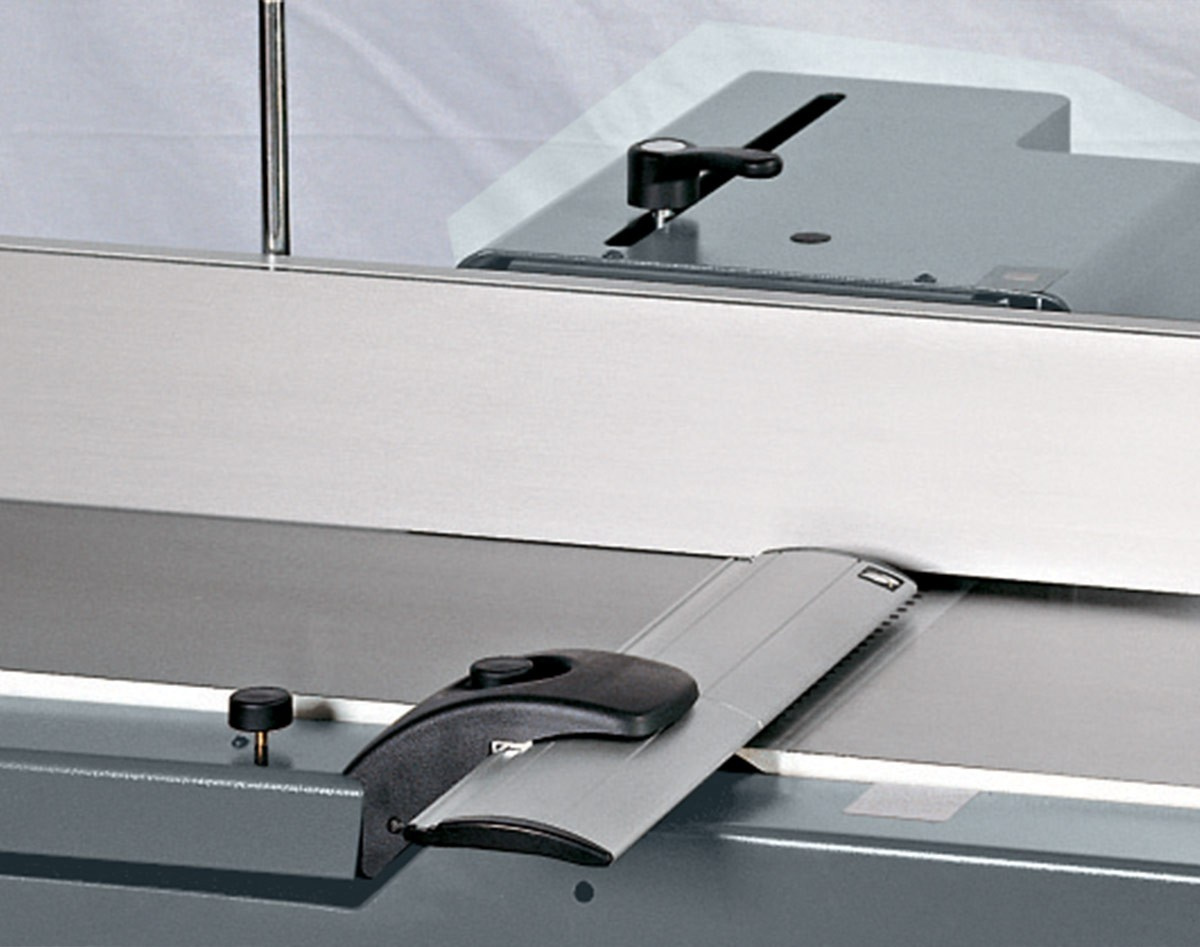

JOINTER FIMAL PF415N - Image 3

JOINTER FIMAL PF415N

Categories: ,

Brand: Fimal

The wire planner is a machine used in woodworking for the precise calibration of the geometry and levelling of the surface of wooden parts. Model PF415 N manually adjustable infeed table.

Technical features and options

  • Useful working width of 415 mm
  • Total length of the table: 2700 mm
  • Feeding table length: 1560 mm
  • Inclined (0-45′) guide: 1200x 175 mm
  • Main motor power: 3 kW 50 Hz
  • Noise level according to EN27960: 83.4-89.5 dB (A)
  • Spindle cover
  • Readout of planing depth
  • Table height adjustment manually
  • Max amount of collected material 8mm
  • Electrical installation made in accordance with CE Standards
  • Overload protection
  • Emergency stop button
  • Lockable main switch
  • Extraction port ø 150
  • Machine weight: 700 kg
