PLANER FIMAL S53 N
PLANER FIMAL S53 N - Image 2
PLANER FIMAL S53 N - Image 3

PLANER FIMAL S53 N

Categories: ,

Brand: Fimal

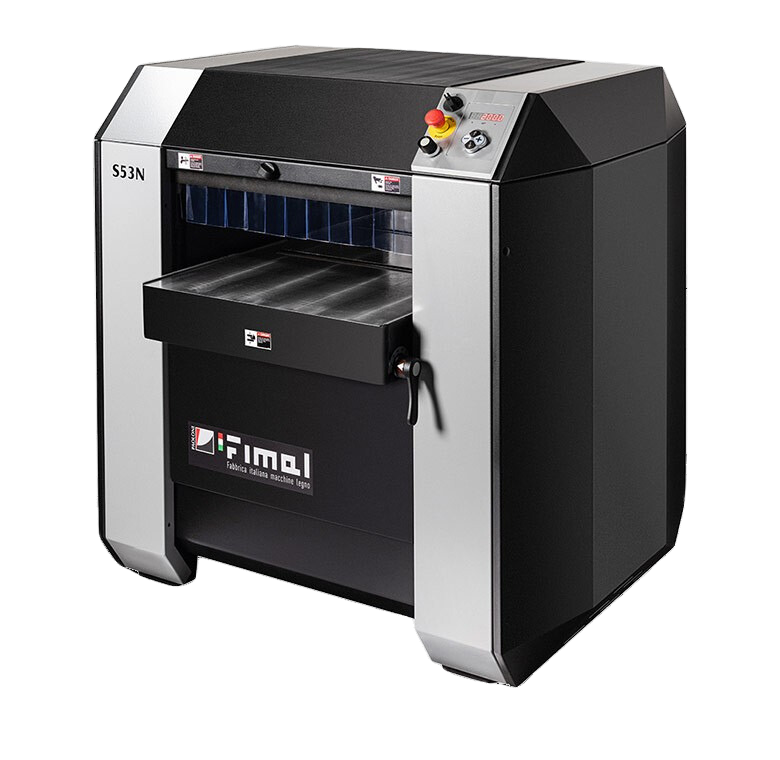

Fimal S53 N thickness planer with spiral shaft and 530 mm wide work table.

Technical features and options

  • Working Width: 530 mm
  • Min/Max Working Height: 3/310 mm
  • Max Removal: 8 mm
  • Spindle Diameter: 120 mm
  • Number of Knives: 4
  • Spindle Rotation Speed: 4800 rpm
  • Feeding Speed with Inverter: 6/20 m/min
  • Min Feeded Length: 250 mm
  • Main Motor Power: 4 kW (5.5 HP) 50 Hz
  • Noise Level Acc. EN27960 Rules: 86-90 dB(A)

Standard equipment:

  • Thicknessing Table Lifting: Through 4 Trapezoidal Screws
  • Automatic Thicknessing Table Rise and Fall: With Micrometric Adjustment
  • Working Height Read-Out: With Decimal Precision
  • Dust Extraction Hood: D.150 mm
  • Safety Microswitch on Door: CE Norms
  • Electrical Installation: Compliant to EC Rules
  • Magnetothermal Overload Cutout
  • Key-Locking Main Switch
  • Inlet and Outlet Emergency Stop Button
  • Electromagnetic Brake
  • Weight: 690 kg

Additional option included in price:

  • 28/06 Spiral Spindle with 3 Spirals Complete with:
    • Hard Metal Inserts 15x15x2.5 mm R95 37° with Reduced Tolerance
    • 2 Bit Torx T20
    • 1 Torque
