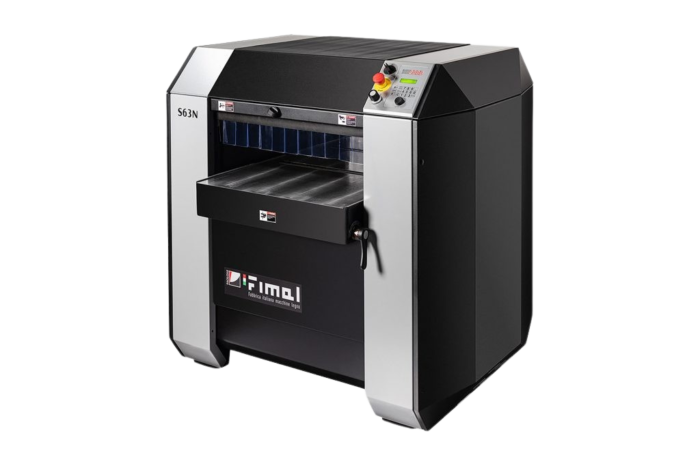

PLANER FIMAL S63 N
PLANER FIMAL S63 N - Image 2
PLANER FIMAL S63 N - Image 3

PLANER FIMAL S63 N

Categories: ,

Brand: Fimal

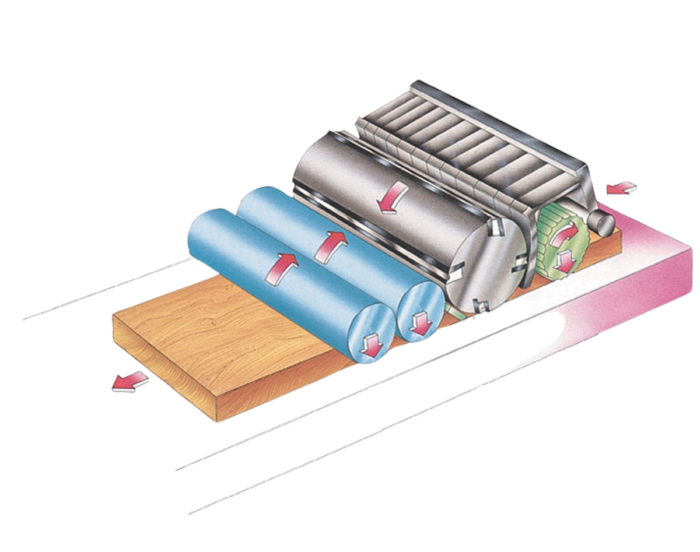

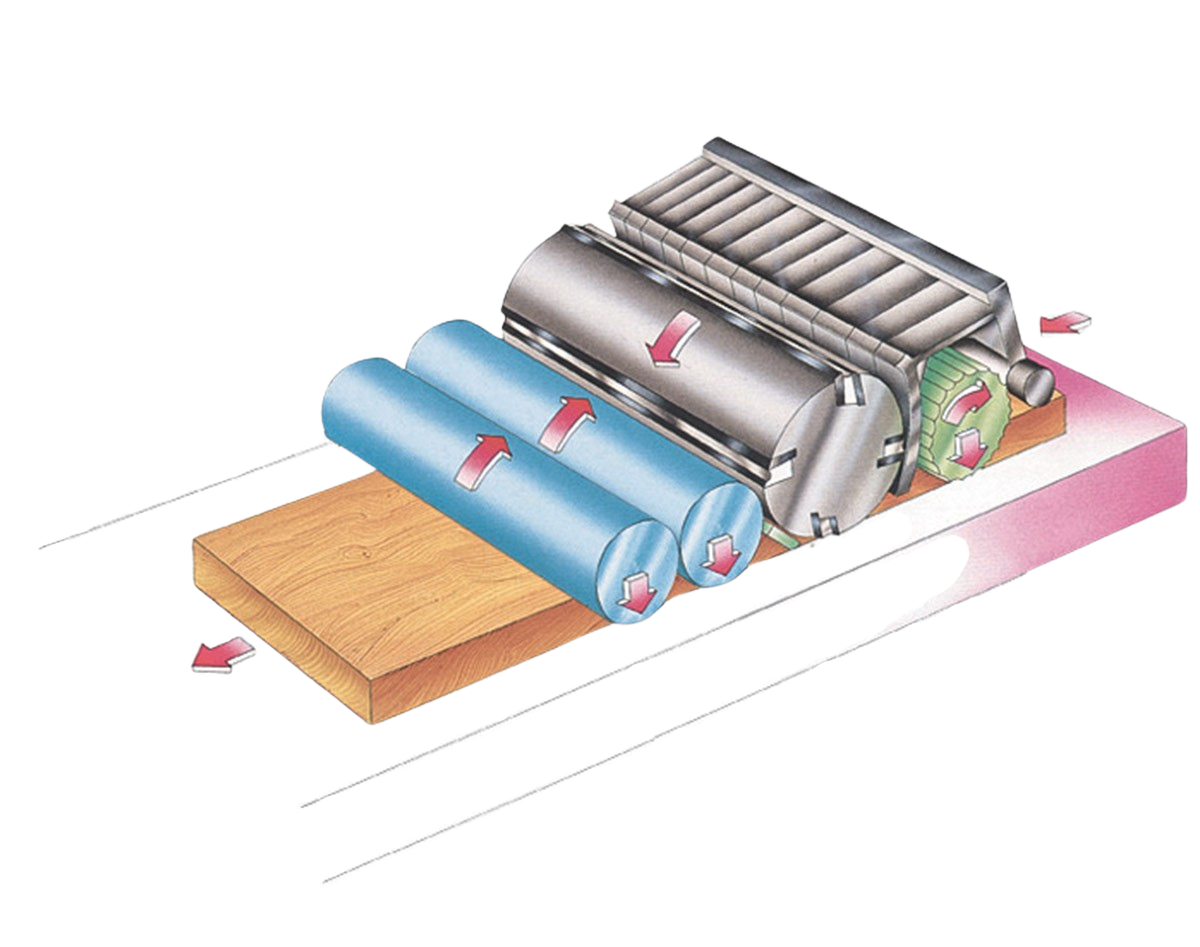

Thickness planer with spiral shaft. The working width of the machine is 630 mm.

Technical features and options

  • Working width: 630 mm
  • Min/max working height: 3/310 mm
  • Max removal: 8 mm
  • Spindle diameter: 120 mm
  • Number of knives: 4
  • Spindle rotation speed: 4800 rpm
  • Feeding speed with inverter: 6/20 m/min
  • Min feeded length: 250 mm
  • Main motor power: 7.5 kW
  • Noise level (according to EN 27960 rules): 86-90 dB(A)

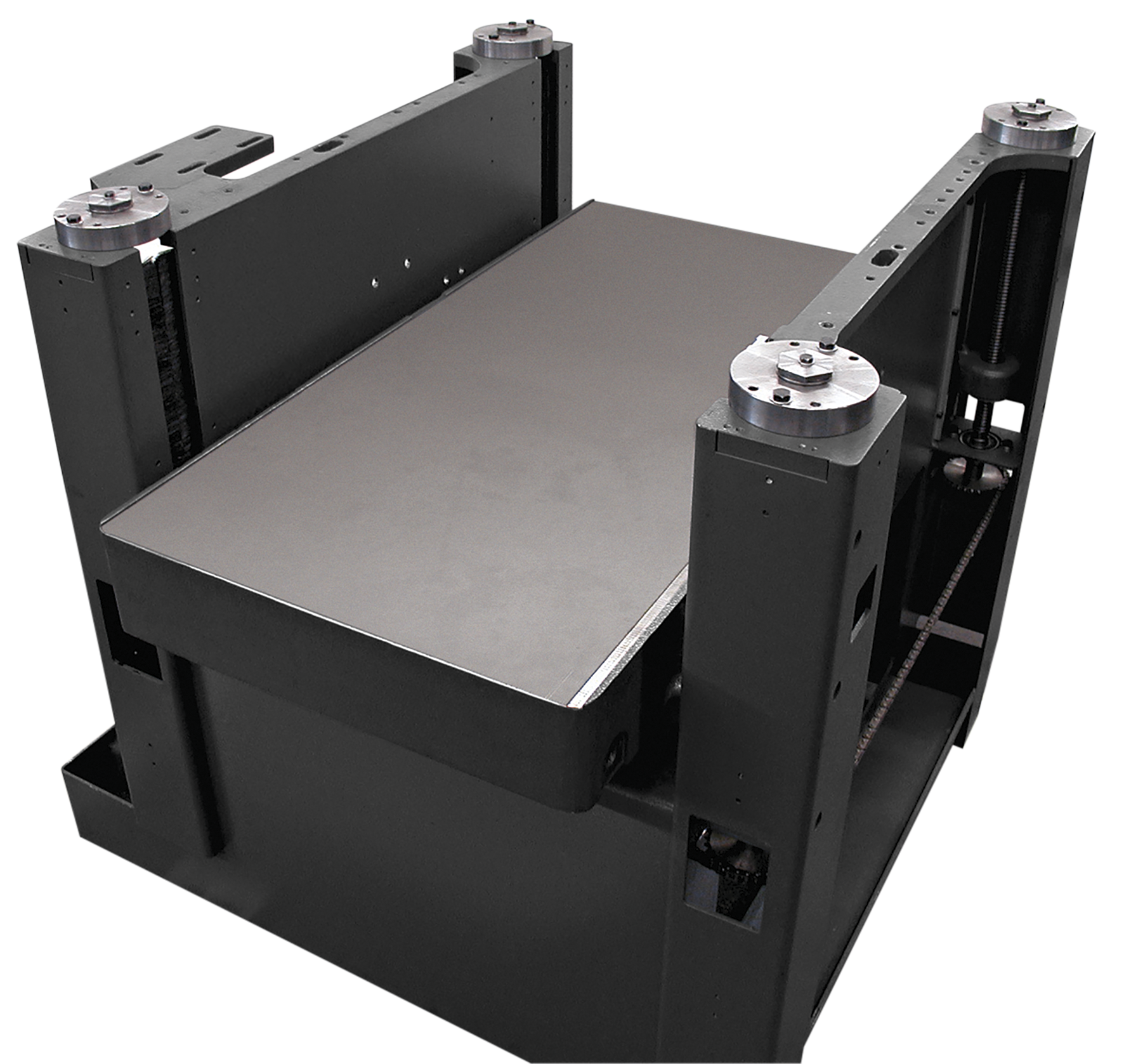

  • Thicknessing table lifting through 4 trapezoidal screws
  • Automatic thicknessing table rise and fall with micrometric adjustment
  • Working height read-out with decimal precision
  • Dust extraction hood: d.150 mm
  • Safety microswitch on door (CE norms)
  • Electrical installation compliant with CE rules
  • Magnetothermal overload cutout
  • Key-locking main switch
  • Inlet and outlet emergency stop button
  • Electromagnetic brake
  • Safety microswitch on door
  • Weight: 790 kg
