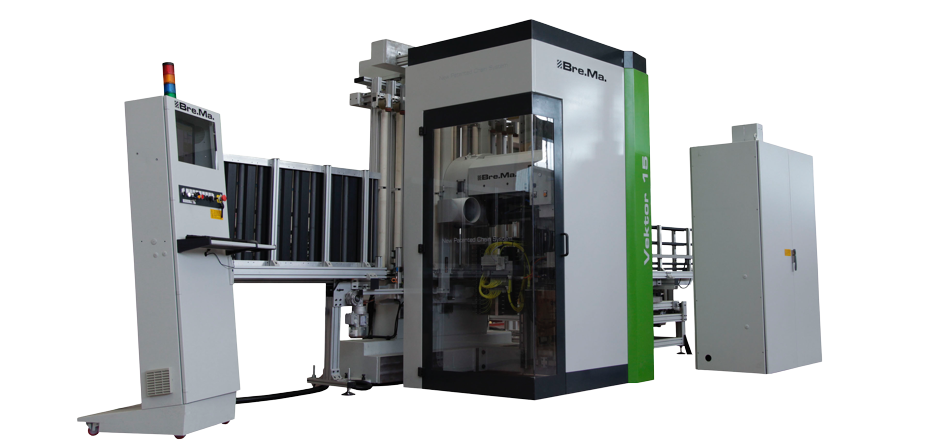

CNC VERTICAL DRILLING MACHINE AND INSERTION MACHINE BIESSE BREMA VEKTOR 15 540
Brand: Biesse
The Brema VEKTOR 15 is a vertical, flexible, through-feed NC machine designed for drilling and milling panels of various sizes, without the need for manual setup. This solution is ideal for just-in-time production, for companies seeking a high-performance technological system in a compact space. Maximum machining operation quality. Shorter cycle times. Smooth and efficient production flow.
Technical features and options
- CNC Machining Center with working area “X” of 3200 mm and working area “Y” of 1300 mm
(The processed panels may have different sizes depending on the transport systems.)
1. Processed Panels:
- Length X: From 300 to 3200 mm,
- Height Y: From 40 to 1300 mm,
- Thickness Z: From 8 to 80 mm,
- Maximum panel weight for processing: 50 kg.
2. Tool Working Area:
Length (X):
- Drilling: From 0 to 3200 mm,
- Milling (with electro spindle): From 0 to 3200 mm,
- Grooving (with saw) along X direction: From 0 to 3200 mm,
Height (Y):
- Drilling: From 0 to 1300 mm,
- Milling (with electric spindle): From 0 to 1300 mm,
- Grooving (with saw) along Y direction: From 5 to 1300 mm,
Thickness (Z):
- Horizontal Holes: Up to 350 mm,
- From 0 to 35 mm.
