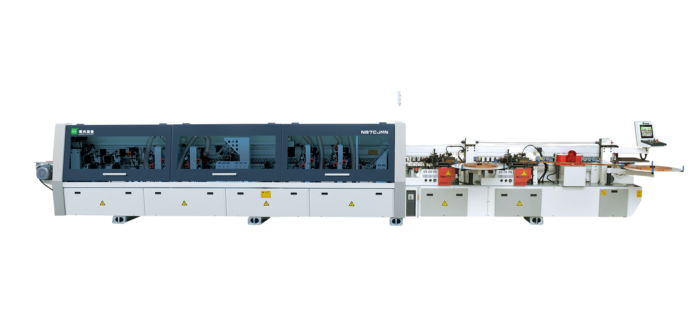

AUTOMATIC EDGE BANDING FOR NARROW ELEMENTS NANXING NB7CJMN

AUTOMATIC EDGE BANDING FOR NARROW ELEMENTS NANXING NB7CJMN

Categories: ,

Brand: Nanxing

NB7CJMN

EDGE BANDING MACHINE WITH DOUBLE GLUING UNITS FOR NARROW PARTS



Technical features and options

  1. Narrow long edge: 40×200×9 mm,
  2. Narrow short edge: 45×200×9 mm,
  3. Panel thickness(narrow edge Corner trim on) ≤25 mm,
  4. Panel thickness: 9-60 mm,
  5. Edge tape thickness: 0.4-3 mm,
  6. Feed speed: 16/20/24 m/min,
  7. Feed speed(narrow edge Corner trim on): 16 m/min,
  8. Dust extraction: φ125 mm×5,
  9. Total power: 30 kw,
  10. Overall dimensio: 9800×1050×1650 mm,
  11. Net weight: 3670 kg.

Machine equipment:

  • Compact press rollers cooperate with additional assistance rollers on front and in between make it possible to do edge banding work for min 30mm work piece in width,
  • Two sets of gluing, fine trimming, scraping and buffing units make it easy and fast to switch between dark and light color glue which meet flexible edge banding requirements,
  • Cutters of one set of fine trimming, scraping are able to move backwards automatically if changing to the other color glue, set-up time tends to zero,
  • Low investment, big benefits,
  • With additional pre-milling and corner trimming function,
  • Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming,
  • Most electric components are in world famous brand,
