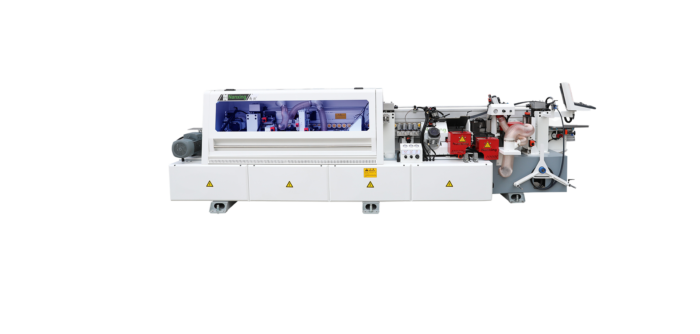

EDGE BANDING NANXING NB5XE
Brand: Nanxing

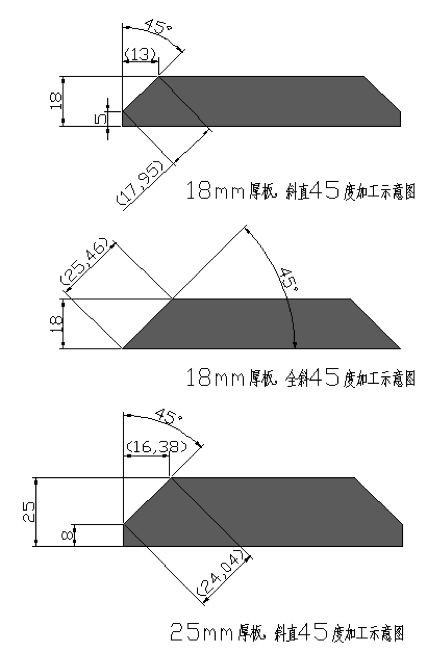

Create handle-free doors and drawers with the NB5XE Edgebander. Forget sawing and manual amendments; create finger pull, bevel edge and shark nose profiles with ease. With sophisticated machinery, you can make these product lines in-house, automated and extremely profitable.
Technical features and options
- Panel length: ≥250 mm,
- Panel width: ≥250 mm,
- Min panel size: 250 × 250 mm,
- Panel thickness: 12-25 mm,
- Edge tape thickness: 0.6-2 mm,
- Feeding speed: 12/14 m/min,
- Dust collector φ125 mm×3,
- Total power: 19 kW,
- Overall dimension: 5670 × 1050 × 1550 mm,
- Net weight: 1950 kg.
