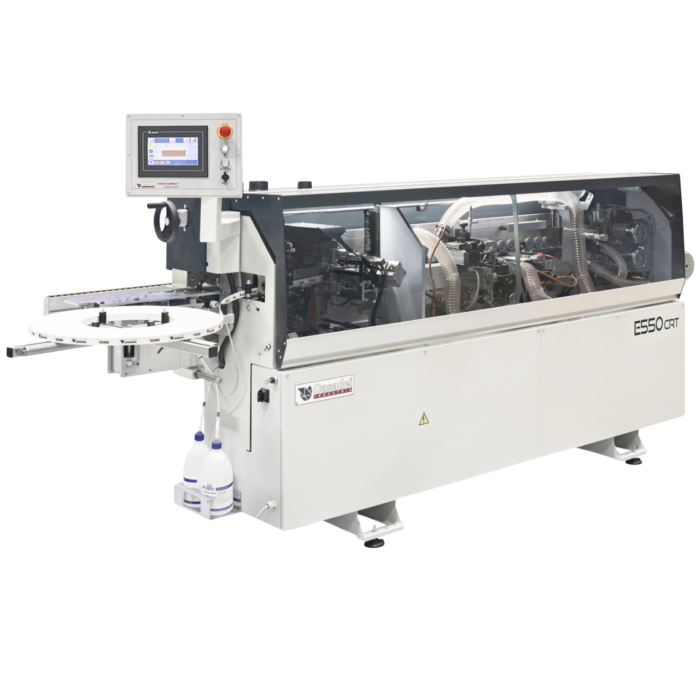

EDGE BANDER CASADEI E550 CRT
Brand: Casadei

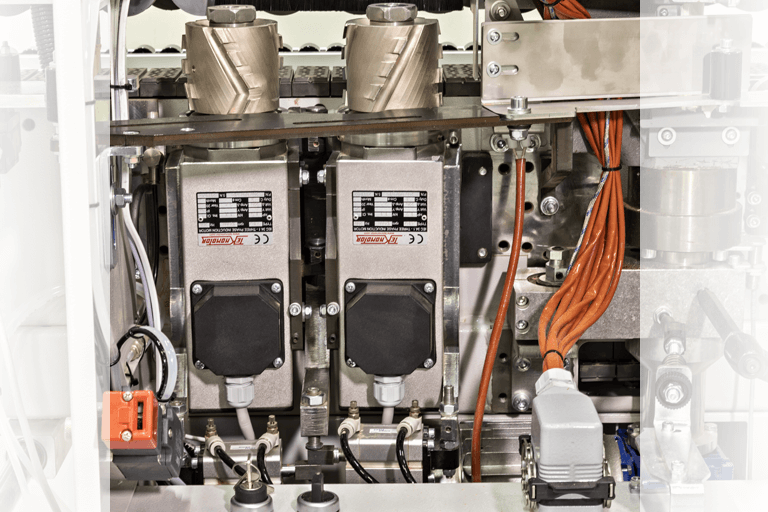

Automatic edge bander with hybrid superior hot melt EVA/PUR polyurethanic (standard), chain panel feeding, pre-milling and corner rounding units.
Technical features and options
• Feed speed: 9 m/min
• Allowed plate thickness: 8 – 50 mm
• Allowed edge thickness in rolls or strips: 0.4 – 3 mm
• Allowed edge thickness in strips (manual feed): max 5 mm
• Maximum edge roll diameter: 800 mm
• Minimum plate length: 110 mm
• Minimum plate length for cutting unit VR1/VS1:
– With workpiece height h=18 mm: 180 mm
– With workpiece height h=50 mm: 210 mm
• Minimum plate width: 70 mm
Machine equipment:
• Transport belt equipped with rubber blocks
• Pressure beam with rubber rollers mounted on bearings
• Automatic edge feeder

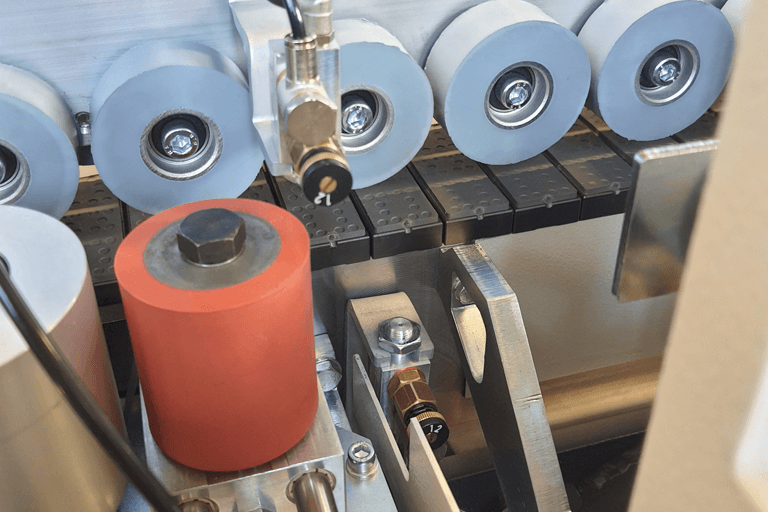

• Pressure rollers
• Extendable support ensuring safe placement of large workpieces

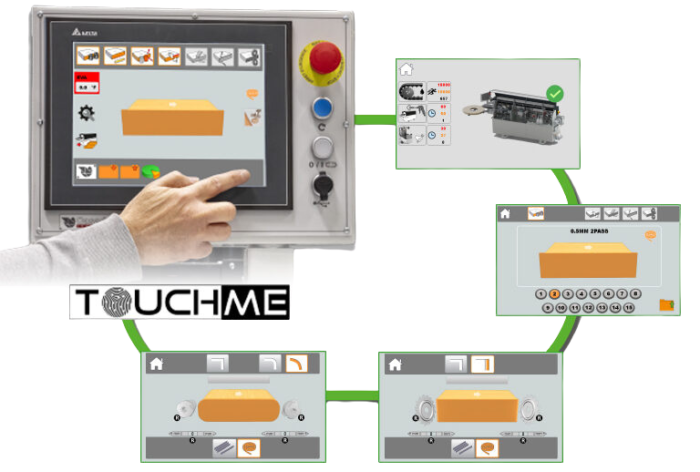

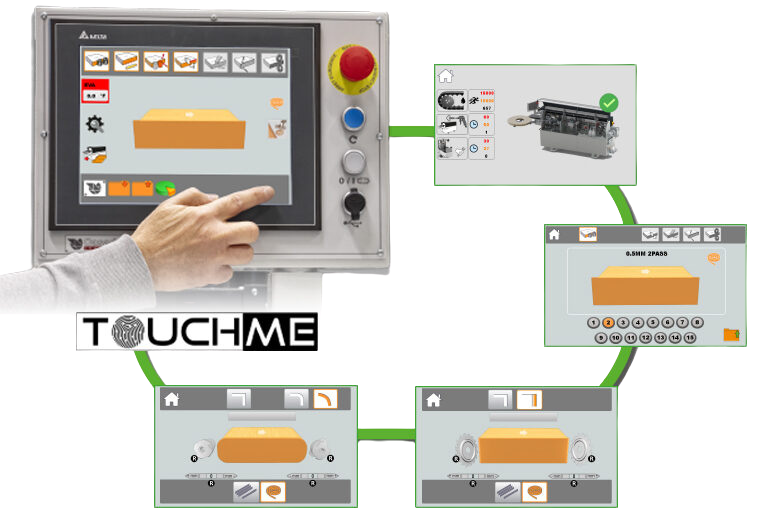

• Touch control panel
• Automatic spraying unit for anti-adhesion agent (facilitates cleaning of workpieces from glue and reduces the likelihood of glue excess formation)
• Heating lamp
• Quick-change glue pot system FLEX
• LED lighting inside the machine
• CE Certification
