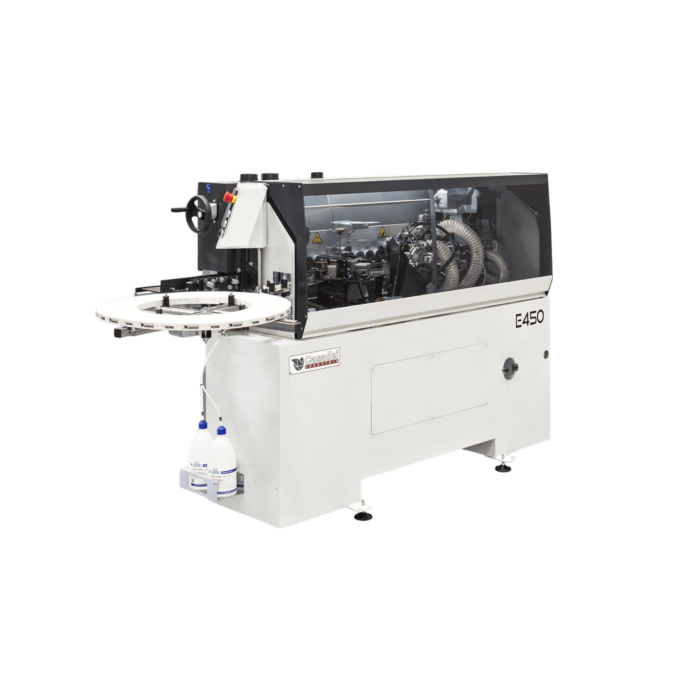

EDGE BANDER CASADEI E450
EDGE BANDER CASADEI E450 - Image 2
EDGE BANDER CASADEI E450 - Image 3
EDGE BANDER CASADEI E450 - Image 4

EDGE BANDER CASADEI E450

Categories: ,

Brand: Casadei

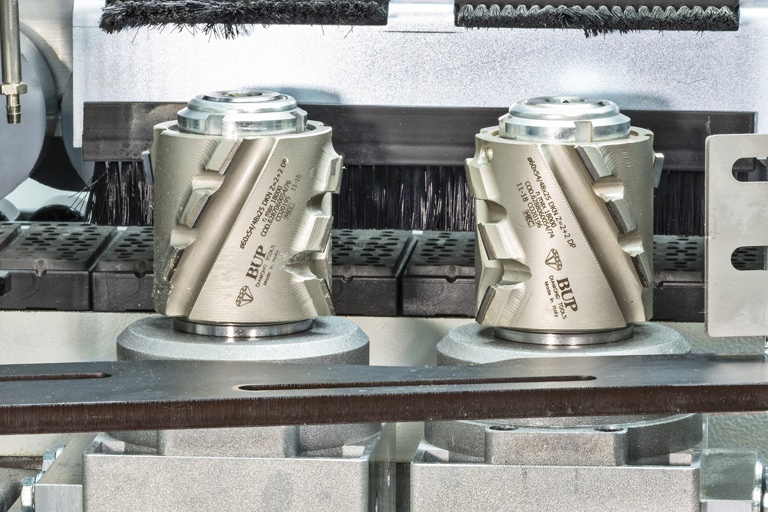

Automatic edge bander with inferior holt- melt glue pot (EVA), chain panel – feeding and pre-milling.

Technical features and options

  • Feed speed: 7 m/min
  • Allowable board thickness: 8 – 45 mm
  • Allowable edge thickness in rolls: 0.4 – 3 mm
  • Allowable edge thickness in strips: max 5 mm
  • Maximum edge roll diameter: 800 mm
  • Minimum board length: 210 mm
  • Minimum board width: 95 mm

Machine equipment:

  • Conveyor belt equipped with rubber blocks
  • Pressure beam with rubber rollers mounted on bearings
  • Automatic edge feeder
  • Pressure rollers
  • Extendable support ensuring safe placement of large panels

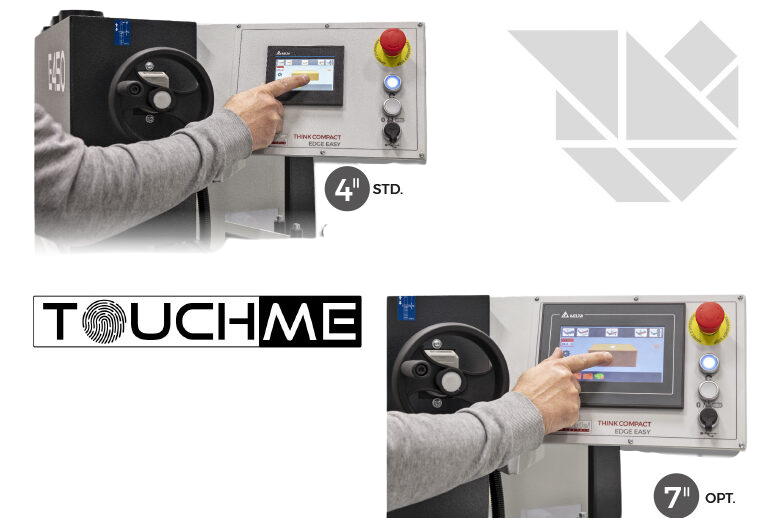

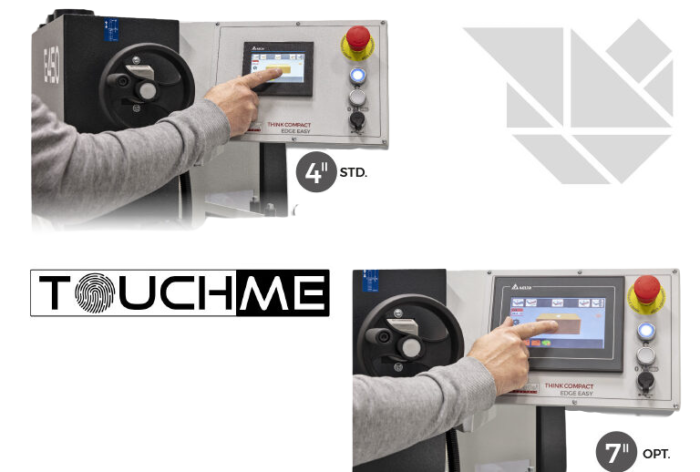

  • Touchscreen control panel
  • CE Certification
