EDGE BANDER SOFTFORMING NANXING NB875A
Brand: Nanxing
The Nanxing Nb875A Softforming Edge Banding Machine Is A Heavy-Duty, CNC-processed industrial machine designed for precise and efficient edge banding.
Technical features and options
- Heavy-duty welded, laser-cut steel frame – CNC machined & heat-treated for rigidity and reduced vibration.
- Professional assembly line – each machine certified with a Quality Certificate.
- Semi-circular conveyor guide – stable transport of wide panels.
- Aluminum pressure beam – automatic height adjustment with touchscreen input.
- Dual glue pre-melters – automatic glue feeding, precise control, minimal waste.
- Servo-driven tape feeding with pneumatic guillotine cutting.
- Complete processing units:
-
Pre-milling for edge preparation
-

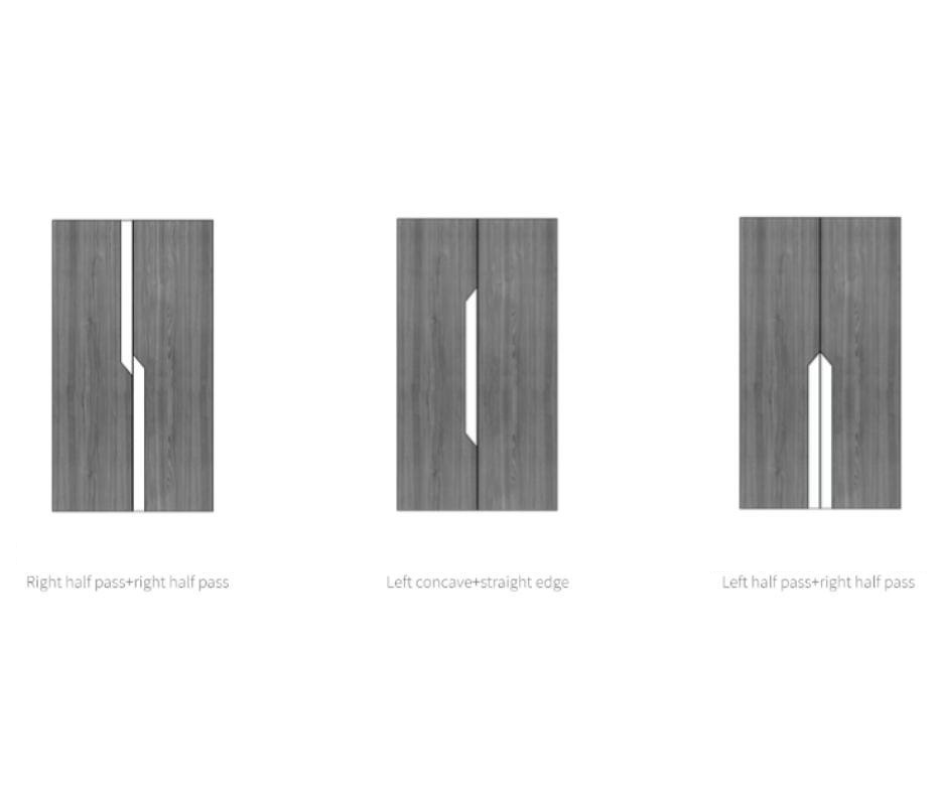

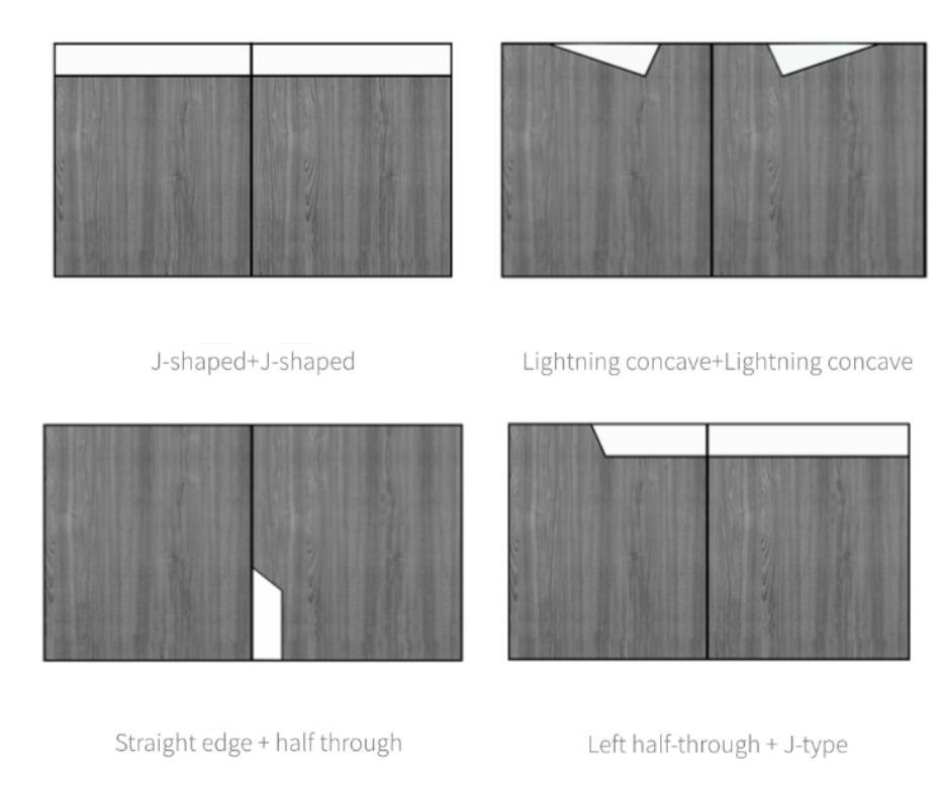

Profile milling (J & C profiles – one-click switch)
-
End cutting, rough & fine trimming
-
Scrapers (edge & glue)
-
Buffing & cleaning units for flawless finish
-
- Heating & softforming: pre-heating lamp + hot air nozzles maintain glue viscosity.
- Operator safety: automatic thickness detection, spacing control, full enclosure, emergency stop.
- Smart control system:
-
Industrial PC + PLC + encoder
-
24’’ industrial touchscreen
-
Frequency inverters for each motor
-
Barcode reader option.
-

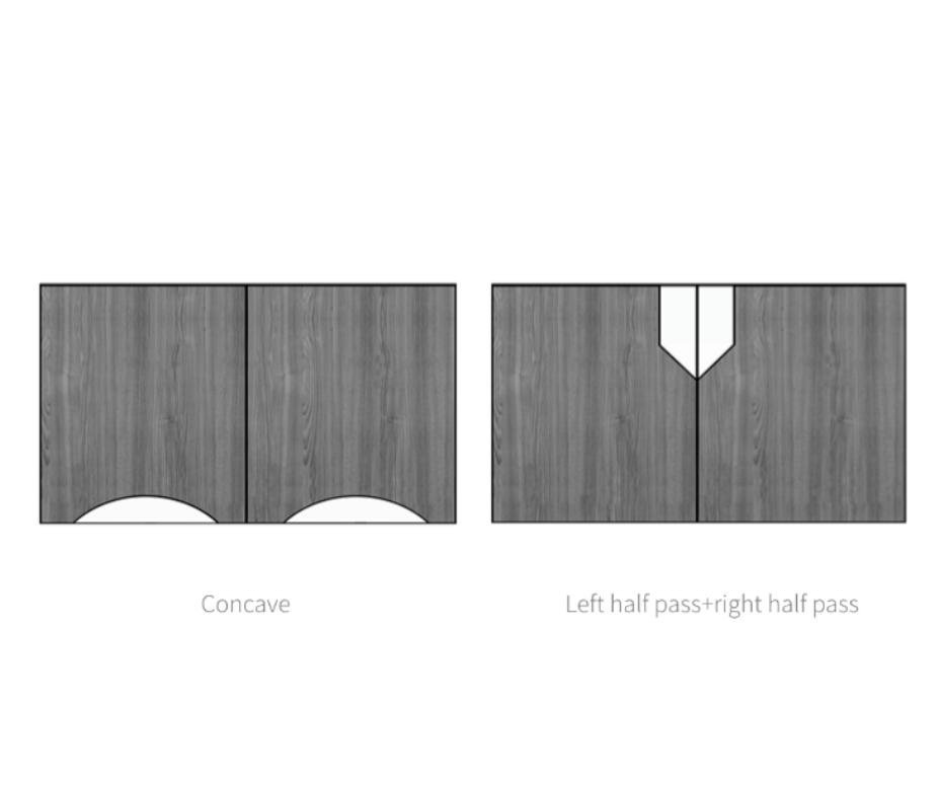

- Panel Length: ≥300 mm (concave center ≥400 mm)
- Panel Width: ≥150 mm
- Panel Thickness: 18 mm (straight edge) / 18–25 mm (softforming)
- Minimum Panel Size: 300 × 150 mm
- Edge Thickness: PVC 0.5–0.6 mm (softforming) / 0.5–1.2 mm (straight edge)
- Feed Speed: 8 m/min
- Power Supply: 380 V; 50 Hz
- Required Air Pressure: 0.7 MPa
- Control System: 24” touchscreen
- Dust Extraction: Φ125 mm × 9
- Control: Encoder, PC
- Total Power: 68 kW
- Approx. Weight: 6,000 kg
- Overall Dimensions: 11,015 × 1,000 × 1,940 mm
