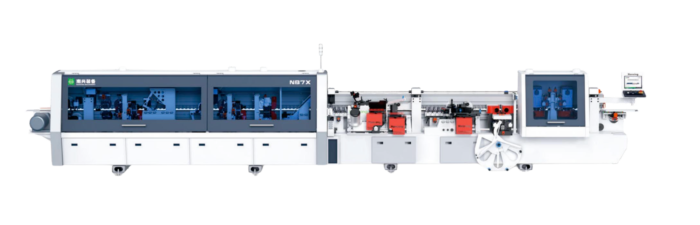

EDGE BANDING MACHINE FOR INCLINED EDGE NANXING NB7X
EDGE BANDING MACHINE FOR INCLINED EDGE NANXING NB7X - Image 2
EDGE BANDING MACHINE FOR INCLINED EDGE NANXING NB7X - Image 3

EDGE BANDING MACHINE FOR INCLINED EDGE NANXING NB7X

Categories: ,

Brand: Nanxing

A switch of a button can alternate between bevel and straight edges, with no additional setup time or disruption to your operation.Featuring twin diamond cutters, twin glue station, plus a twin tape coil magazine, the NB7X is brimming with features

Technical features and options

  • Panel length:≥150 mm,
  • Panel width: ≥120 mm (inclined), ≥150 mm (straight),

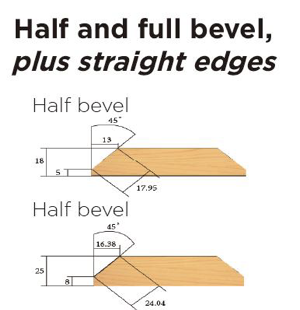

  • Panel thickness: 9-50 mm (straight), 15-25 mm (half bevel), 15-25 mm(fully bevel),
  • Edge tape thickness: 0.4-2 mm,
  • Feeding speed: 14/18 m/min,
  • Min. panel size: ≥150×120 mm,
  • Dust collector φ125 mm×6,
  • Edge Banding Machine for Inclined Edge NB7X 12,
  • Total power: 42 kW,
  • Overall dimension: 9,800 × 1,050× 1,650 mm,
  • Net weight: 3900 kg.
