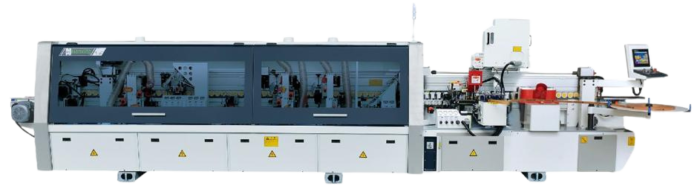

EDGE BANDING NANXING NB536-PC
Brand: Nanxing
Automatic single-sided edge banding machine for the application and processing of flat edging.
Technical features and options
- Panel length: from 120 mm,
- Panel width: from 60 mm,
- Panel thickness: 9-60 mm,
- Edge thickness: 0.4-3 mm,
- Available feed speeds: 16/20/24 m/min,
- Power supply: 380V; 50Hz,
- Air pressure required: 0.7 MPa,
- Total power: 28 kW,
- Approximate machine weight: 3 000 kg,
- Overall dimensions of machine: 5 930 x 1 450 x 1 650 mm,
- PC Control – Operation interface is intuitive and simple, available to control each component independently easy for testing and commission work,
- Controlled by PLC. Operation of the machine from a 7″ touch screen.
