EDGE BANDING MACHINE NANXING MF80S
EDGE BANDING MACHINE NANXING MF80S - Image 2

EDGE BANDING MACHINE NANXING MF80S

Categories: ,

Brand: Nanxing

MF80S

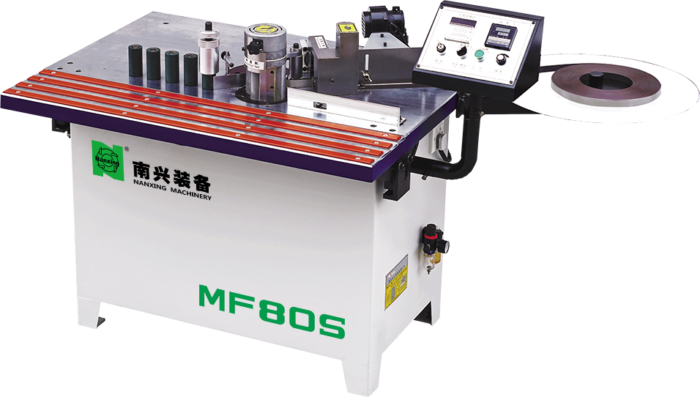

Nanxing edgebanding machine with manual feed. The machine allows curved and straight edgebanding. Glue pot included.

Technical features and options

  • Basic Technical Data:
  1. Width of the perimeter tape 10 – 80 mm,
  2. Thickness of the perimeter tape 0.3 – 3 mm,
  3. Minimum surface radius of 20 mm,
  4. Feeding speed. 1-18 m/min,
  5. Electric heating 2.2 kW,
  6. Motor power 0.2 kW,
  7. Total power 2.5 kW,
  8. Overall dimensions 1180 / 1120 / 1150 mm,
  9. Net weight 310 kg.
  • Characteristics Of The Product Requirements Ce Standards:
  1. Possibility of gluing elements in a straight line and curvilinear edge,
  2. Large-capacity glue pot and Teflon-coated for easy cleaning,
  3. Thick steel table plate with long life and adequate stiffness,
  4. Most of the electronic elements and components installed in the edgebander come from the world’s leading manufacturers.
