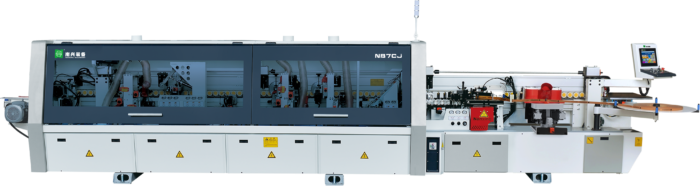

EDGE BANDING MACHINE NANXING NB7CJ

EDGE BANDING MACHINE NANXING NB7CJ

Categories: ,

Brand: Nanxing

NB7CJ

Automatic single-sided edge bander for applying and processing flat edges

Technical features and options

Automatic single-sided edge bander for applying and processing flat edges.

  • Board length: from 120 mm,
  • Plate width: from 80 mm,
  • Board thickness: 10-60 mm,
  • Edge thickness: 0.4-3 mm,
  • Available feed speeds: 16/20/24 m/min,
  • Power supply: 380V; 50Hz,
  • Required air pressure: 0.7 MPa,
  • Total power: 22.4 kW,
  • Approximate weight of the machine: 2,800 kg,
  • Overall dimensions of the machine: 7,700 x 1,450 x 1,650 mm,
  • Control using PLC controllers. Machine operation via a 10-inch touch screen.
