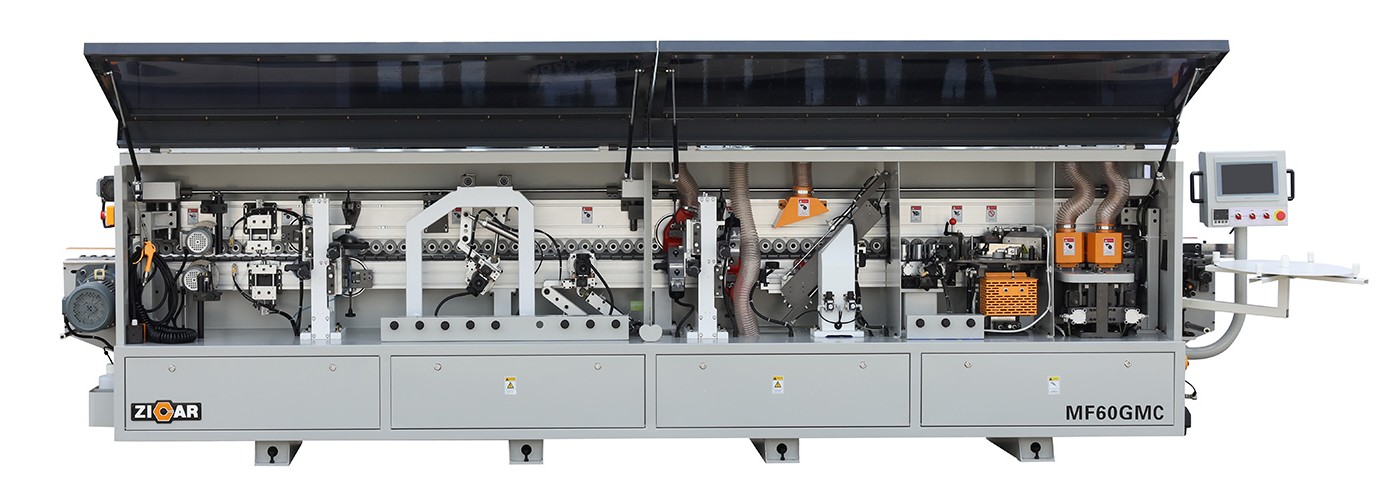

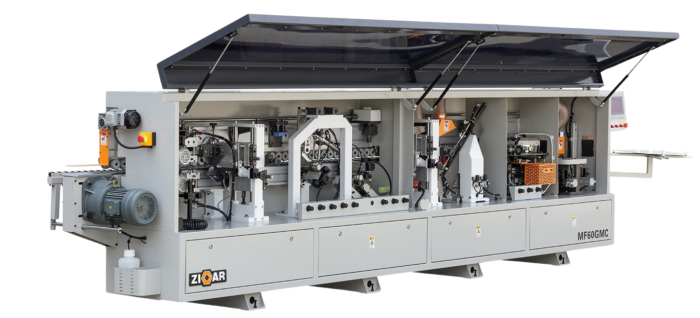

EDGE BANDER ZICAR MF60GMC
Brand: Zicar
ZICAR MF60GM compact edgebanding machine with pre-milling unit and corner rounding unit. Edgebanding machine with high feed speed: 16 m/min.
Technical features and options
- Element thickness 10 – 60 mm
- Edge thickness 0.4 – 3 mm
- Working pressure 0.7 MPA
- Minimum element length 140 mm
- Minimum element width 50 mm
- Feed speed 16 m/min
- Total power 14.5 kW
- Overall dimensions 5350/760/1400 mm
- Net weight 1610 kg
Units:

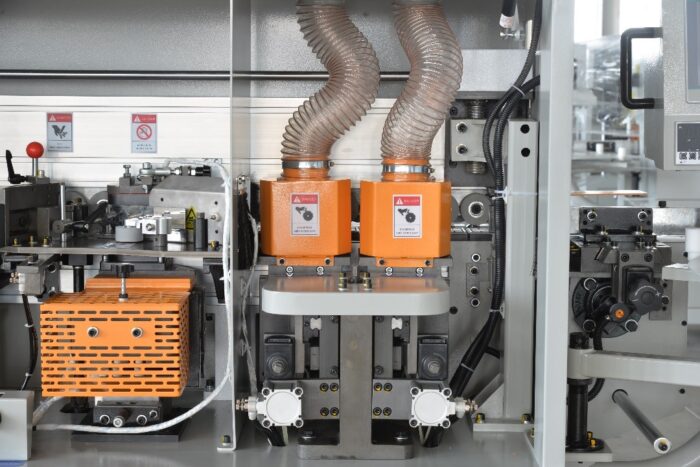

- Pre-milling unit – (two diamond cutters)
Cutters remove excess material so that the edge will be perfectly finished.
Engine power: 2 x 2.2 kW - Heat lamp
Device for heating the edges of the plate. - Glue unit – (possibility of replacing the glue tank)
Glue tank covered with teflon with a large capacity (2 liters). - Cutting unit – (two saws)
Linear guide at 45 degrees. Two motors with a power of 2 x 0.37 kW ensuring high precision in trimming the excess edge. - Milling aggregate – (properly finishes the top and bottom)
The sub-assembly precisely finishes off the excess rim. Two motors with a power of 2 x 0.75 kW. - Corner cutting unit

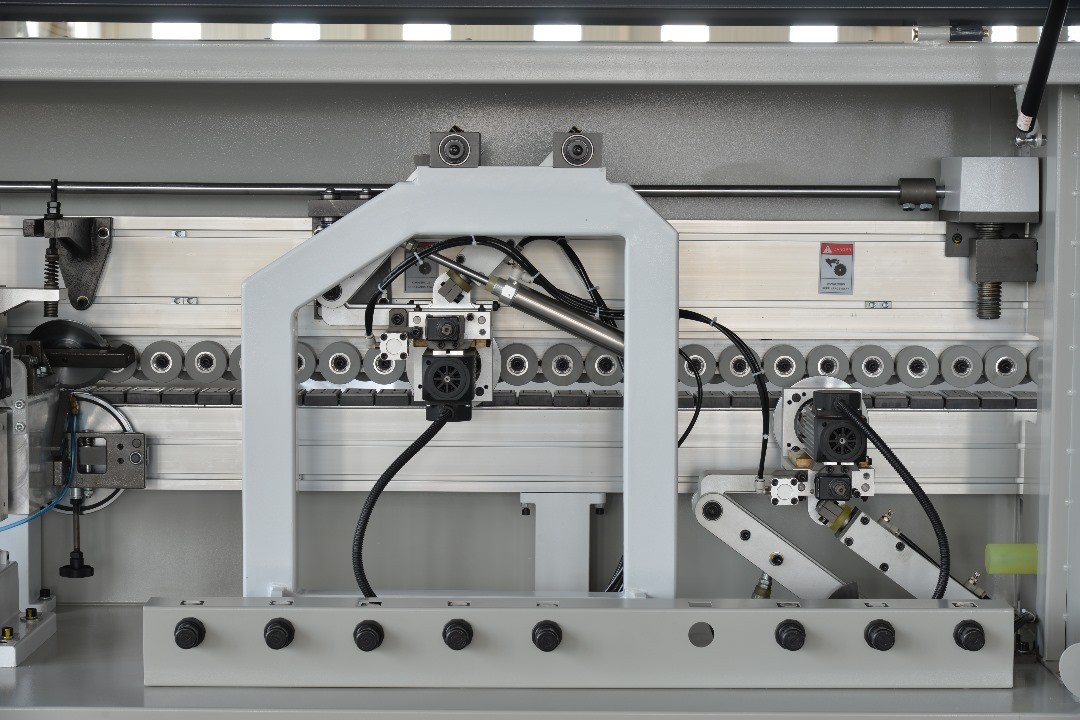

- Radial scraper unit
- Glue scraper unit
- Polishing unit with a set of cleaning liquids and an automatic lubrication system.
