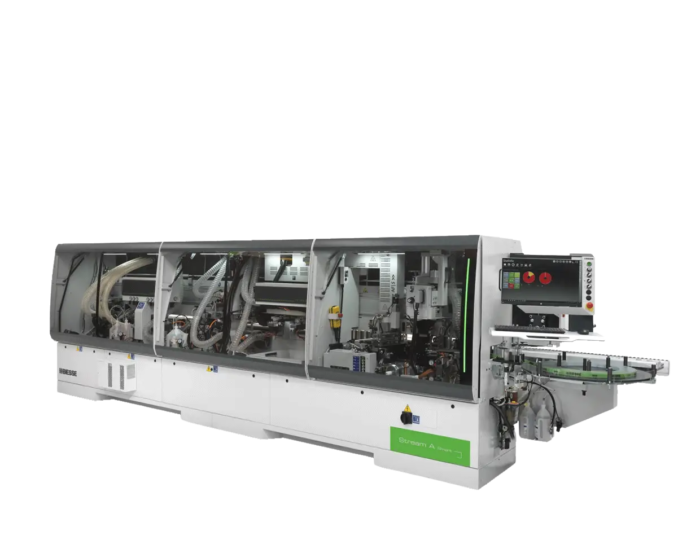

EDGE BANDING BIESSE STREAM A 5.5 SMART
Brand: Biesse
A single-sided edge banding machine for applying and processing edge bands in rolls (melamine, PVC, ABS, veneer) and strips (solid wood, Formica, planed veneer, etc.)
Technical features and options
- Board height: from 10 to 60 mm,
- Edge height: from 14 to 64 mm,
- Edge thickness (from roll): from 0.4 to 3 mm,
- Edge thickness (in strips): from 0.4 to 12 mm,
- Panel overhang from the track: 25 mm,
- Minimum panel length: 140 mm,
- Maximum panel length: 3200 mm,
- Minimum panel width (with length 140 mm): 85 mm,
- Minimum panel width (with length 250 mm): 50 mm,
- Feed speed: 12 – 18 – 20 –25 m/min,
- Gap between panels: from 350 to 650 mm,
- Dust extraction for each working unit: 1 nozzle Ø 100 mm,
- Pneumatic connection: 7 bar,
- Operating voltage: 400 V / 50 Hz Three-phase + neutral,
- Control voltage: 24 V / 50 Hz,
- Static frequency converter, inverter: 200 Hz,
- Glue tank capacity: 2 kg (approx.),
- Glue tank heating time (filled to 50%): 10 minutes.
* Machine with the possibility of configuration.
